HV ELECTRICAL SYSTEM
6
2. TYPES OF CHARGING
Normal charging (AC charging)
•
It takes about 8.5 hours at room temperature and normal operating conditions for the EV to charge from
10% to 90% with Normal Charging. The charging gun will be locked after switching on the AC supply.
Fast charging (DC charging)
•
Nexon EV can be fast charged using any fast charging station or equipment compliant to Combined
Charging System standard having Type 2 connector (CCS Type 2). It takes 60 minutes for the high
voltage battery to charge from 0% to 80% using any CCS Type 2 fast charging station. The charging gun
will be locked after switching on the DC supply.
NOTE:
•
Battery performance and durability can deteriorate if the fast charger is used constantly. Use of Fast
Charging should be minimized in order to help prolong high voltage battery life.
•
After a maximum of four fast charging cycles of battery pack, it is recommended to use Normal Charging
to achieve 100% State of Charge for optimum performance of high voltage battery pack.

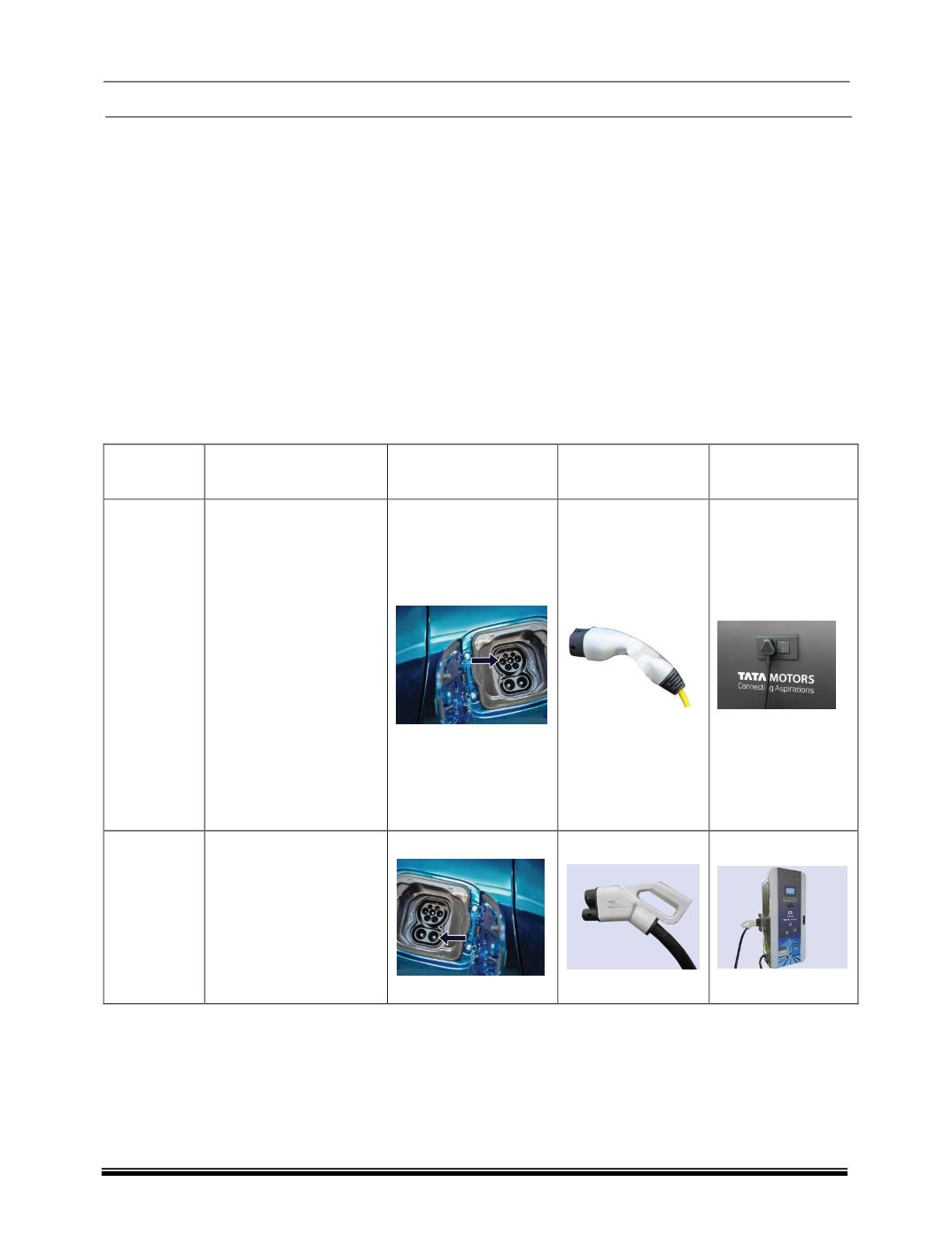

TYPRS OF
CHARGING
CHARGING
SPECIFICATIONS
CHARGE PORT
CHARGE GUN
POWER SOURCE
Normal
/
AC
Charging
•
Nominal voltage:
230 V ac RMS
Single phase, 50Hz
supply.
•
Voltage range :
•
Minimum voltage
= 190V ac RMS
•
Maximum voltage
= 250V ac RMS
•
Power rating = 3.3
kW ac RMS
•
Rated current 16A
ac RMS.
•
3 pin wall socket
Fast / DC
Charging
•
Nominal
voltage:
320V DC.
•
Charging
station
(CCS
Type
2)
voltage capability
should be greater
than or equal to
370V DC.
