HV ELECTRICAL SYSTEM
14
3. TIGHTENING TORQUES:
SR.
NO.
DESCRIPTION
FASTENER
TIGHTENING
TORQUE (Kg-m)
LOCATION

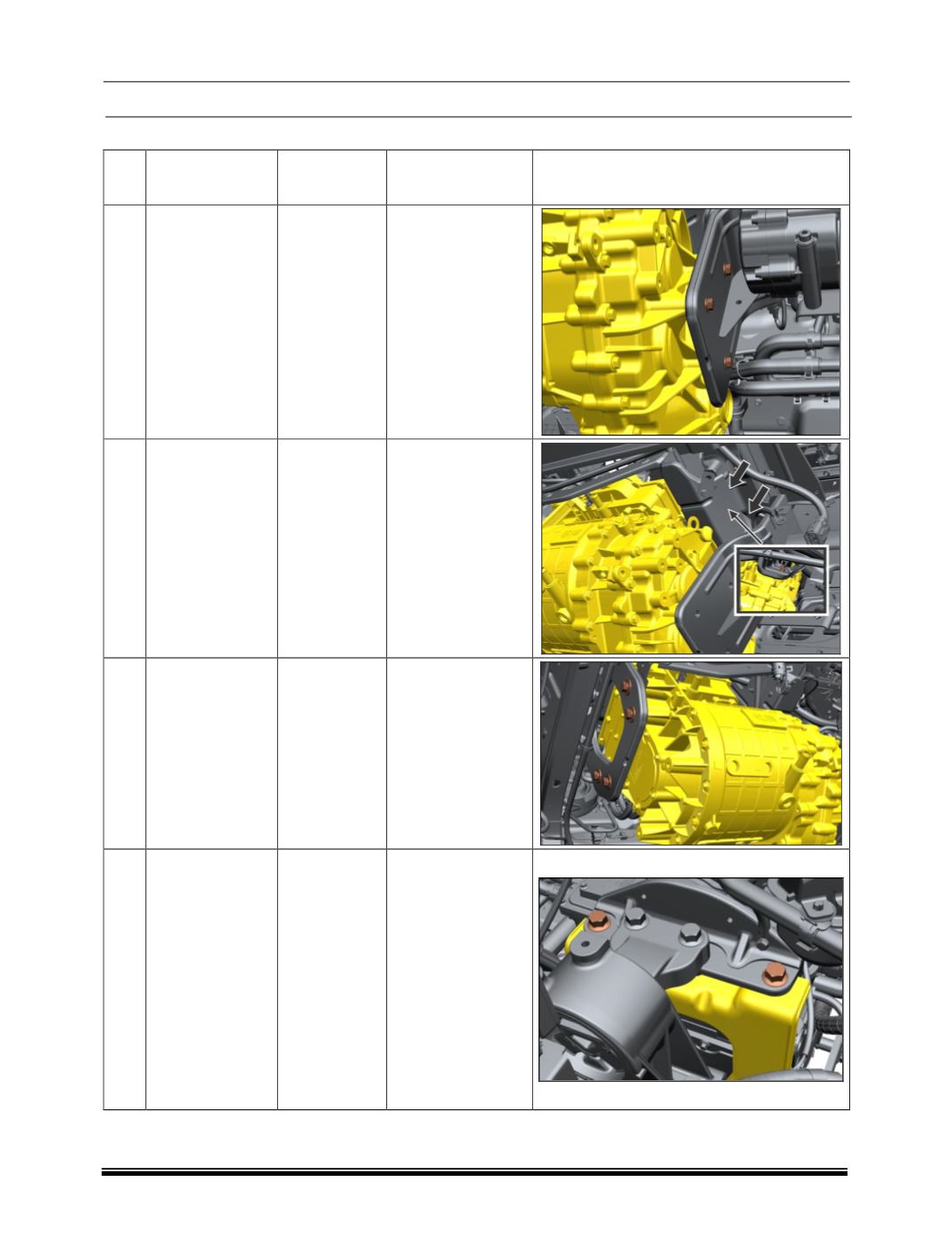

1
BRACKET LH
(MOTOR
MOUNTING
SUPPORT
M8 X 40
2.5
2
BRACKET TOP
(MOTOR MTG)
M8 X 25
2.5
3
BRACKET ASSY
RH SIDE MOTOR
MOUNT
M10X1.25X45
4.9
4
BRACKET TOP
RH SIDE MOTOR
MOUNT
M10 X 45
4.9
