SUSPENSION
40

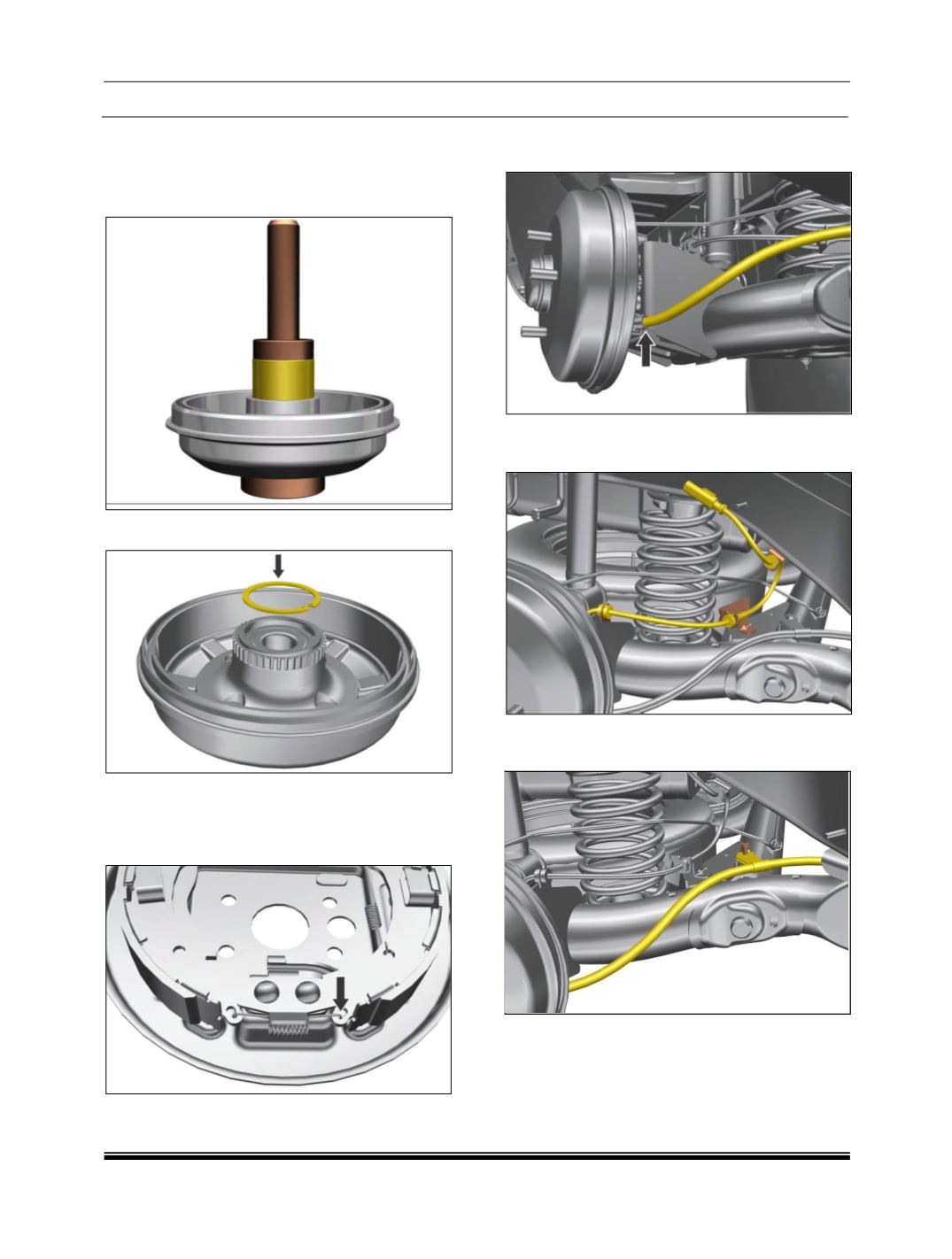

10. REAR BRAKE DRUM BEARING FITMENT
Insert the new bearing to the brake drum using
the bearing installer special tool part no (2871
5890 4202) as shown in the Figure.
10a fit the circlip
11. Detach the hand brake cable from the lever on
the trailing shoe by moving the lever towards
the centre of the brake and removing the cable
nipple from its location in the end of the lever.
12.Remove the hand brake cable holder lock pin
from the back plate
13.Remove the rear sensor cable mountings on
the twist beam axle
14.Disconnect the brake lines mounting on the
twist beam.
15.Disconnect the bundy pipe/Hose from wheel
cylinder. Remove bleed screw. Put rubber dust
