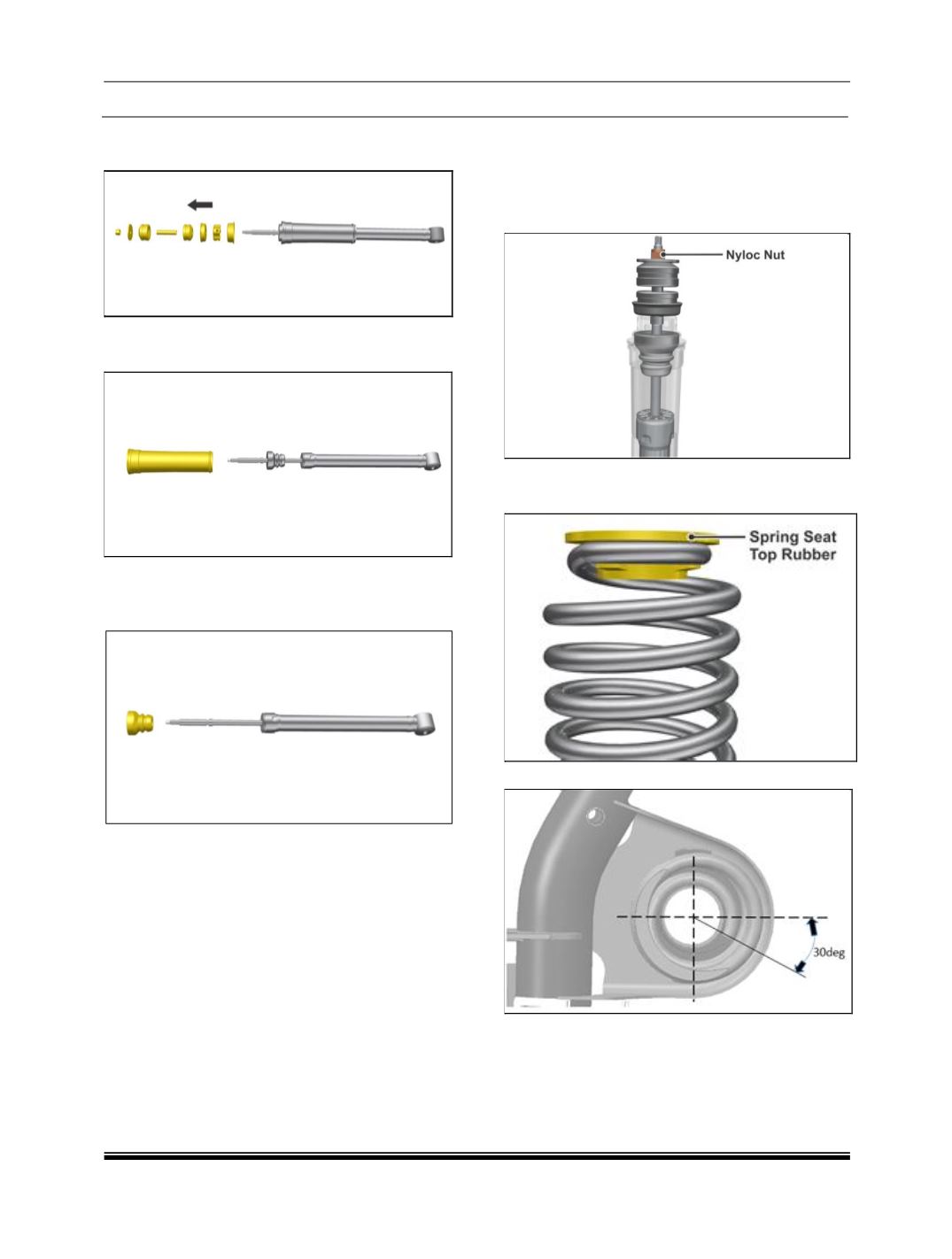

1. Remove the rubber pad and metal washer as
shown.
2. Pull the plastic cover apart.
3. Pry out the bump stopper from the shock
absorber as shown.
4. Check for any oil leakage in the shock absorber,
if any replace the unit.
Check bump stop for cracks and replace if any.
Check top rubber for cracks.
Check dust cover for damage and replace it if
any.
ASSEMBLY OF REAR SHOCKABSORBER:
1. Refit the bump stop over the shock absorber.
2. Place the metal cover and washer over it.
3. Position the rubber pad over the assembled
Unit.
INSTALLATION OF REAR SHOCK ABSORBER
AND COIL SPRINGS:
1. Refit the shock absorber top mounting
fasteners with new nylon nut in the luggage
compartment and tighten to 2.5 to 3 kgm
Torque.
2. Fit and rotate the top rubber with the coil spring.
LH Spring Orientation
