SUSPENSION
38

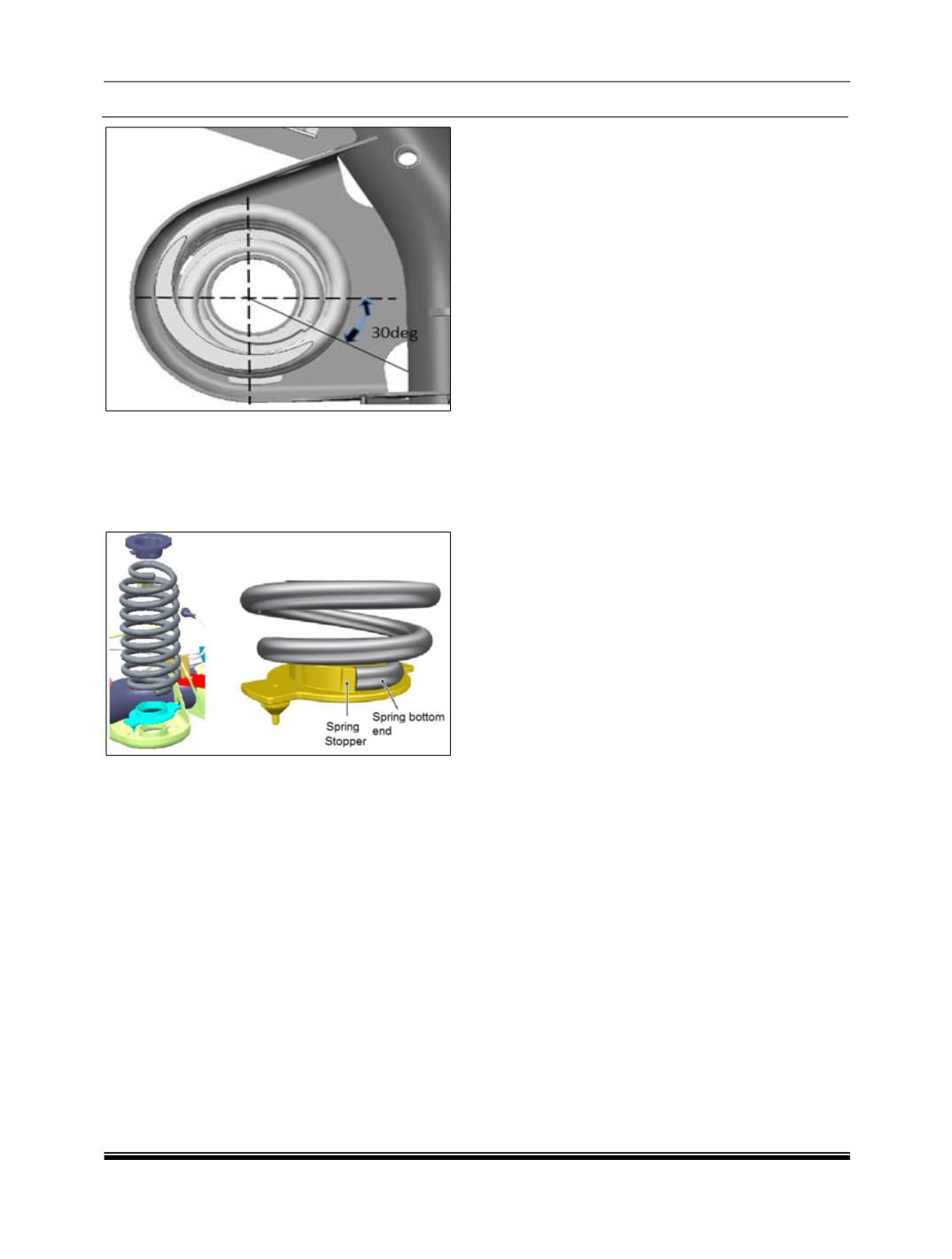

RH Spring Orientation
3. Position the spring bottom rubber pad is to fixed
to twist beam in two holes. Spring to be oriented
such that end rest and against the stopper of
bottom rubber pad.
4. Raise the torsion beam using hydraulic jack so
that the coil spring gets compressed and shock
absorber sits exactly over torsion beam
properly.
5. Refit and Torque Rear Shock Absorber Bottom
Fastener.( as per torque table).
6. Refit the rear wheels.
7. Remove the Car from 2 Post Lift.
NOTE:
While fitment of damper the bottom bush to be
tighten in Preloading condition. Jacking on the
beam not to be done to avoid failure
.
