1.5L REVOTORQ BS VI ENGINE

102

C. EXHAUST SYSTEM

ON VEHICLE REPAIRS

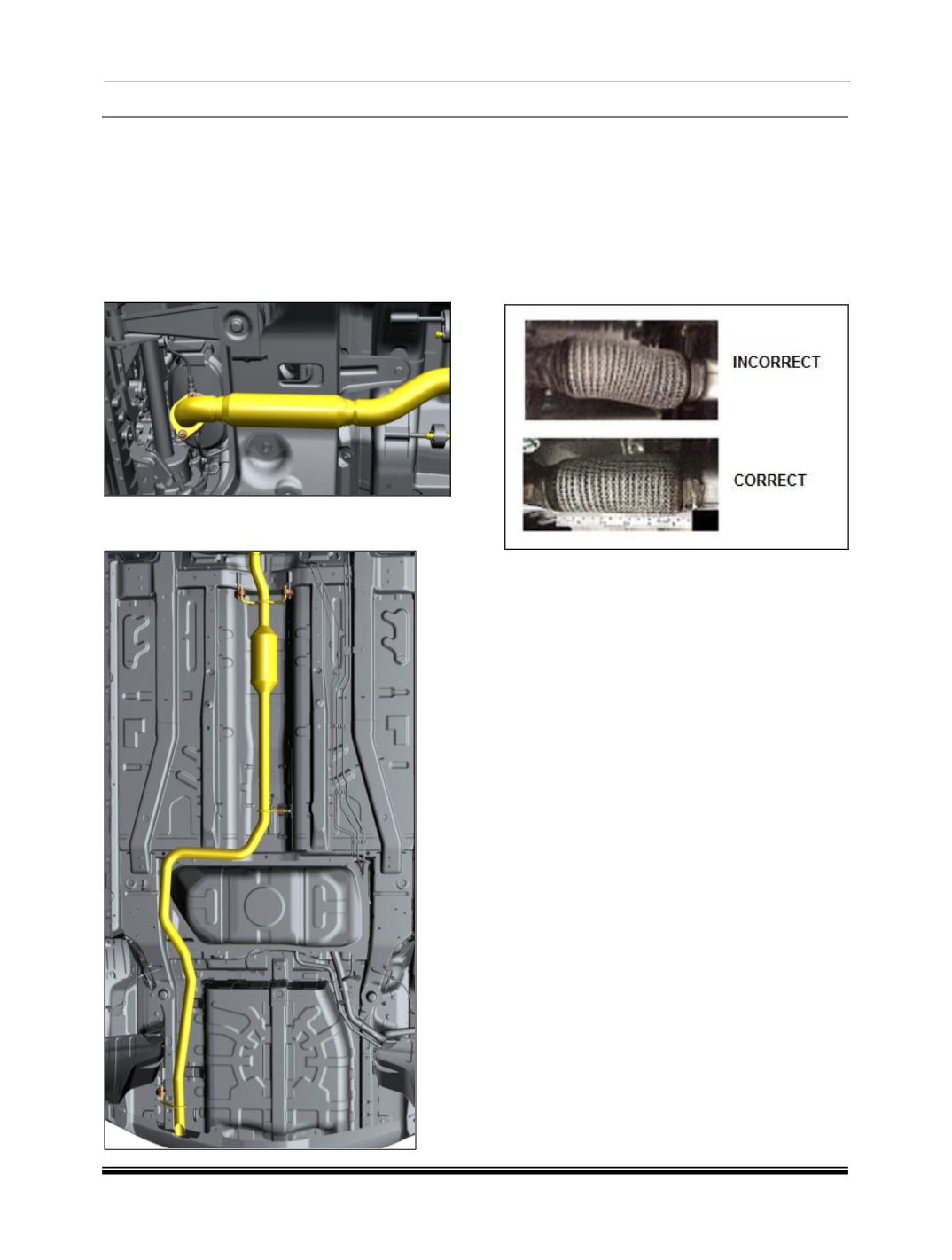

A. EXHAUST PIPE ASSY. WITH PRE-

SILENCER

REMOVAL

1. Remove the mounting nuts of the

intermediate exhaust pipe connecting to the

front end pipe and LNT+DPF.

2. Remove the rubber hangers and take out the

intermediate pipe.

FITMENT

For fitment follow removal procedure in reverse.

NOTE



Use new gaskets every time while fitment and

tighten nuts and bolts to specified torque.



Ensure

flex bellow should not be pre stress or

bend as shown in below figure & also ensure

proper orientation of rubber hangers
