1.5L REVOTORQ BS VI ENGINE
98

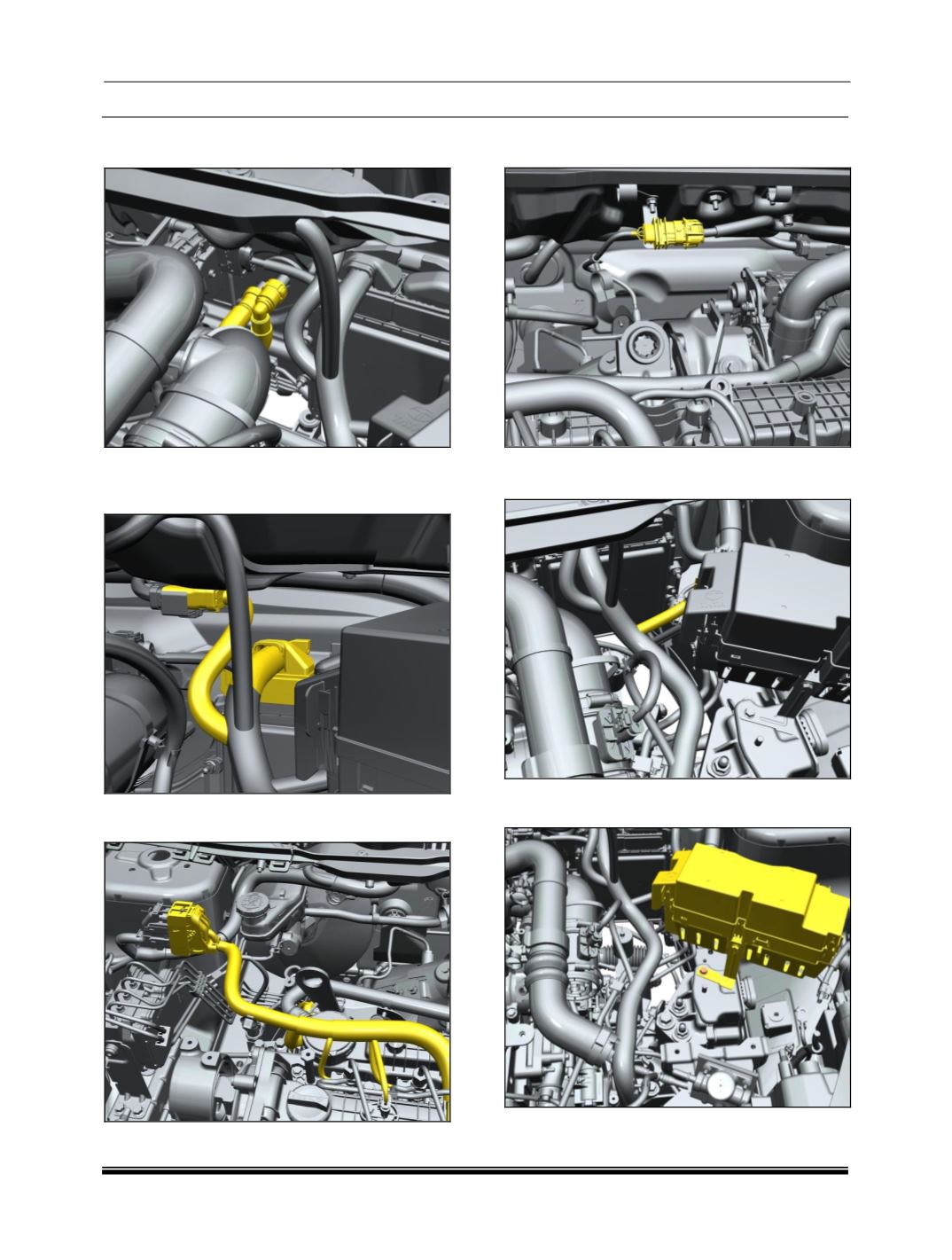

21. Disconnect the heater hoses from the HVAC
unit.
22. Disconnect the Engine wiring harness
connection with ECU and main wiring
harness.
23. Disconnect engine wiring harness from the
front wiring harness.
24. Remove connector mounted on the support
bracket.
25. Disconnect engine wiring harness to fuse
relay box.
26. Remove the mounting bolt and set fuse box
aside.
