1.5L REVOTORQ ENGINE
56
v. FUEL FILTER REPLACEMENT
WARNING
If diesel leakage is detected, do not start the
vehicle or allow an open flame or spark near
the vehicle. Have the fuel leak repaired
immediately.
The fuel system is under pressure. Relieve
fuel system pressure before replacing the filter
DESCRIPTION

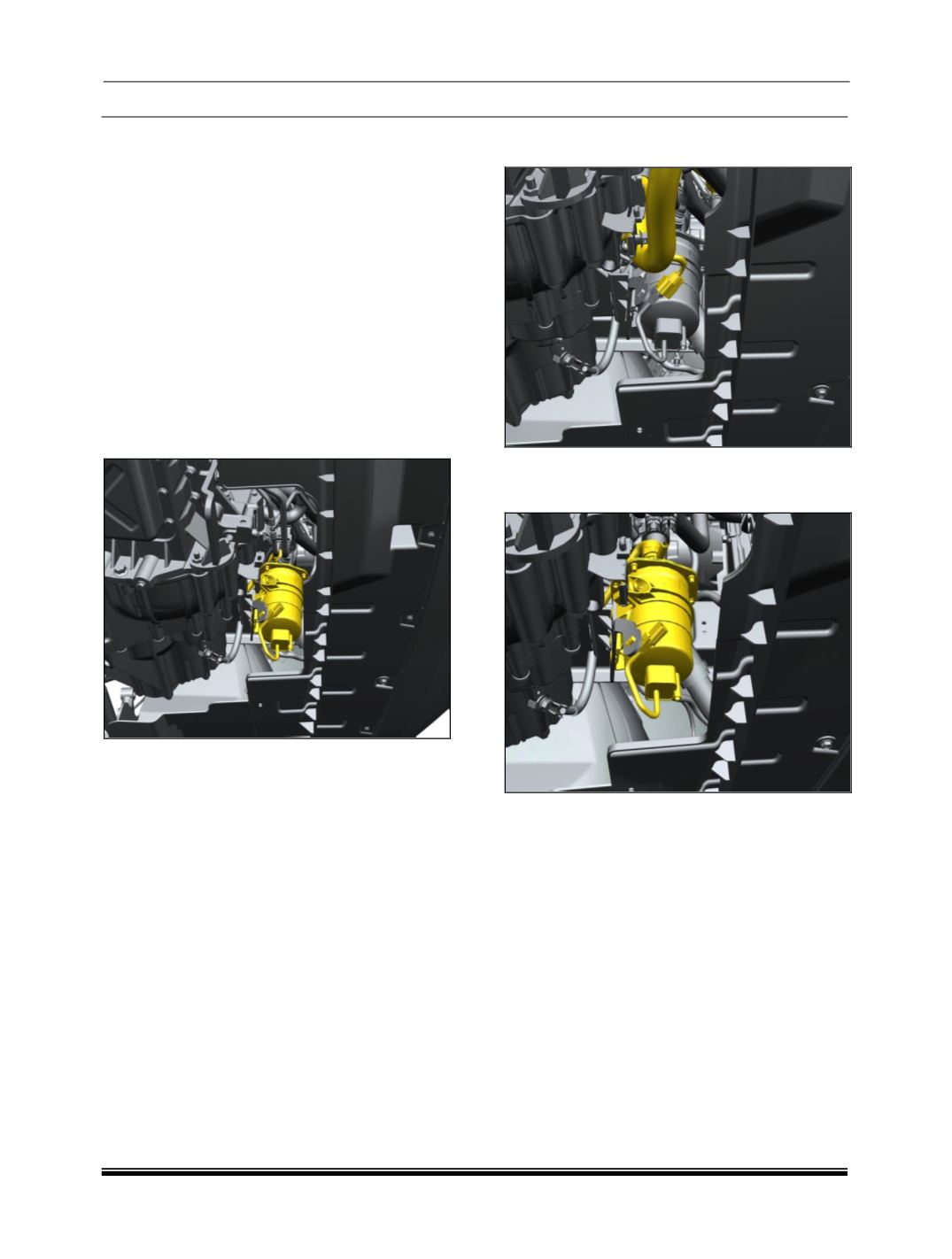

The fuel filter is mounted on transaxle on the front
side in the vehicle. A band clamp secures the fuel
filter in place. Replace the fuel filter as per
service schedule. When the vehicle is operated in
adverse conditions or where fuel quality is
questionable, more frequent replacement may be
necessary.
REMOVAL
1. Relieve fuel system pressure by removing the
power supply to the system fuel pump and
cranking the engine.
2. Disconnect the negative (-) battery cable.
3. Remove the fuel line connections (Quick fit
Connectors) to the fuel filter.
4. Disconnect the electrical connection to the
fuel filter.
5. Push the fuel filter in upward direction and
take it out from the groove in mounting
bracket.
INSTALLATION
1. Place the fuel filter in the mounting bracket.
Be sure to orient the fuel filter in the proper
direction.
2. Press the fuel filter in downward direction and
fit it on the groove in mounting bracket.
3. Connect the fuel lines to the filter, making
sure the lines are secure.
4. Lower down the vehicle from hoist
5. Start the engine and inspect the connections
for leaks. Stop the engine immediately and
repair if any leaks.
