1.5L REVOTORQ ENGINE
55

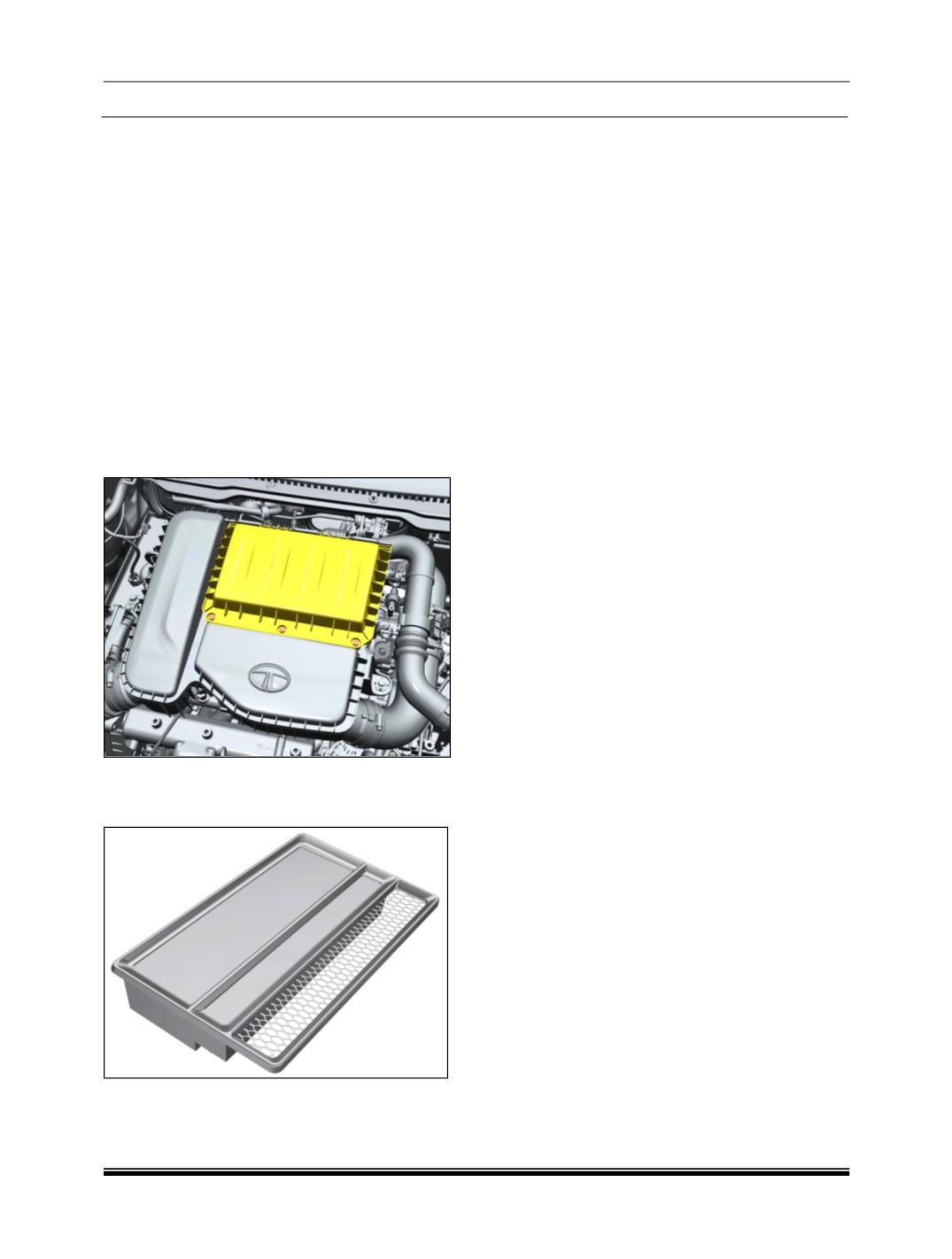

iv. AIR FILTER ELEMEMT REPLACEMENT
DESCRIPTION
Proper maintenance of the air filter is essential
for vehicle performance and fuel economy. The
air filter element removes foreign material such
as dust, dirt, and other material from the
intake air, thereby preventing the engine from
damage due to contaminated air.
Inspect and clean the air filter element at every
routine service. Replace the air filter element as
per service schedule.
REMOVAL
1. Park the vehicle on a level surface, engage
the parking brake, and raise the hood.
2. Unscrew the top three mounting bolts of air
filter assembly & one locator point at back
side.
3. Detach the cover through hinge action, with
clamp and snorkel intact with cover.
4. Remove the air filter element.
5. Gently tap loose any dirt or debris from the
filter. Clean the housing and air ducts as
well. Take care not to allow dirt and debris to
enter the air inlet to the engine.
INSPECTION
1. Hold the air filter element up to a light
source. Light should be visible through the
element. There should be no holes or tears
in the element.
2. The filter can also be cleaned using low
pressure compressed air.
3. Replace the filter element if torn or light is
not visible through the filter.
INSTALLATION
1. Place the air filter element.
2. For re-assembling the cover, please ensure
that all the hinge lugs are properly assembled
in the slot of the air filter housing body, before
tightening the screws.
