BODY
40
FITMENT

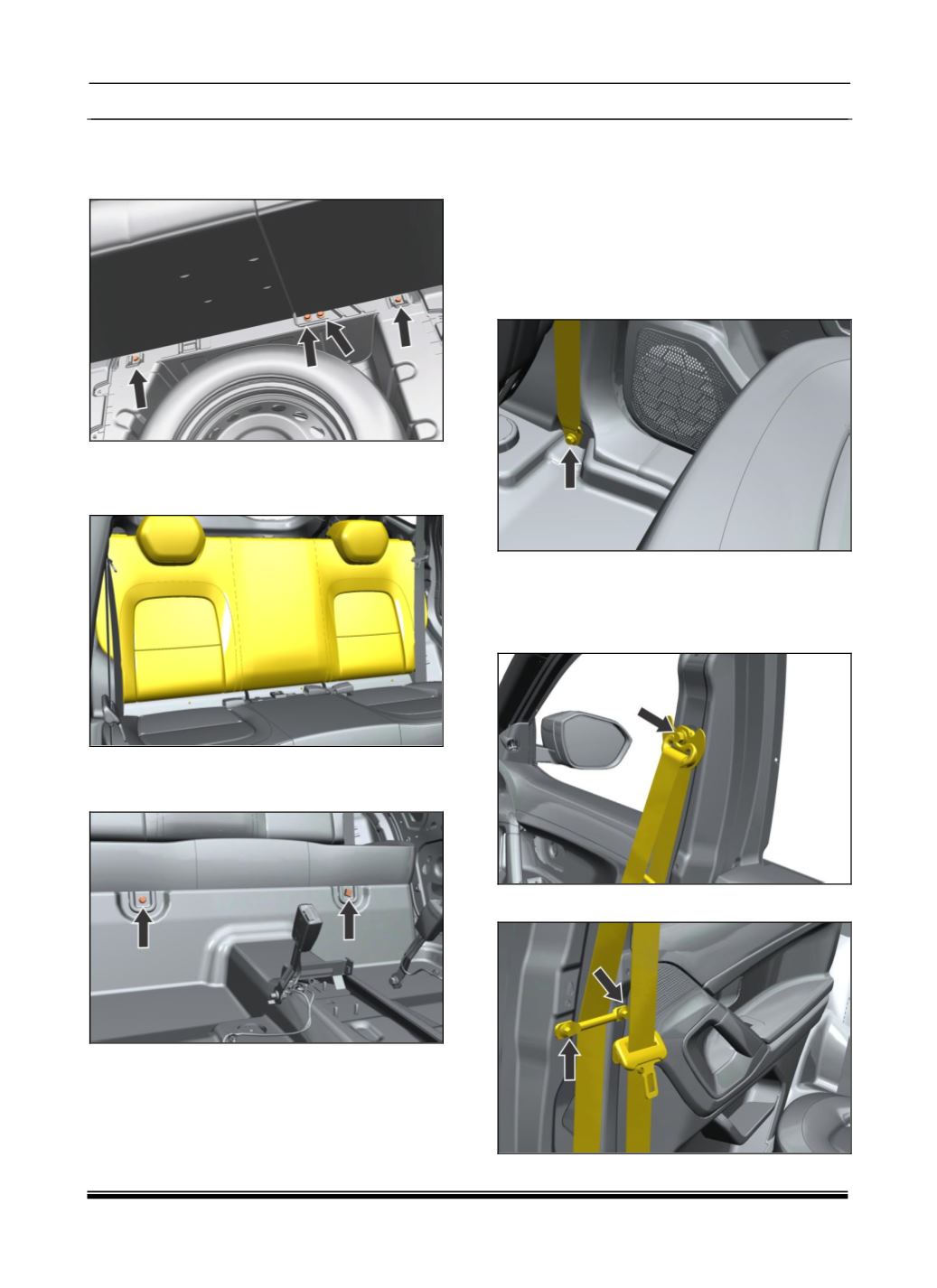

1. Fit rear seat backrest side bracket mounting
fasteners from both side.
2. Lift the backrest and apply force from center,
such that both the latches are mounted firmely
to striker provided in the body.
3. After latching tight the striker screws.
4. Fit Rear Seat mounting screw.
NOTE
Lift the belts and buckle while cushion folding to
design position
1.4.25 FRONT SEAT BELT
FOR RETRACTOR PRETENSIONER LOAD
LIMITER (RPLL)
REMOVAL
1. Fold the front seat to have easy access for the
belt removal.
2. Loosen and remove the lower mounting bolt of
seat belt.
3. Remove lower “B” pillar trim. (For procedure
refer “B” pillar trim removal procedure in Body
section.)
4. Remove front seat belt anchor mounting bolt.
5. Remove front seat belt mid mounting bolts
