6F33 TRANSAXLE
36

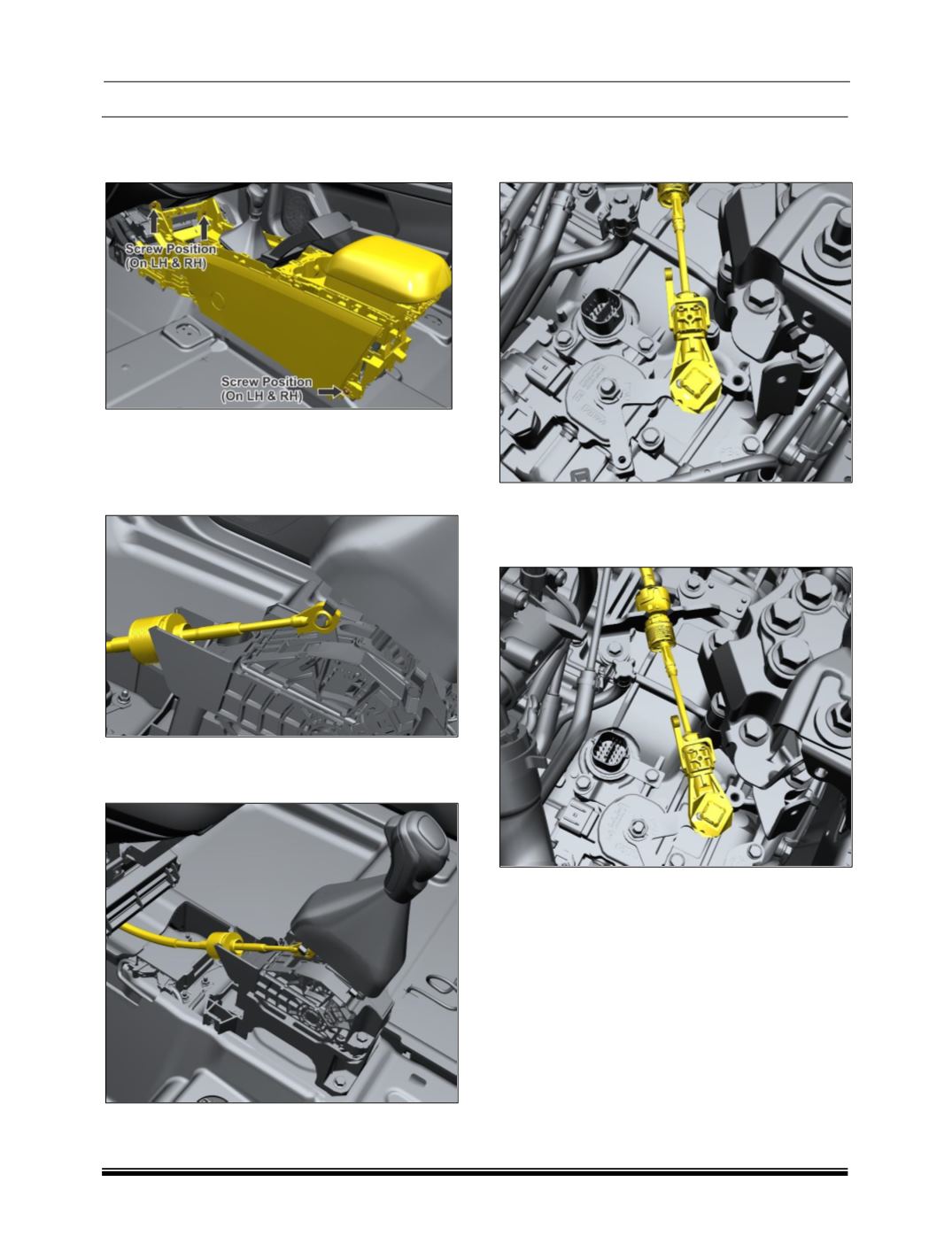

13.Remove 4 screws on IP & 2 screws on GS
Bracket of Main console structure Assembly with
PEPS antenna & wiring harness.
14.Smoothly disengage the shifting cable end from
cylindrical pin of Gear shifter housing select
lever.
15.Disengage the gear engagement cable end from
the gear shifter housing.
16.Smoothly release the shifting cable by pulling out
spring loaded conduit from Gear shifter housing
“U” slot.
17.Smoothly disengage shift cable adjustor
assembly from shift lever Ball pin at Transaxle
side. Ensure shift lever is in Neutral (N) Mode.
18.Smoothly remove the gear shifting cable from
Anchoring bracket by pulling back the spring-
loaded conduit and lifting the cable out of U slot
of anchoring bracket.
