309 / 745
6F33 TRANSAXLE
41

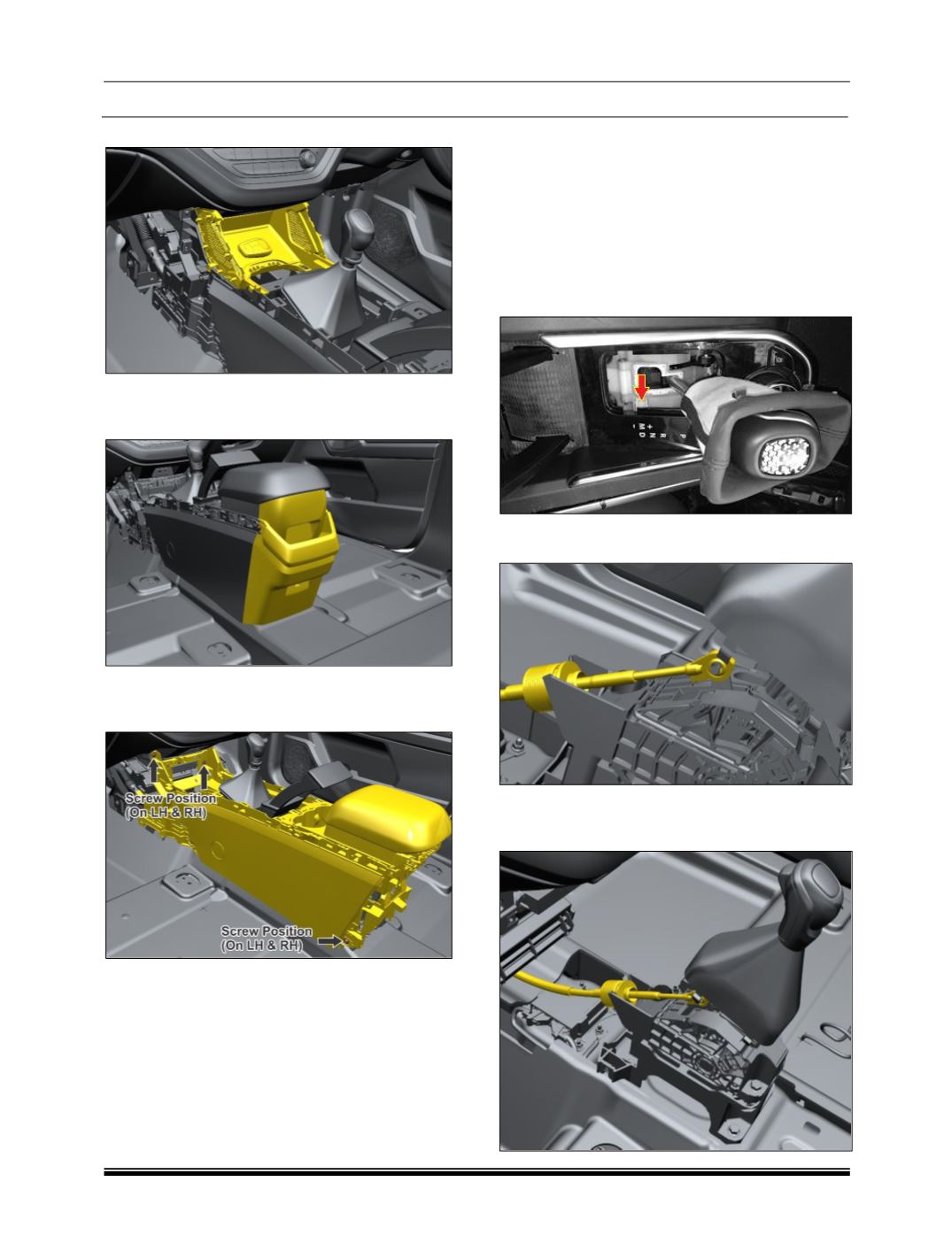

7. Remove Console Lower trim Assembly.
8. Remove two screws & six trim clips & take out
Console Rear Storage Assembly with Auxiliary
USB.
9. Remove 4 screws on IP & 2 screws on GS
Bracket of Main console structure Assembly with
PEPS antenna & console wiring harness.
10.Ensure the GSL shift lever is placed in “N” Mode
(Neutral Mode). Smoothly disengage the shifting
cable end from cylindrical pin of Gear shifter
housing select lever.
Warning:
If vehicle is in ignition-off condition, and Gear shift
lever stuck in P mode (Park Mode). Press and hold
the release button provided on shifter housing till
you move the shifter from P (park) mode to N(
Neutral) mode.
11.Disengage the gear engagement cable end from
the gear shifter housing.
12.Smoothly release the shifting cable by pulling out
spring loaded conduit from Gear shifter housing
“U” slot.
