6F33 TRANSAXLE
19

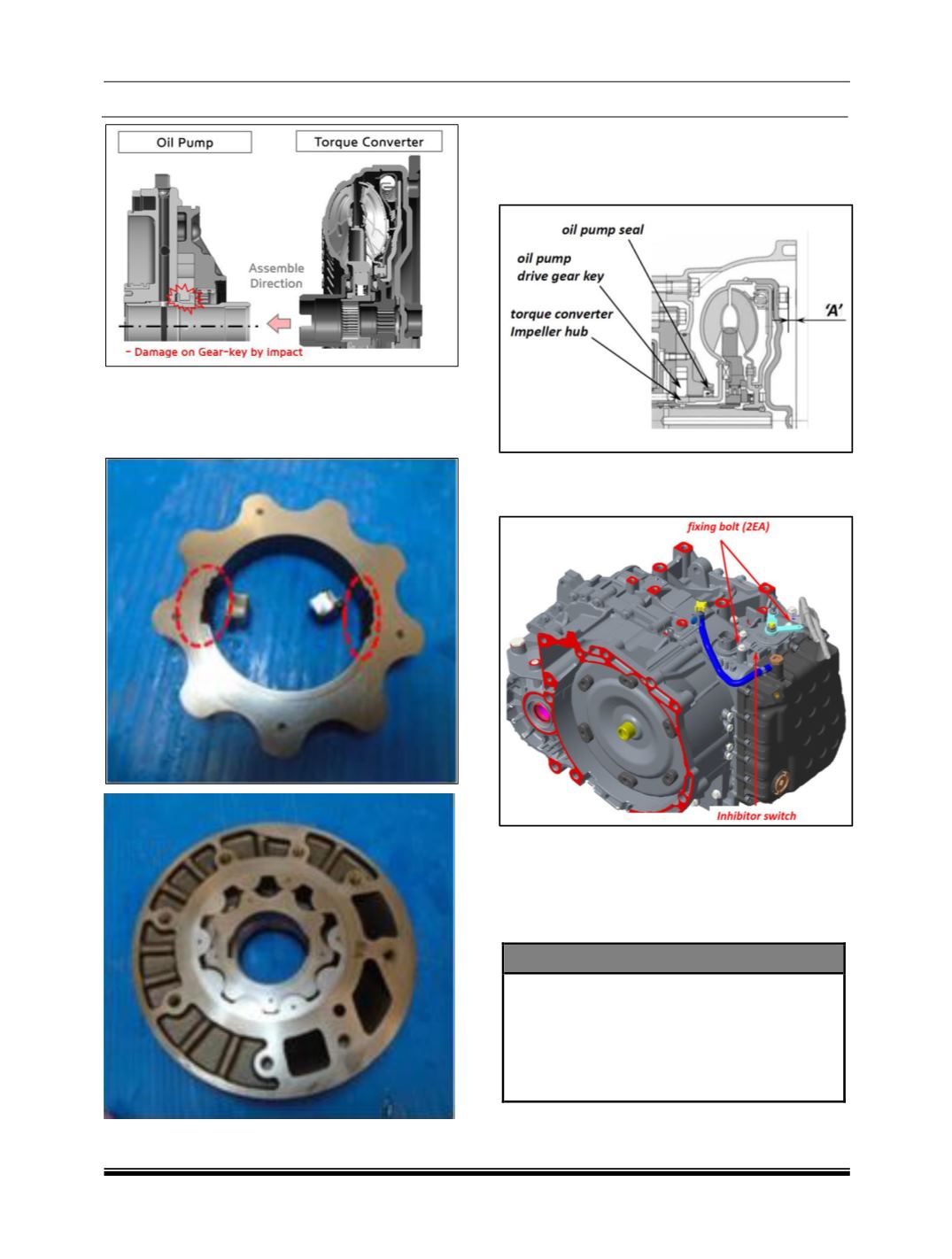

To prevent the damage on Torque converter assy
and oil-pump key and safety accident, technician
should be carefully watched during docking
process.
Damaged Oil Pump Key
3. Using a measuring apparatus, such as ruler,
measure check a dimension ‘A’ between
Converter-housing front surface and the Lug-
boss of torque converter assembly
Dimension ‘A’: 19.9mm
B. INHIBITOR-SWITCH ASSEMBLY
1. Install the inhibitor switch smoothly.
2. Tighten the fixing bolt loose-fitting.
3. Adjustment of ‘N’-range setting to be required.
(See the Adjustment method of Inhibitor switch)
CAUTION
Never reuse fixing bolt.
Fixing bolt part should be replaced with new
part.
Center line of inhibitor switch center hole and
manual shaft should be aligned.
REMOVAL
Removal is the reverse of installation
