6F33 TRANSAXLE
14

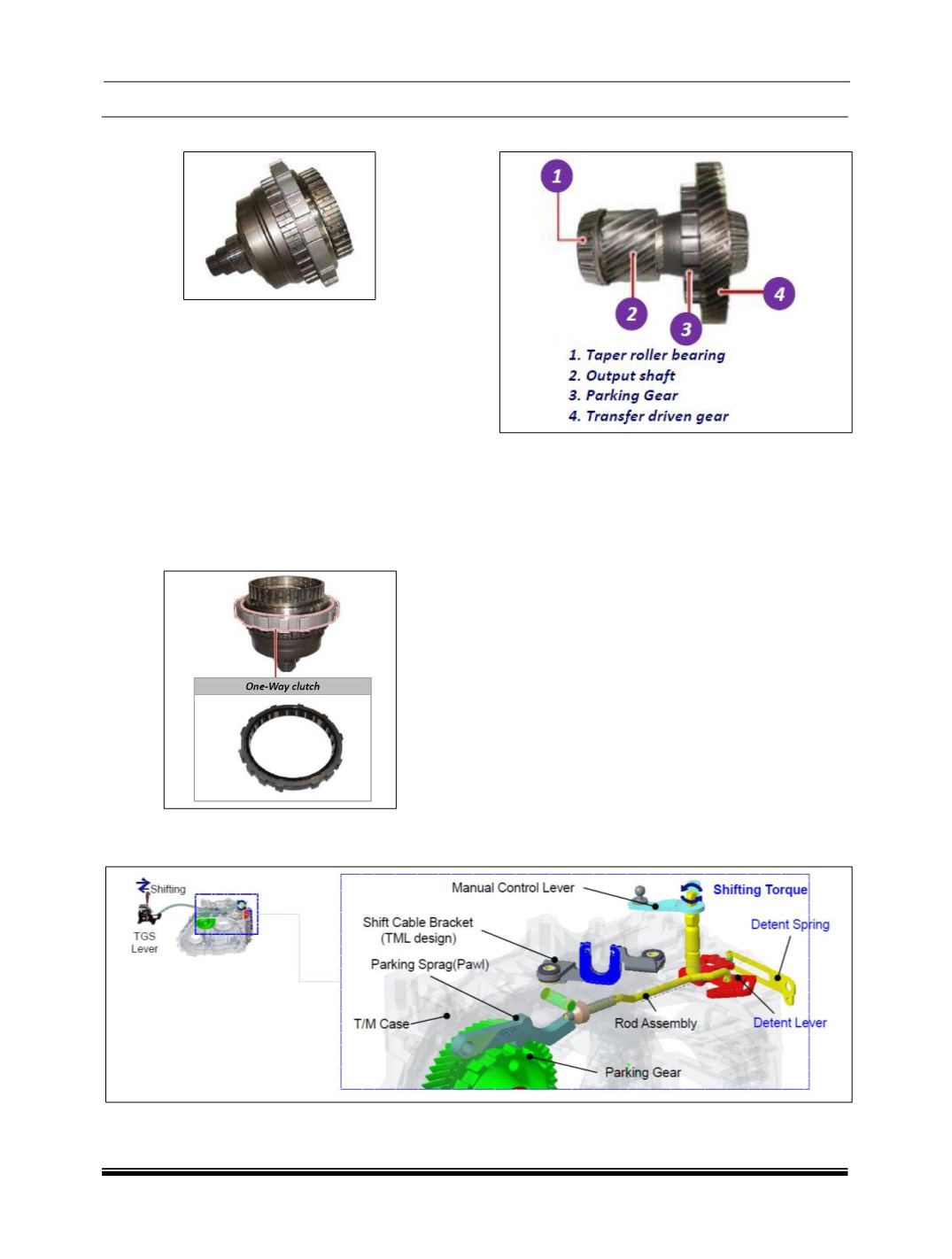

G. ONE-WAY CLUTCH OVERVIEW
The planetary gear set consists of sun gear,
planetary gears and ring gear, and all gears are
always engaged.
This makes the gear-shifting available even during
power transmitting and provides the best driving
performance in any driving conditions such as
accelerating, decelerating, forwarding, reversing
and overdriving.
ONE-WAY CLUTCH
One-way clutch in planetary gear set operates as
the power can be transferred to only one direction.
This transfers the driving power from long pinion to
the annulus gear in planetary gear set.
H. PARKING-SYSTEM OVERVIEW
Output shaft assembly transfers the power to
differential assembly through transfer driven gear.
It is integrated with the parking gear.
The parking gear is engaged with sprag by parking
rod when parking.
OPERATION OF PARKING GEAR
