TRANSAXLE TA6300
47

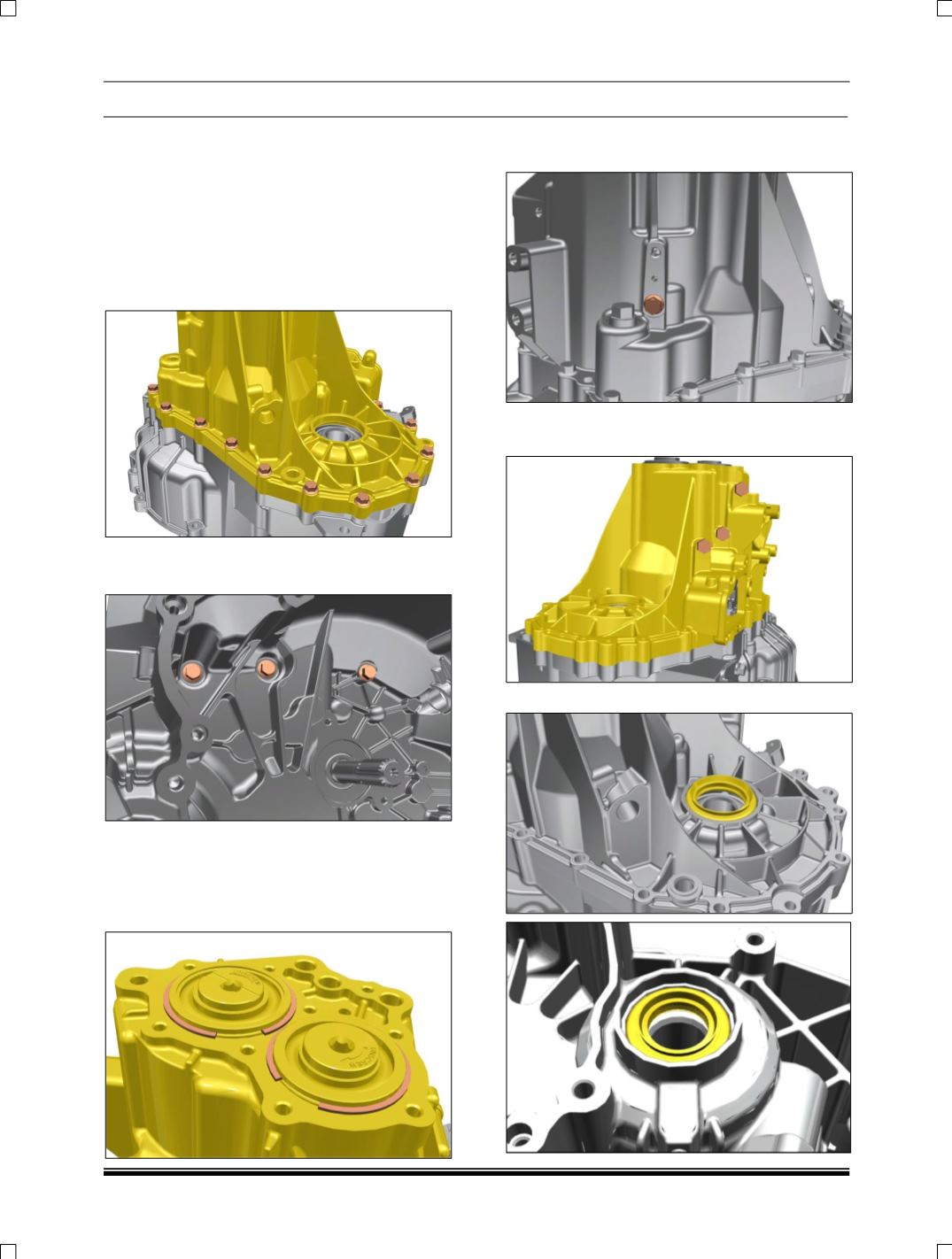

6. Apply liquid gasket (Anabond 90 or 3 bond
12S00) with proper bead size on front half /
interface.
NOTE:
Clean the front half and rear half interfaces/ so
that no cured and dried liquid gasket remained are
left on the machined surfaces.
7. Fix the housing (rear half) and tighten the
flanged mounting bolts to specified torque.
8. Assemble three Hex FL Bolt M8X45.from
inside from front housing half.
9. Assemble the housing (rear half) on lay shaft
input shaft and shifter shaft and tap it gently
and uniformly so that it gets located on lay
shaft and input shaft bearing then place snap
ring as shown
10. Assemble Hex FL bolt M8X25 for Reverse
Idler.
11. Assemble DETENT ASSY (SHIFTER SHAFT)
as shown.
12. Assemble front & rear Oil Seal.
