TRANSAXLE TA6300

45

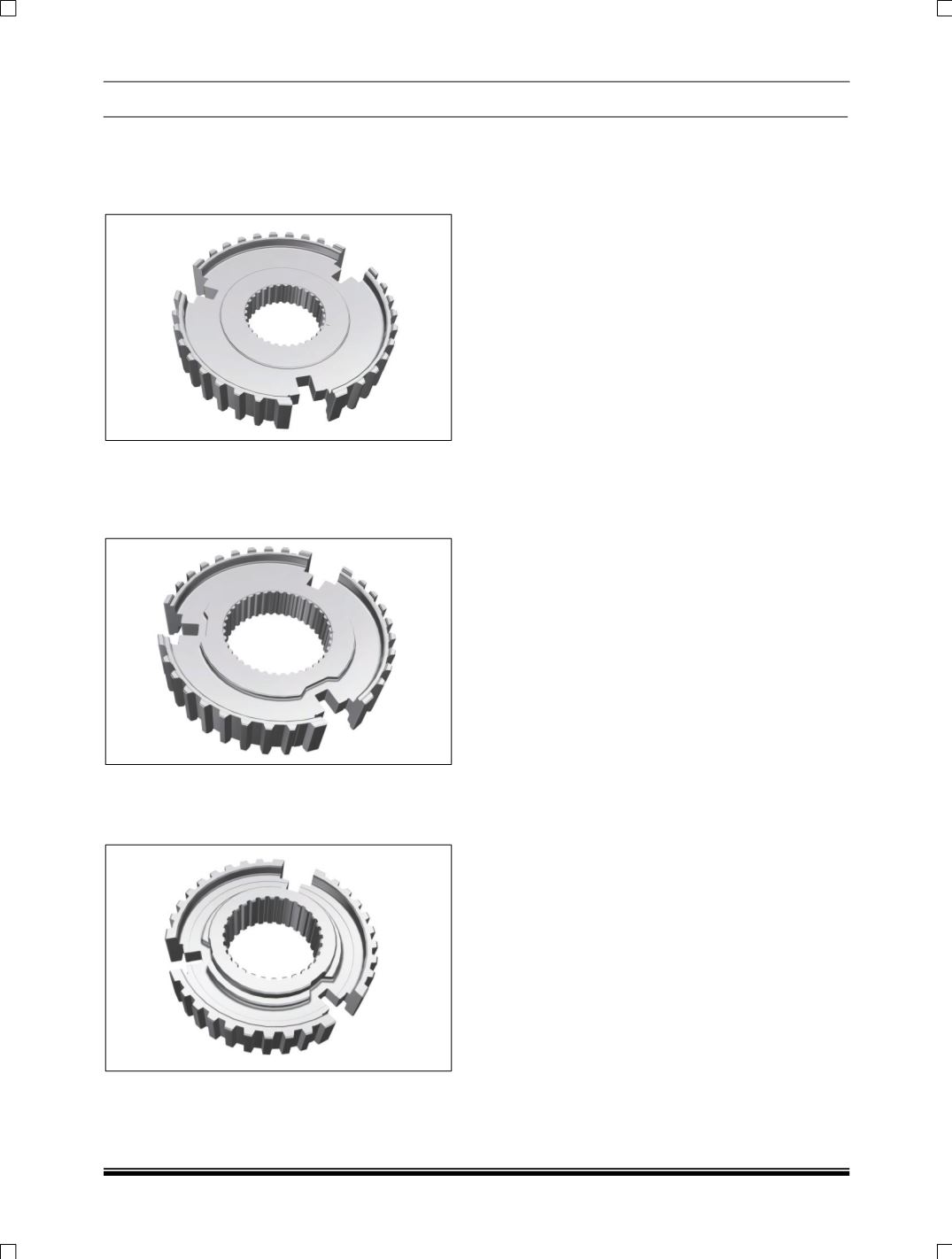

E. IDNETIFICATION

OF

ENGAGING

GEARS:

1. 5

th

& 6

th

engaging gear is having smaller dia

inner spline for fitment on Input shaft.

5

th

& 6

th

Engaging Gear

2. 3rd and 4th engaging gear is similar in size

with 5

th

& 6

th

engaging gear but having bigger

inner splines to fit on Input shaft.

3rd & 4th Engaging Gear

3. 1st and 2nd engaging gear is Fitted on Lay

Shaft.

1st & 2nd Engaging Gear
