TRANSAXLE TA6300
50

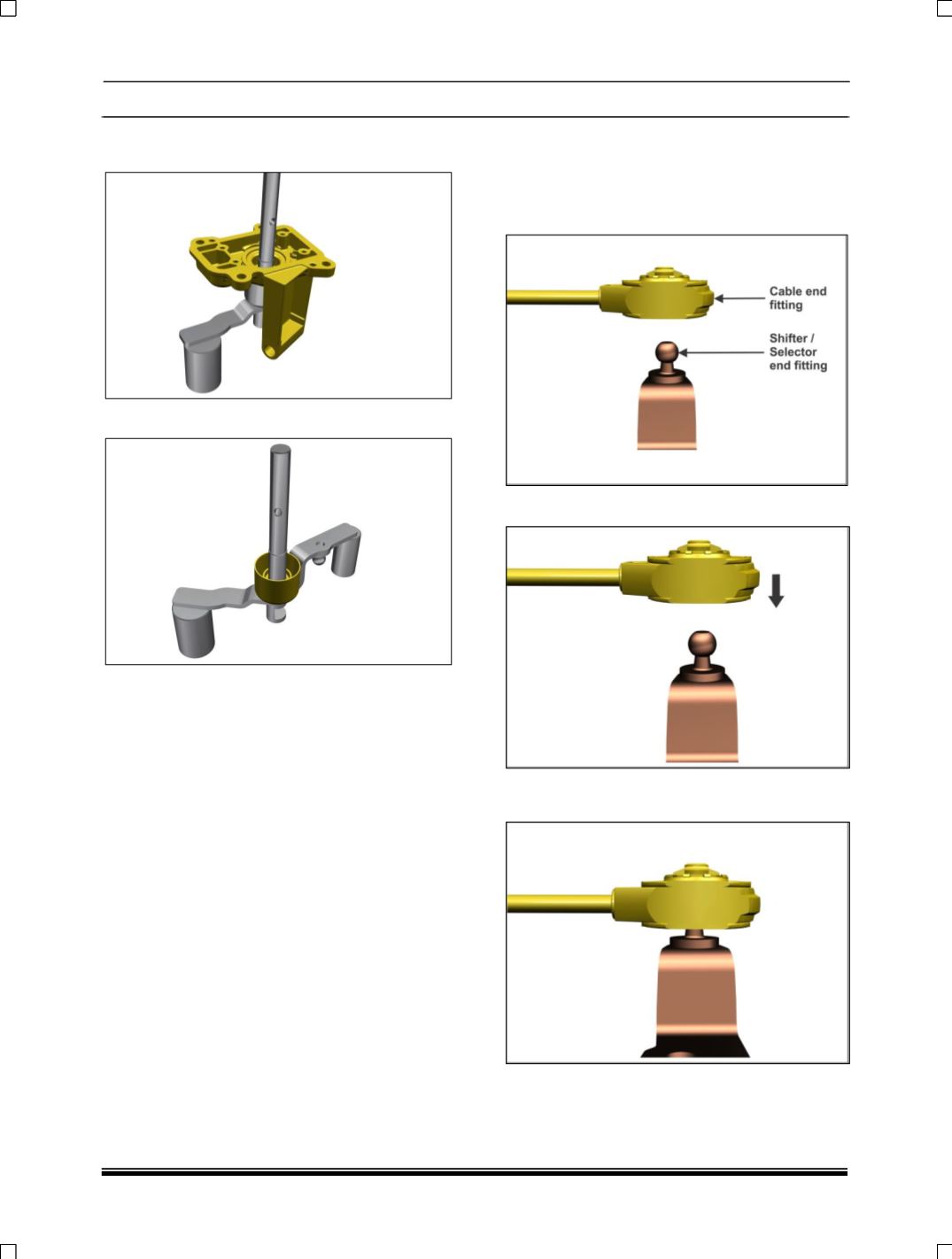

7. Pull out the top cover with bush from the
selector shaft with the help of proper Fixture.
8. Remove the dust cover with oil seal.
ASSEMBLY TOP COVER:
Follow the Reverse Procedure for asssembly.
NOTE:
Fixture to be used for bracket top cover assembly.
13.
INSTRUCTION FOR ASSEMBLY /
DISASSEMBLY
OF
CABLE
ON
TRANSAXLE:
ASSEMBLY INSTRUCTIONS:
1. Ready to Assemble.
2. Push the end fitting as shown.
3. Final assembled condition of cable end and
selector/shifter end.
