TRANSAXLE TA6300
44

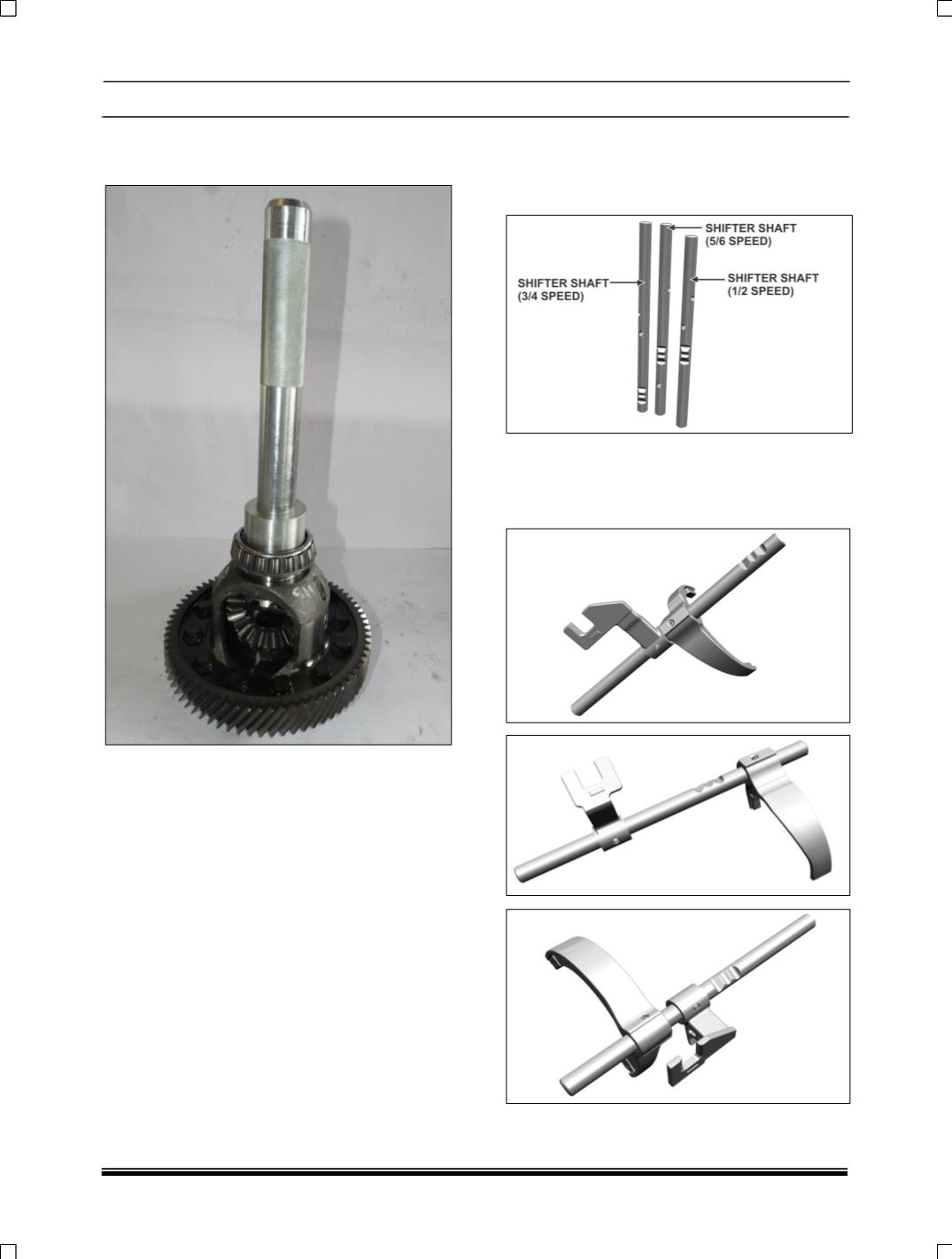

11. Press taper roller bearings inner race on
differential using Handle part no. 2640 5890
3511 & drift part no. 5412 5890 2604.
D. SHIFTER SHAFTS
1. Each shifter shaft has two holes to insert
dowel pin with notch for Fitment of shifter fork
& shifter Dog.
SHIFTER SHAFT SUB ASSEMBLY:
Gently hammer the double dowel pins of the
shifter fork after placing in vice to remove the
shifter fork from shifter shaft as marked in
