TRANSAXLE TA6300
43

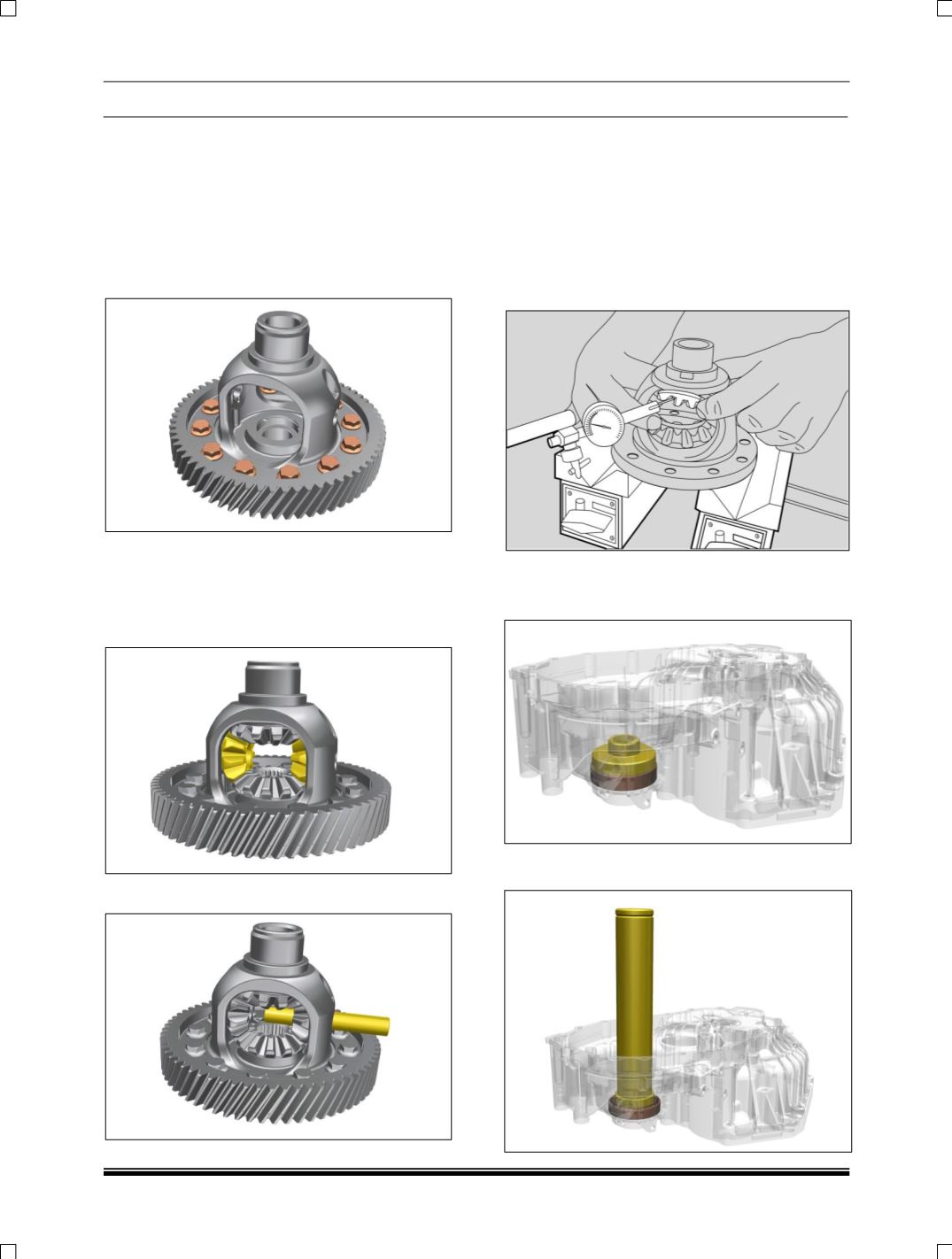

DIFFERENTIAL
ASSEMBLY:
1. Hold fixture for gear on differential casing on
soft jaw vice.
2. Mount differential housing on fixture part no.
2702 5890 2609 and lock it.
3. Place gear final drive on differential housing.
Tighten the collared bolts (12 nos.) to
specified torque of 8 to 9 mkg.
4. Place both the bevel gear on the differential
housing with spacer.
5. Place another set of idler bevel gear on the
already lifted bevel and rotate by 90° to align
the bevel to spider shaft hole.
6. Push the spider into the hole.
7. Check the free play of differential gears. It
should be 0-0.1 mm.
Note:
If the value of play is not within
specifications, then try with different thickness
washer.
8. Assemble Dowel sleeve heavy 6x40.
To check backlash, hold the two different
pinions and one side gear and check free play
or remaining side gear teeth flank.
9.
Press taper roller bearings outer race
bearing on front housing using drift part no.
2751 5890 2627.
10. Press taper roller bearings outer on front
housing using drift part no. 2751 5890 2622.
