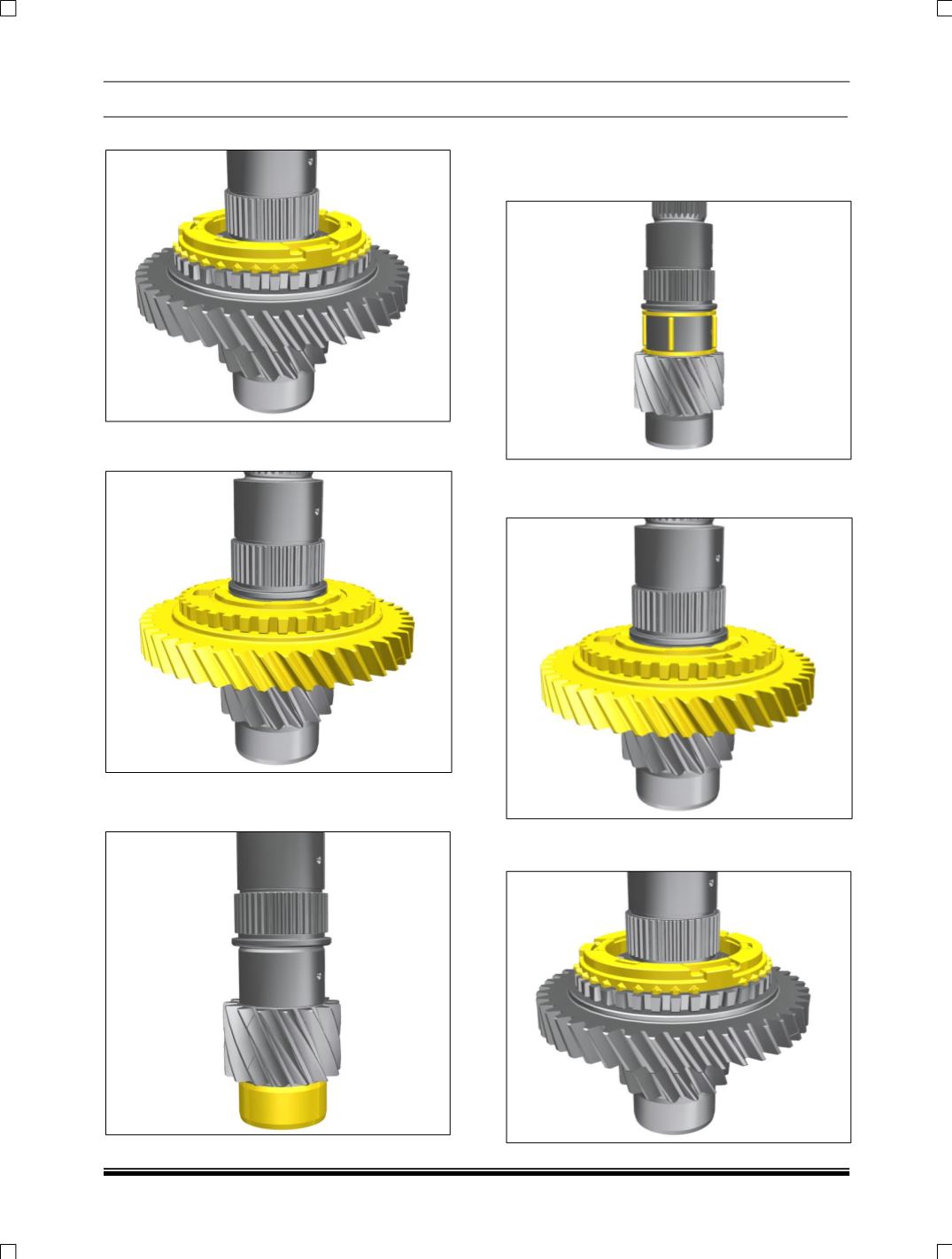

7. Take out twin cone assembly 1
st
/2
nd
.
8. Remove 1
st
gear assembly needle cage by
pulling synchronizer sleeve.
NOTE: Inner Race of cylindrical roller bearing
will be remain on lay shaft.
LAY SHAFT ASSEMBLY:
1st / 2nd SYNCHROPACK ASSEMBLY:
1. Place Needle Cage.
2. Place 1
st
gear assembly with synchronizer
ring.
3. Insert twin cone on 1
st
gear such that
intermediate cone lugs fits into 1st gear slots.
