TRANSAXLE TA6300

36

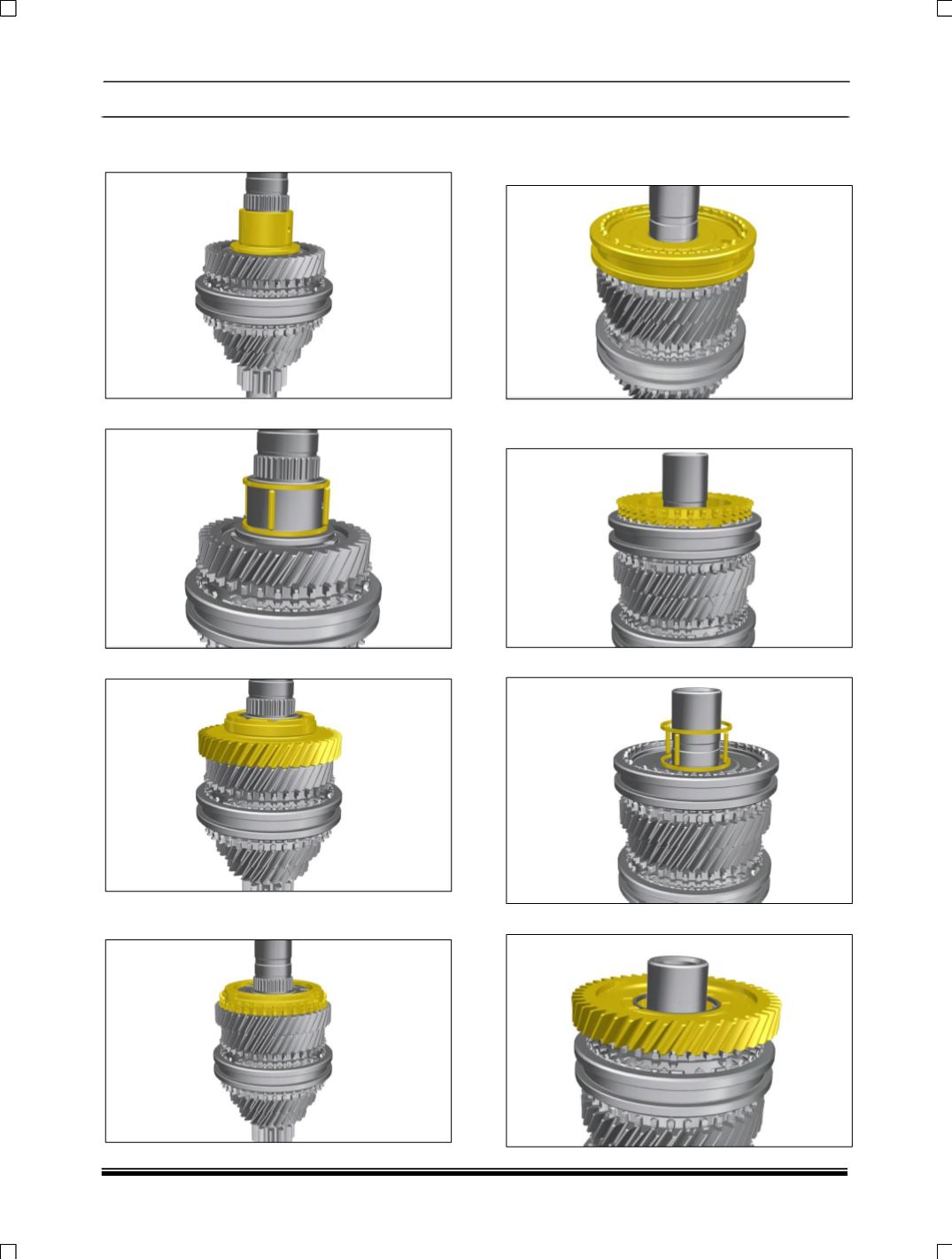

5th & 6th SYNCHROPACK ASSEMBLY:

1. Press the bush 5th gear on Input shaft.

2. Place the needle cage 5th gear on bush.

3. Place the 5th speed gear on Input Shaft.

4. Place the synchro cone (3rd /4th /5th /6th) on

input shaft.

5. Place the shifter sleeve on engaging gear 5th

/ 6th such that the smaller groove is upwards

and assemble the carriers, springs and balls.

6. Place the synchro cone (3rd /4th /5th /6th) on

input shaft.

7. Place the needle cage on input shaft.

8. Place the 6th gear on input shaft.
