1.2L REVOTRON ENGINE
94

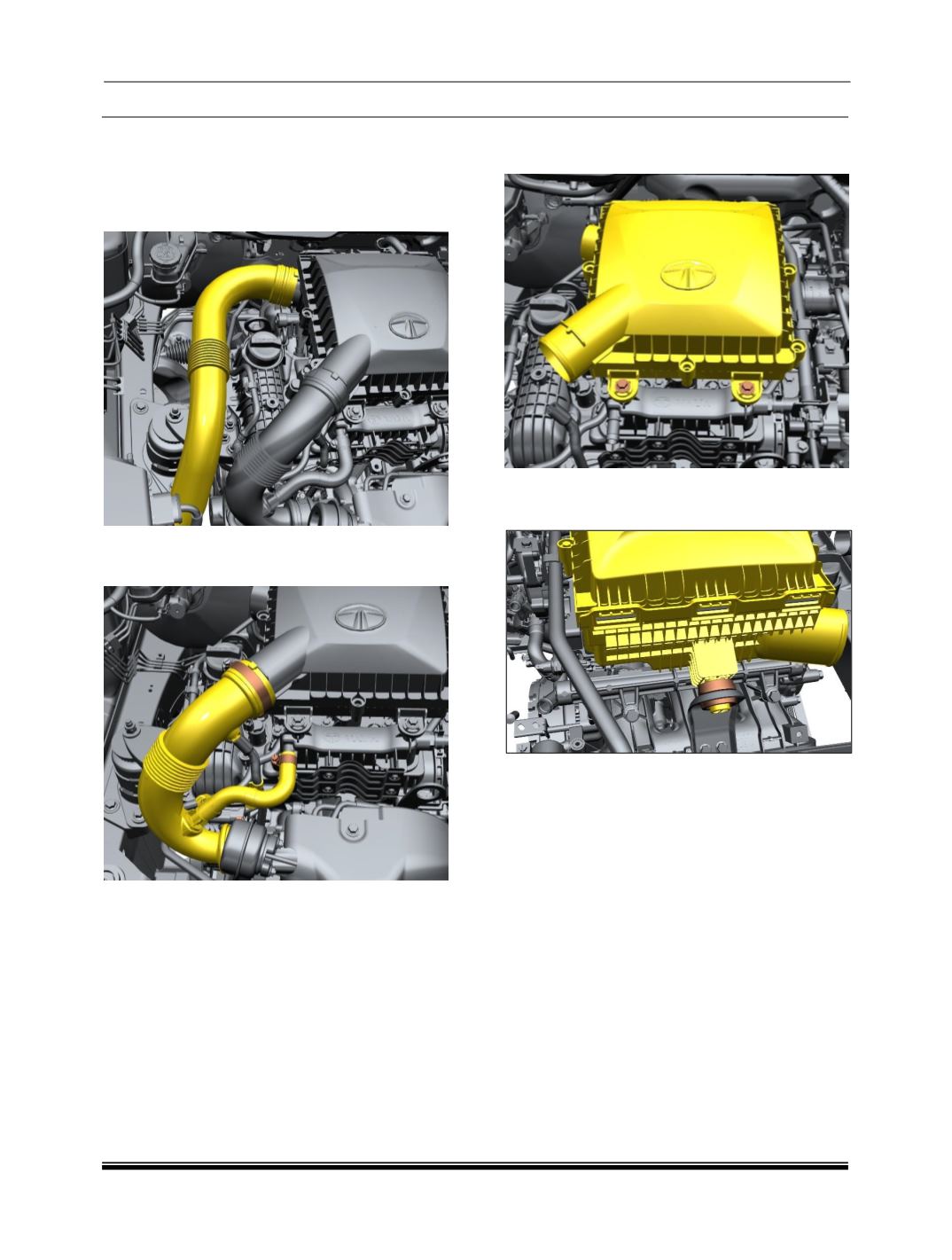

B. AIR FILTER ASSEMBLY
REMOVAL
1. Disconnect the air duct connecting snorkel to
the air filter.
2. Disconnect the hose connecting turbocharger
and the air filter.
NOTE
Hoses connecting to Air Filter to TC Hose to be
disconnected before disconnecting the AFTC
hose. (It is required otherwise AFTC hose will get
damage).
3. Remove the Air filter mounting bolts in the
front.
4. Remove the air filter from grommet in upward
direction
and remove out from vehicle.
FITMENT
For fitment follow the reverse order of removal.
