1.2L REVOTRON ENGINE
92
30. Raise the crane slightly up until very light
pressure is applied to the engine.

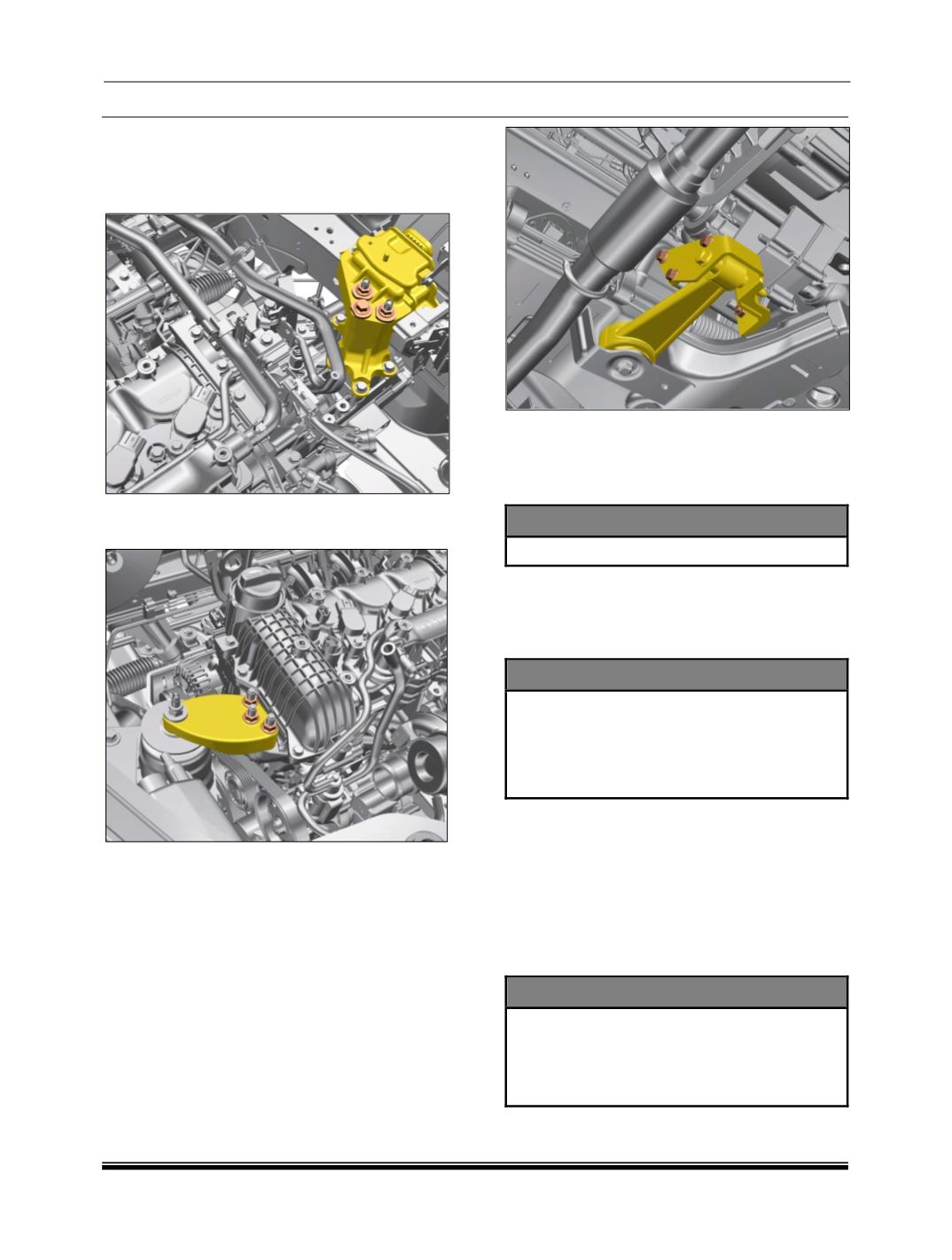

31. Remove the mounting of the Engine 'B'
mounting bracket.
32. Remove the Engine A-mount arm mounting
nuts (3 nos) from engine side.
33. Remove the Engine “C” mount by removing
the mounting bolts.
34. Now move the two post lift upwards and place
the support stand under the engine. (Use a
suitable wooden block or other support for
additional height as necessary).
SPECIAL TOOL
Engine Support stand -:
5424 5890 24 01
35. Now slightly lower the lift until engine and
transaxle assembly is securely placed / fix on
the support stand.
36. Disconnect the lifting crane from the engine.
CAUTION
Use care when raising the vehicle off the
engine and transaxle assembly. Verify all
components and electrical connections are
disconnected prior to raising the vehicle, or
vehicle damage occur.
37. Now carefully move the lift up.
38. Take out the engine and transaxle assembly
along with support stand.
39. Remove the starter motor, alternator along
with its mounting brackets.
40. Remove the transaxle from the engine.
41. Fix the LH & RH mounting brackets to the
engine.
SPECIAL TOOL
LH Mounting Bracket -:
5424 5890 24 03
RH Mounting Bracket -:
5424 5890 24 02
42. Safely lift the engine with the help of crane
and fix it on overhaul stand.
