1.2L REVOTRON ENGINE
90

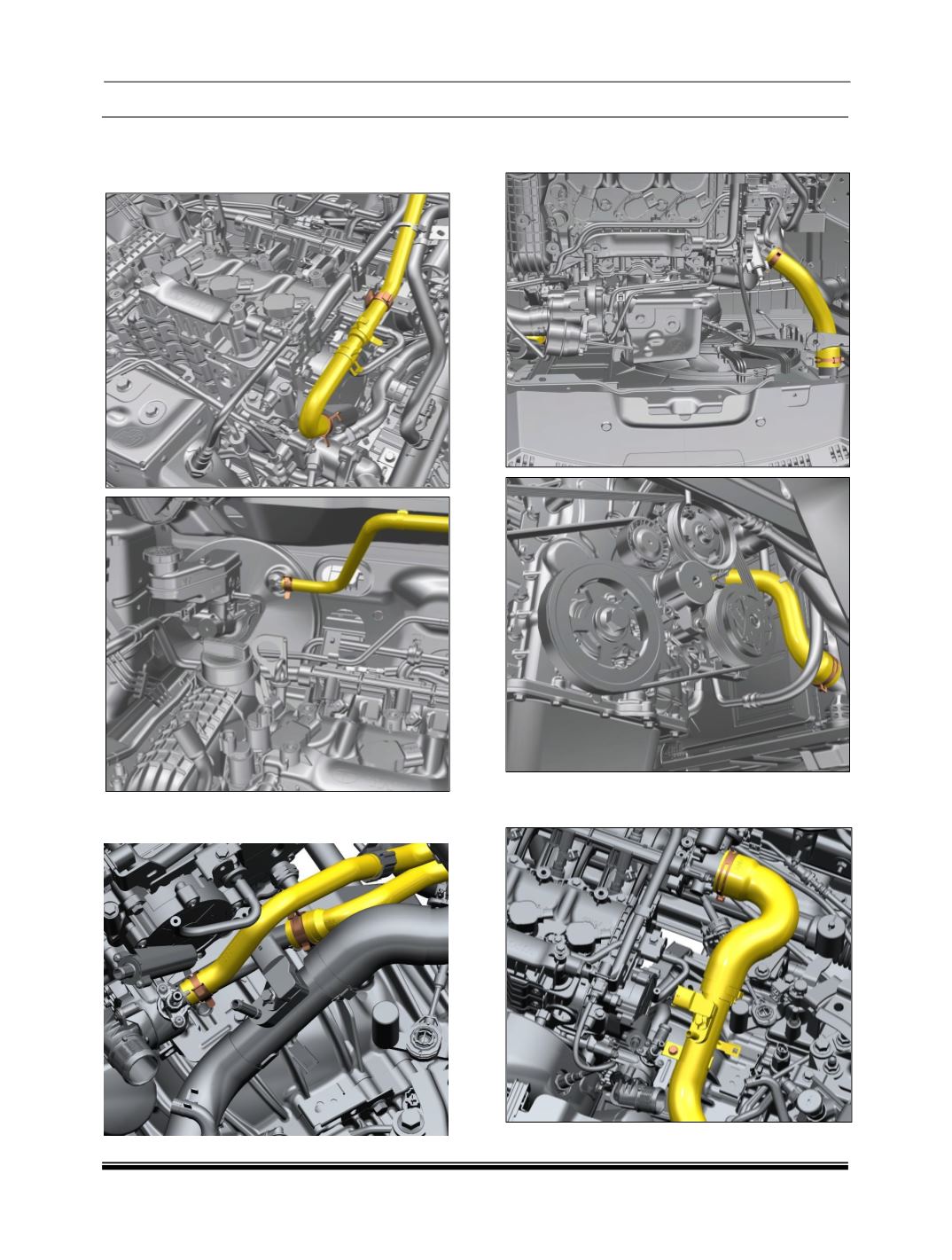

17. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
18. Remove the coolant hoses from the engine
and heater core.
19. Remove all the hoses connected between
radiator and engine.
20. Disconnect the hose connecting intercooler to
the intake manifold.
