1.2L REVOTRON ENGINE
89

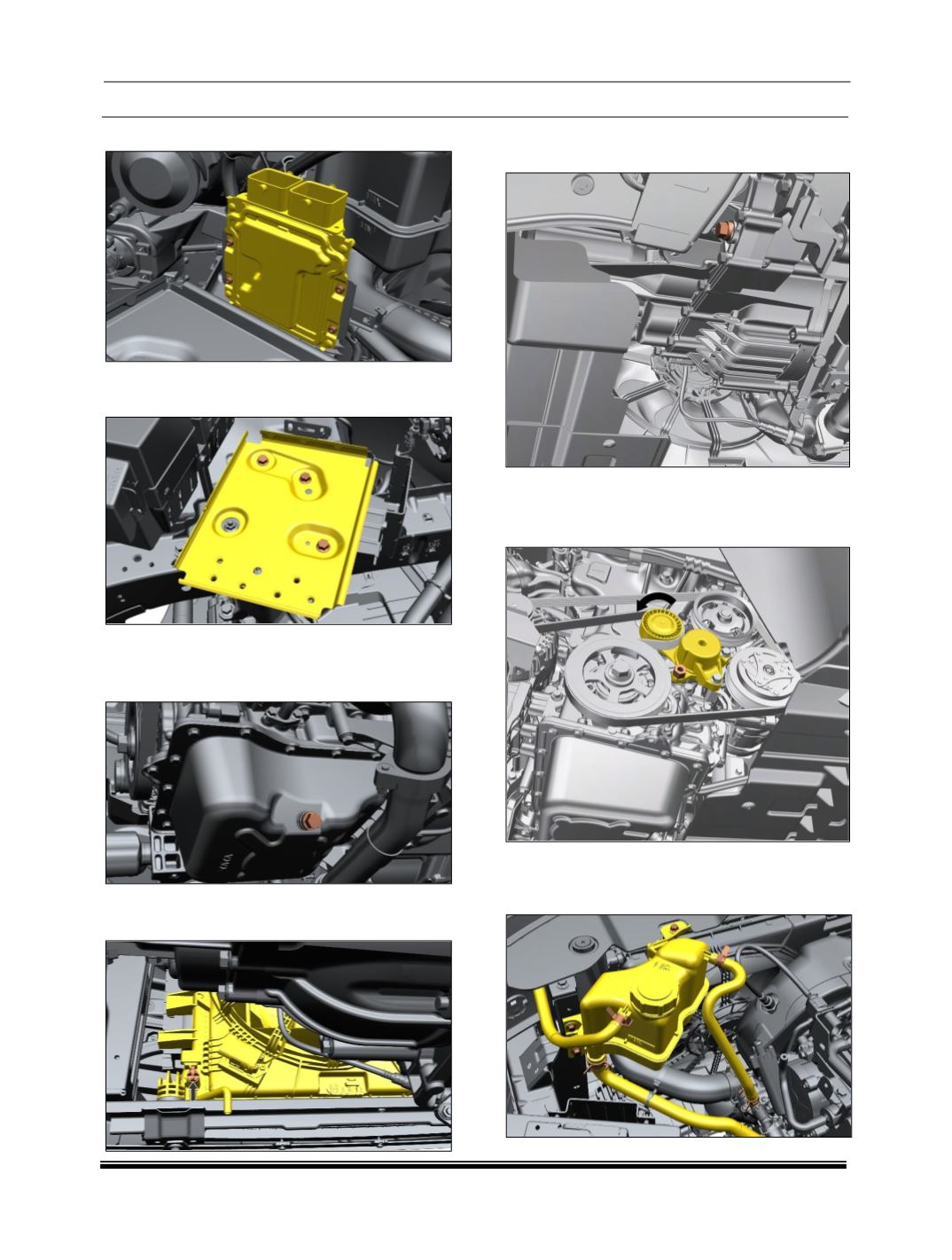

9. Remove the ECU from the vehicle.
10. Remove battery tray by removing fasteners
(4Nos).
11. Raise the vehicle off the ground and drain the
engine oil by removing the drain plug into a
suitable container.
12. Drain the engine coolant by removing drain
plug into a suitable container.
13. Remove the drain bolt from the transaxle.
Drain the transaxle oil from the vehicle.
14. Rotate the tensioner point by using ring
spanner opposite to belt tension and remove
the belt.
15. Recover A/C gas, using recovery unit.
16. Disconnect and remove the auxiliary tank and
hoses from engine.
