1.2L REVOTRON ENGINE
99

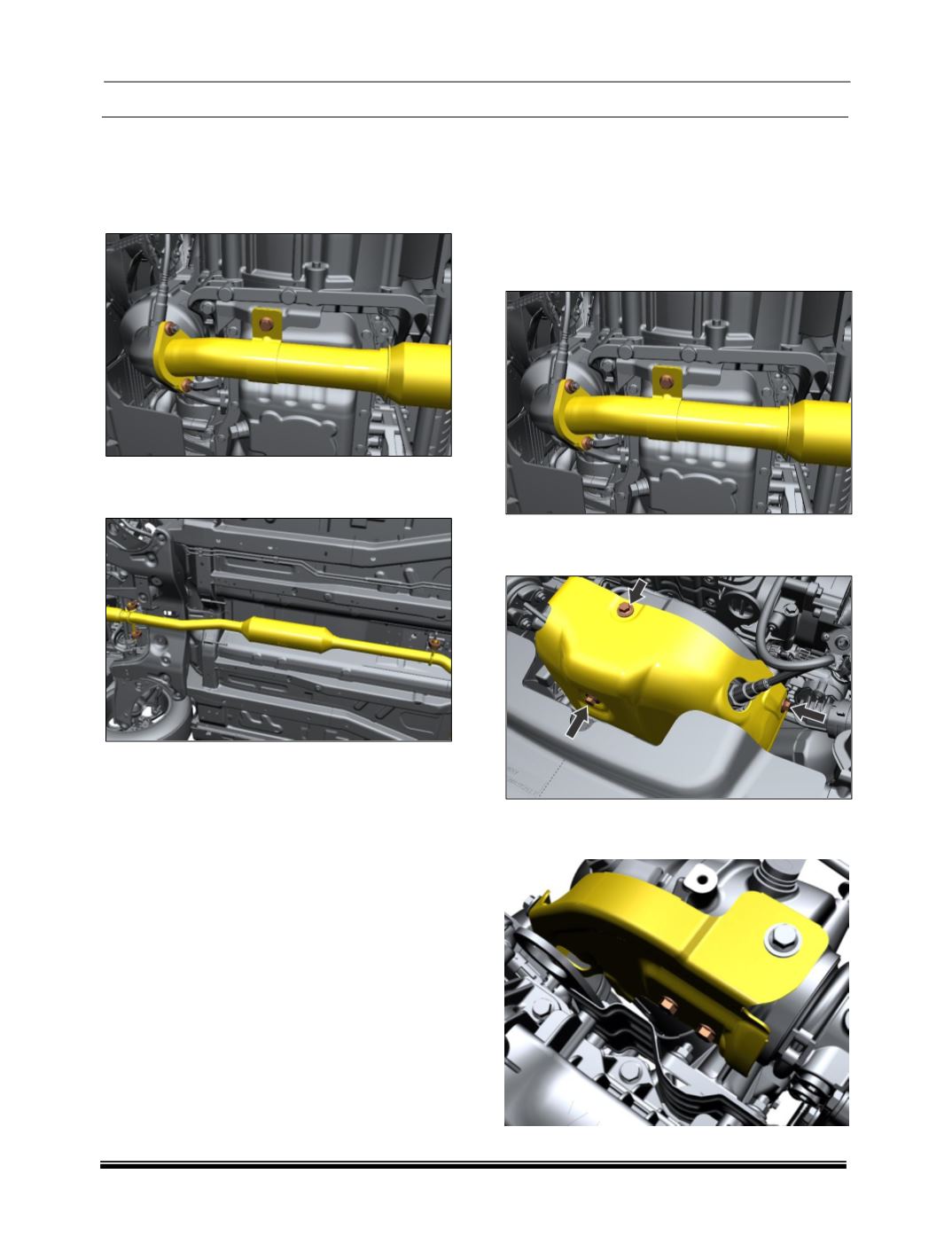

FRONT PIPE ASSY. WITH PRE-SILENCER
REMOVAL
1. Remove the mounting bolts on front exhaust
pipe and on the engine.
2. Remove the rubber hanger from front end of
pre silencer and other one is from rear end.
3. Take out the Pre silencer assembly.
FITMENT
For fitment follow reverse procedure of removal.
CLOSED CATALYTIC CONVERTER
REMOVAL
1. Remove all the electrical connections.
2. Remove both the lambda sensor.
4. Remove the mounting bolts on front exhaust
pipe and on the engine.
3. Remove the top mounting bolts of the exhaust
heat shield.
4. Remove the bottom mounting bolts of the
exhaust heat shield rear and take it out.
