ELECTRICAL
31

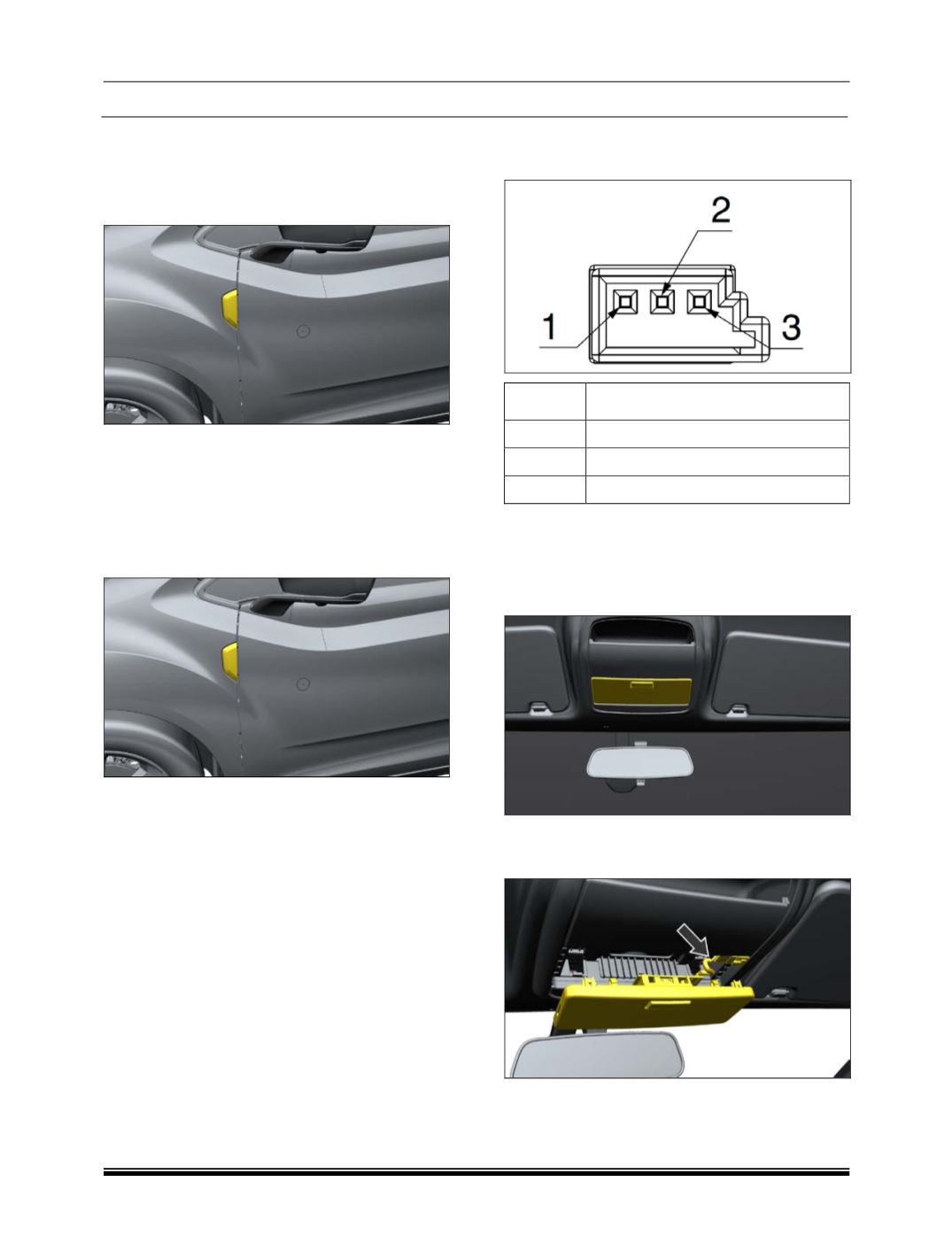

7.5. SIDE REPEATER LAMP (LH/RH)
There are two different types of side repeater
lamp fitting on the vehicle.
A. Side Repeater on Fender (if applicable)
REMOVAL AND REFITMENT OF SIDE
REPEATER LAMP
REMOVAL
A. Side Repeater on Fender (if applicable)
1. Gently pry open the lamp by pressing the snap
lock and pull out the lamp from panel.
2. Remove the connection and secure wiring
harness on fender. Wiring harness should not
go inside.
REFITMENT
Follow the reverse process for installing the side
repeater lamp.
7.6. ROOF LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
Door
3
+ve
REMOVAL AND REFITMENT OF ROOF LAMP
REMOVAL
1. Gently pry out the middle roof lamp assembly
from the bezel roof lamp by inserting wedge.
2.
Disconnect the electrical connector form the
assembly.
REFITMENT:
Carry out the fitment process in the reverse order
of the removal.
