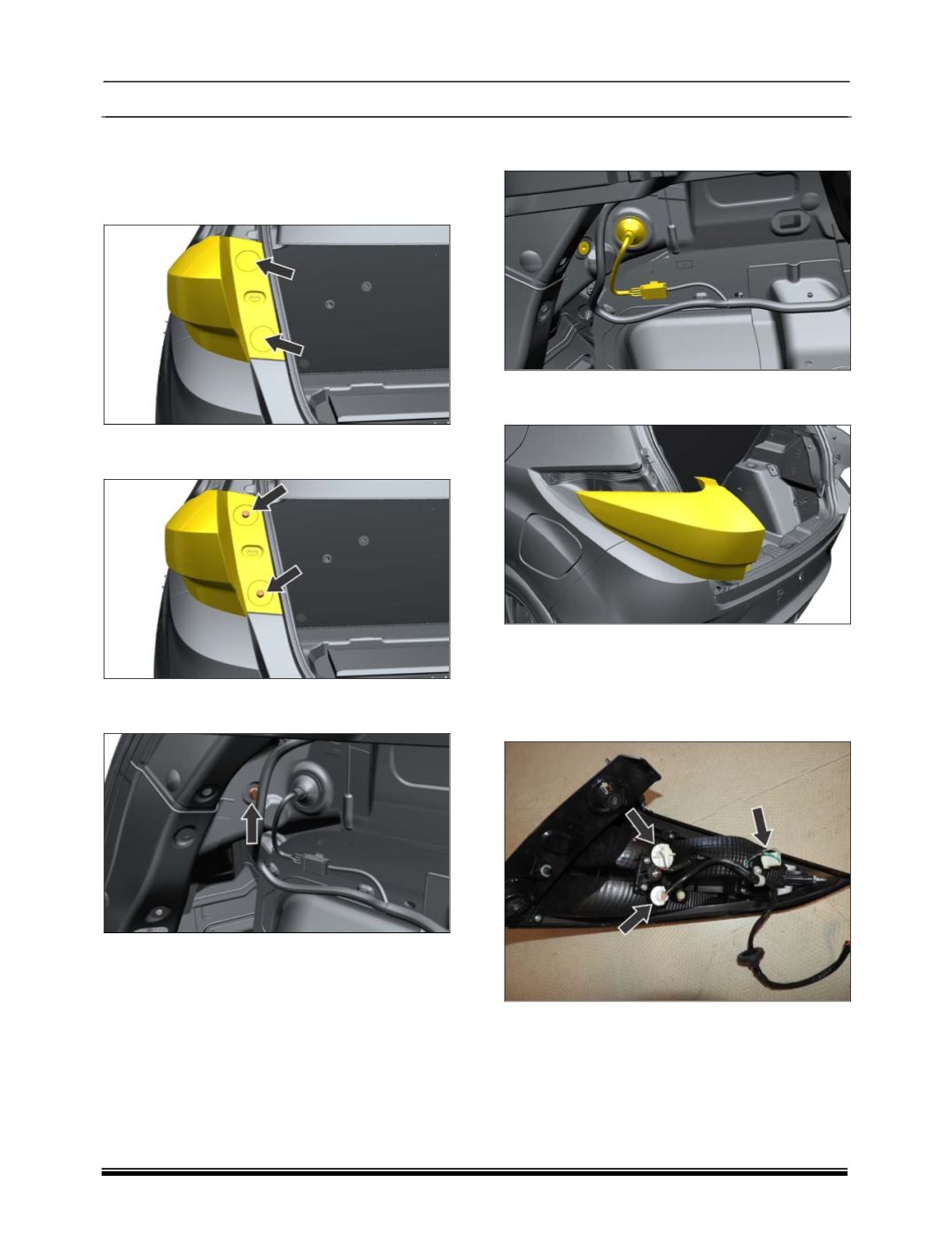

REMOVAL
1. Open Tailgate & ensure all lamps in OFF
condition.
2. Pull out the cap of tail lamp.
3. Loosen and remove the mounting bolt of tail
lamp.
4. Loosen and remove the mounting bolt of
behind tail lamp.
5. Disconnect the electrical connection of tail
lamp.
6. Pull the Lamp Outside (-X Axis) Disengaging
From Catcher.
7. Pull the lamp at catcher points to release from
BIW & take lamp out from vehicle.
8. Rotate the turn signal bulb holder in anti-clock
wise direction to unlock the bulb holder from
lamp.
