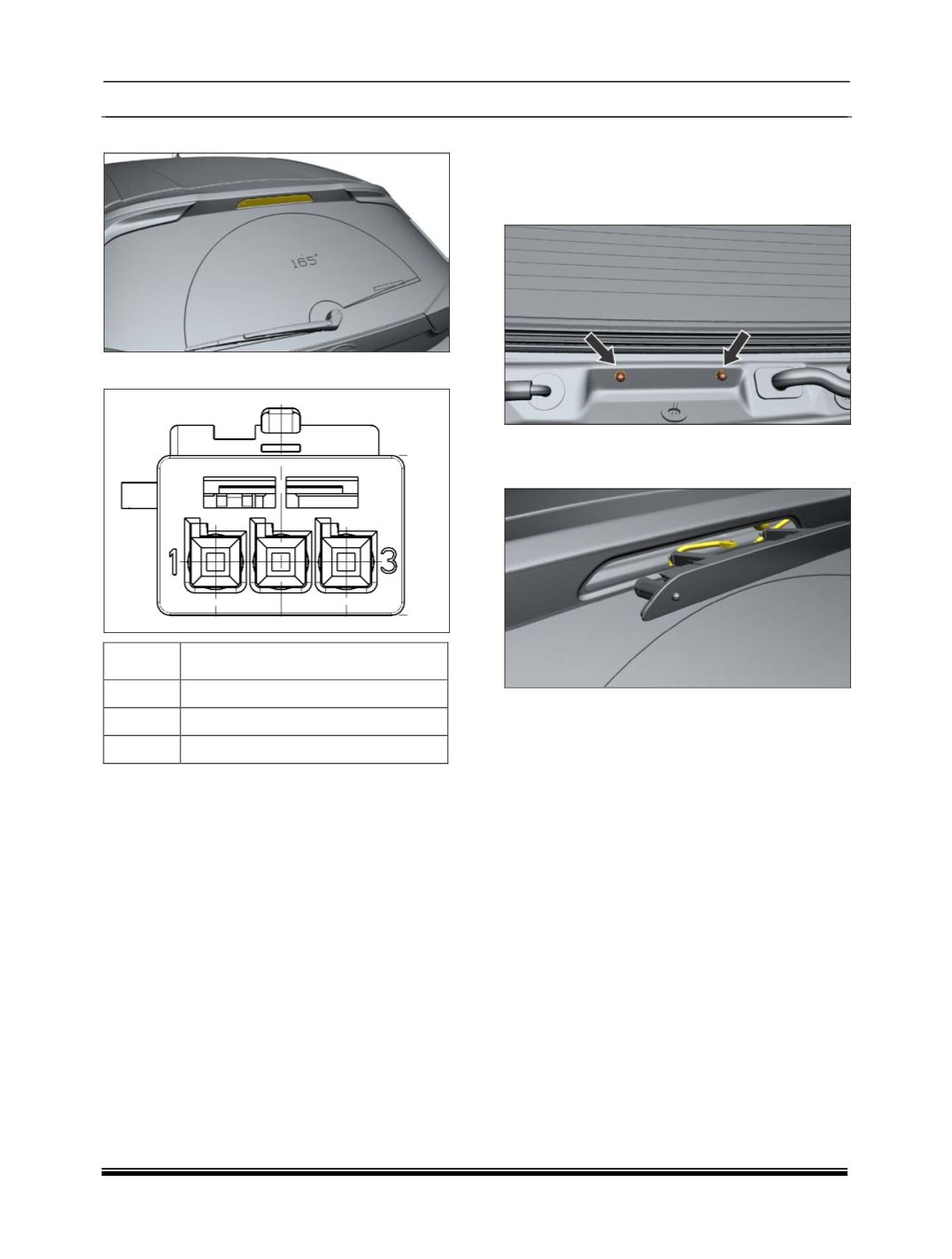

7.7. HIGH MOUNTED STOP LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
+ ve
2
Dummy
3
- ve
REMOVAL
1. Open tailgate.
2. Loosen and remove the Stop Lamp two top
mounting fasteners.
3. Disconnect the washer tube.
4. Disconnect the electrical connection.
REFITMENT
Follow the removal procedure in reverse.
