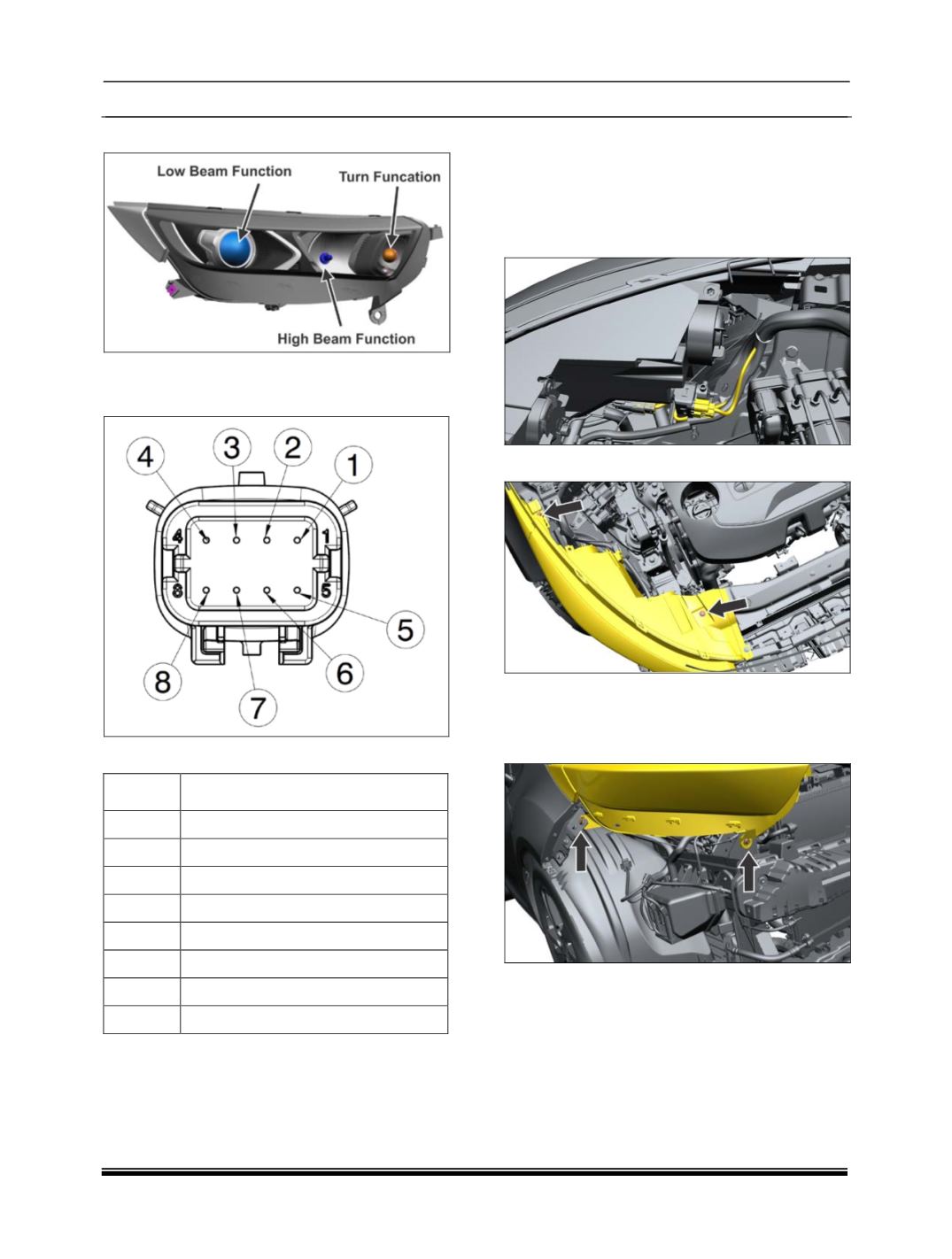

7.4. HEADLAMP
PINOUT DETAILS
Headlamp connector
i. High version
PIN
DESCRIPTION
1
LOW BEAM
2
HIGH BEAM
3
TURN
4
5
6
GROUND
7
POSITION
8
REMOVAL AND REFITMENT OF HEAD LAMP
REMOVAL
1. Open engine hood & ensure all lamps are in
OFF condition.
2. Disconnect the motor electrical connection of
headlamp.
3. Loosen and remove the mounting fasteners.
4. Remove the front bumper (For procedure refer
Body section.)
5. Loosen and remove the headlamp "Inner
Mounting" & side fastener.
6. Hold head lamp properly and remove it.
REFITMENT
1. Position headlamp to its proper place.
2. Refit headlamp Inner fastener.
3. Refit headlamp top fasteners.
4. Connect headlamp connection.
5. Refit front bumper.
