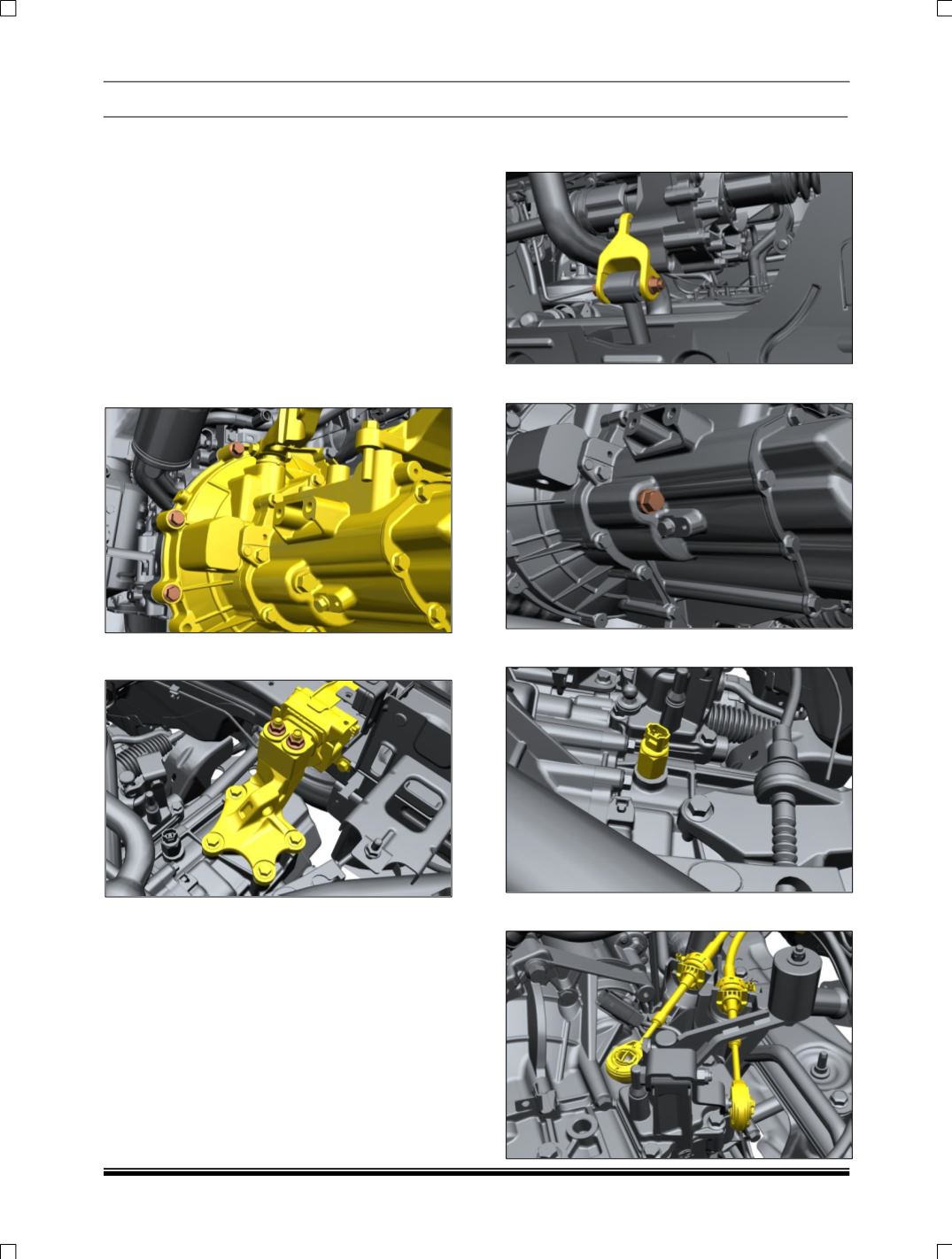

13. ON
VEHICLE
ASSEMBLY
OF
TRANSAXLE:
1. Tie actuating lever of clutch in clutch
disengaged position. Place clutch release
bearing (replace by new one if required) on
input shaft and locate it properly.
2. Lift the transaxle assembly using support
stand.
3. Fix ‘B’ mount bracket on transaxle.
4. Support and lower the engine assembly slightly
and align transaxle assembly with engine
assembly.
5. Fit clutch housing on to engine and locate bolts
and tighten them.
6. Fix the ‘B’ mount nut and tighten it to specified
torque.
7. Locate and fix ‘B’ mount rubber pad on bracket
below the battery tray.
8. Fix ‘C’ mount bracket to transaxle housing and
remove engine support.
9. Fill transaxle oil through filler plug.
10. Connect reverse light switch connection.
11. Connect gear shift cables.
