TRANSAXLE - TA65 Star
29

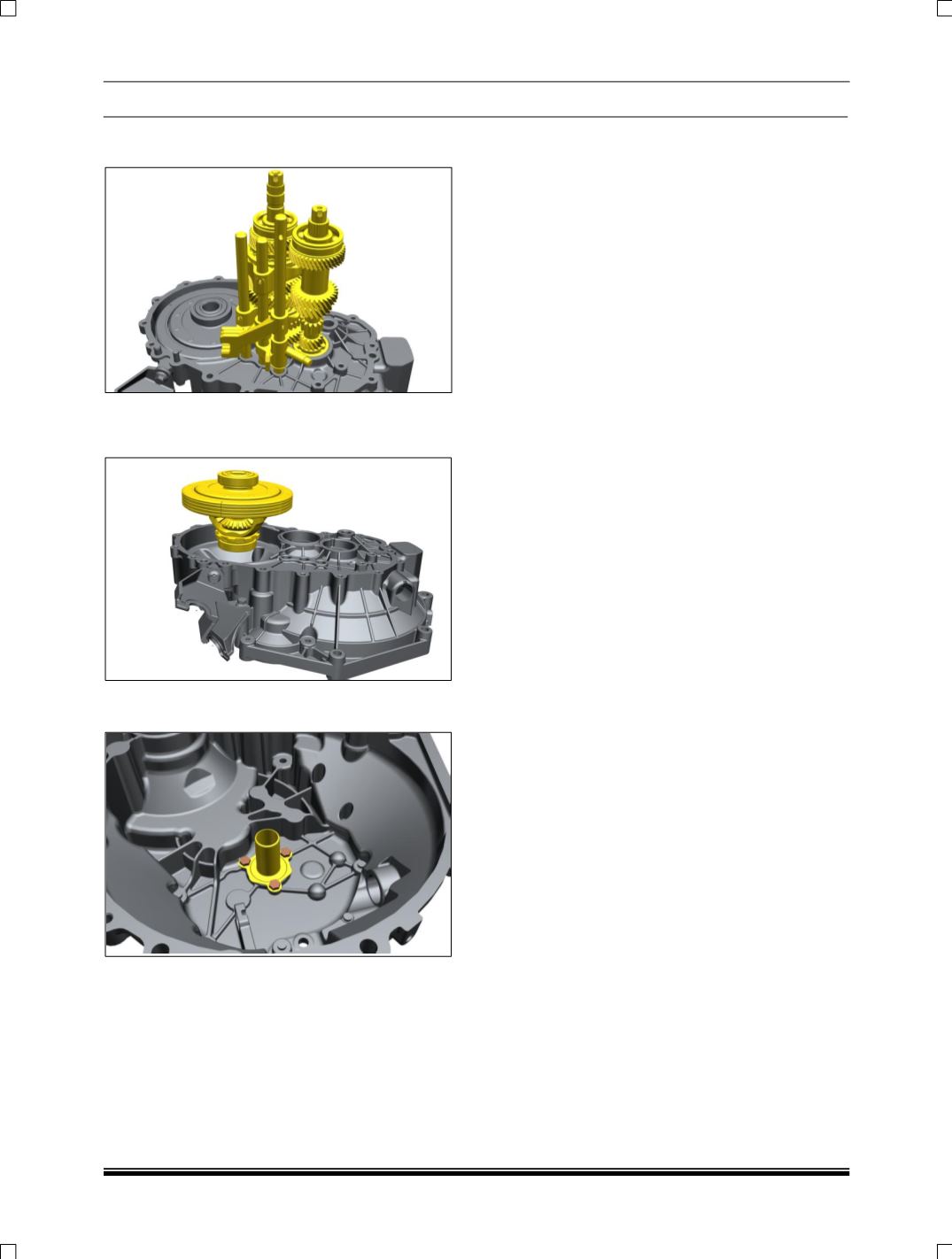

34. Pry out the input shaft, and lay shaft along with
shifter shaft assembly from the clutch housing.
35. Remove the differential assembly along with
the oil seal and taper roller bearing from the
housing front.
36. Remove the input shaft cover by removing M6
* Mounting Bolts.
37. Try out the oil seal from the cover (if damaged)
and
replace it with new one.
38. Remove the plastic bushes at both ends of
clutch release fork and remove the clutch
release shaft from inside.
39. Remove oil seals of drive shaft from differential
housing.
Replace it with a new one while
assembling.
40. Remove bearing outer races of differential side
bearing along with shims. Ensure that outer
races are not interchanged.
NOTE:
1.
SHIMS SHOULD NOT BE REUSED.
2. Apply anabond 112 on threads of all fasteners
3. Apply RTV silicon liquid gasket anabond 676
on housing interface.
4. The chips collected by magnetic drain plug, are
to be removed at the time of every oil change.
5. Keep inner and outer races of taper roller
bearing in sets.
6. Use sealing anaerobic compound for all oil
seals outer diameter.
7. For oil seals of input drive shaft and bellows
use anabond 112.
