1.2L REVOTRON ENGINE
100

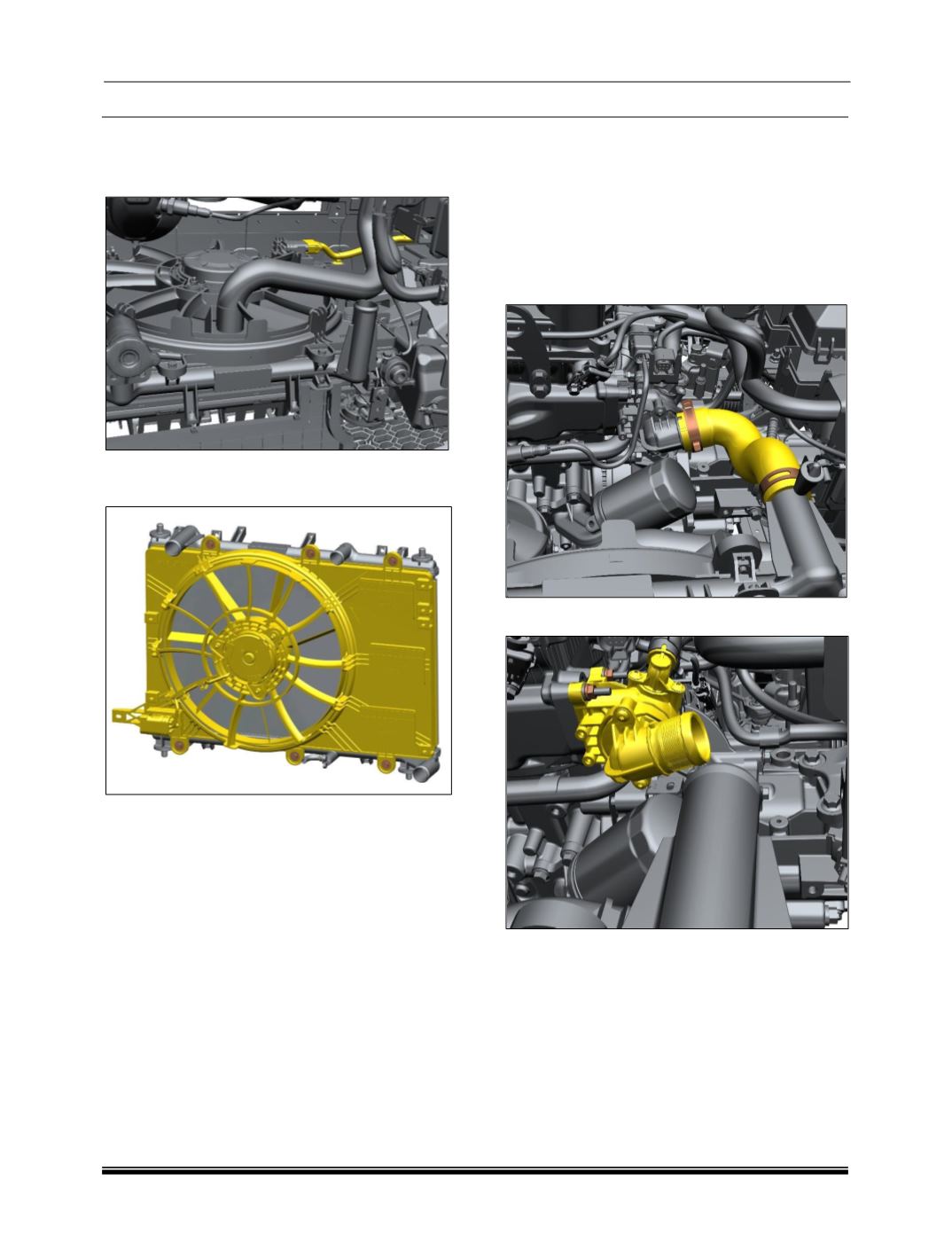

RADIATOR FAN SHROUD REMOVAL
1.
Disconnect the electrical connections to the
radiator fan.
2. Remove the six fasteners to separate fan
shroud.
3. Pull out the shroud from the top.
FITMENT
For fitment slide the shroud into the mounts till it
snaps at the top mounts.
THERMOSTAT REMOVAL
1. Drain the coolant.
(Refer “Coolant Replacement
Procedure).
2. Access the thermostat either from front right
wheel side by removing the arch liner or from
top by removing air filter assembly.
3. Remove the spring band clip and disconnect
the hose
.
4. Remove the cover mounting nuts
.
