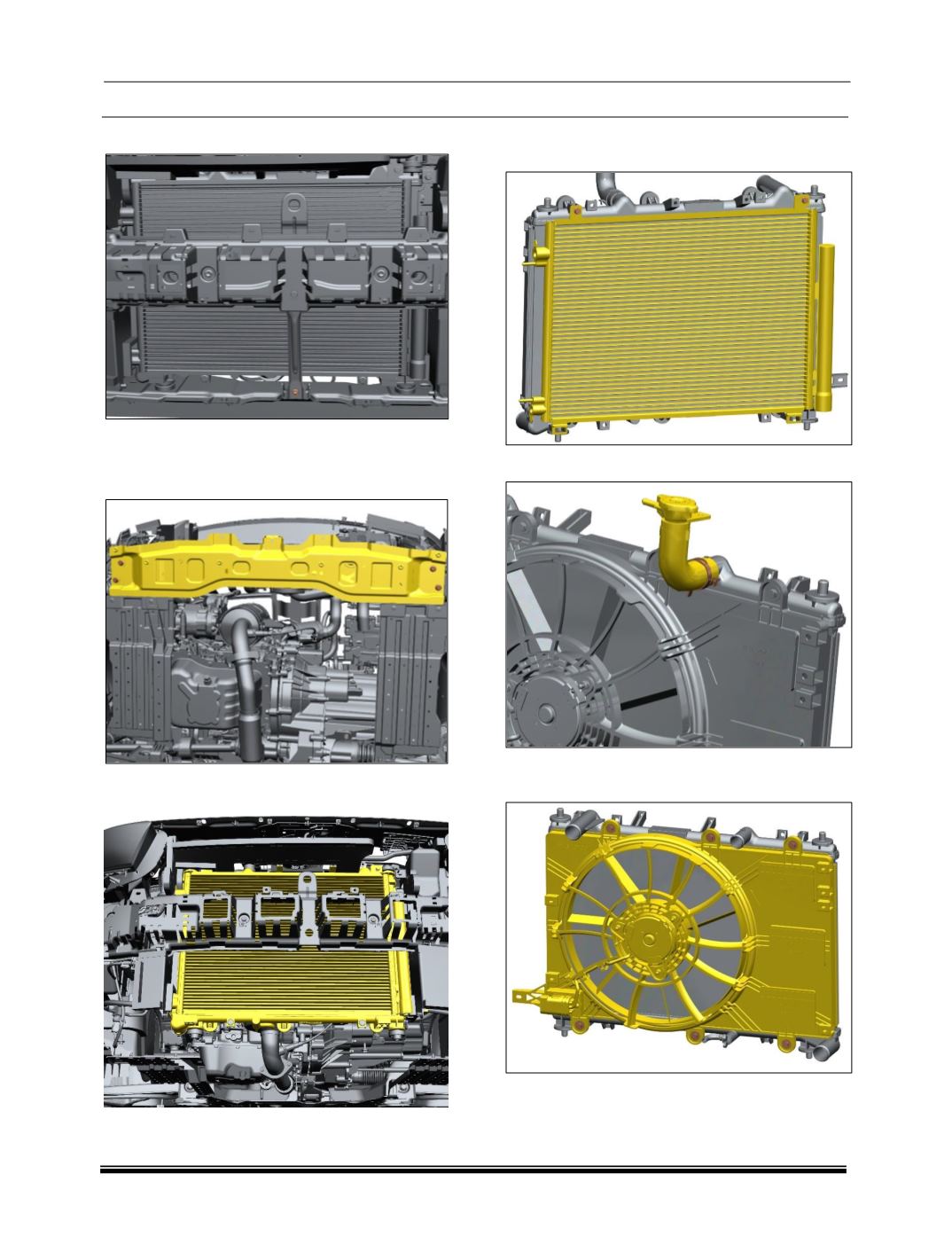

8. Remove the center fastener of radiator support.
9. Disconnect refrigerant lines.
10.Remove the mounting bolts of the bottom
member of radiator support.
11.Tilt inwards and slide out the radiator and
condenser assembly from the vehicle.
12.Remove Sealing assemblies.
13.Remove the top mounting bolts and remove
condenser assembly.
14.Remove the neck filler assembly of radiator.
15.Remove the fan shroud assembly by removing
its mounting bolts.
FITMENT
For fitment follow the reverse order of removal.
