For fitment follow the reverse order of removal.
NOTE

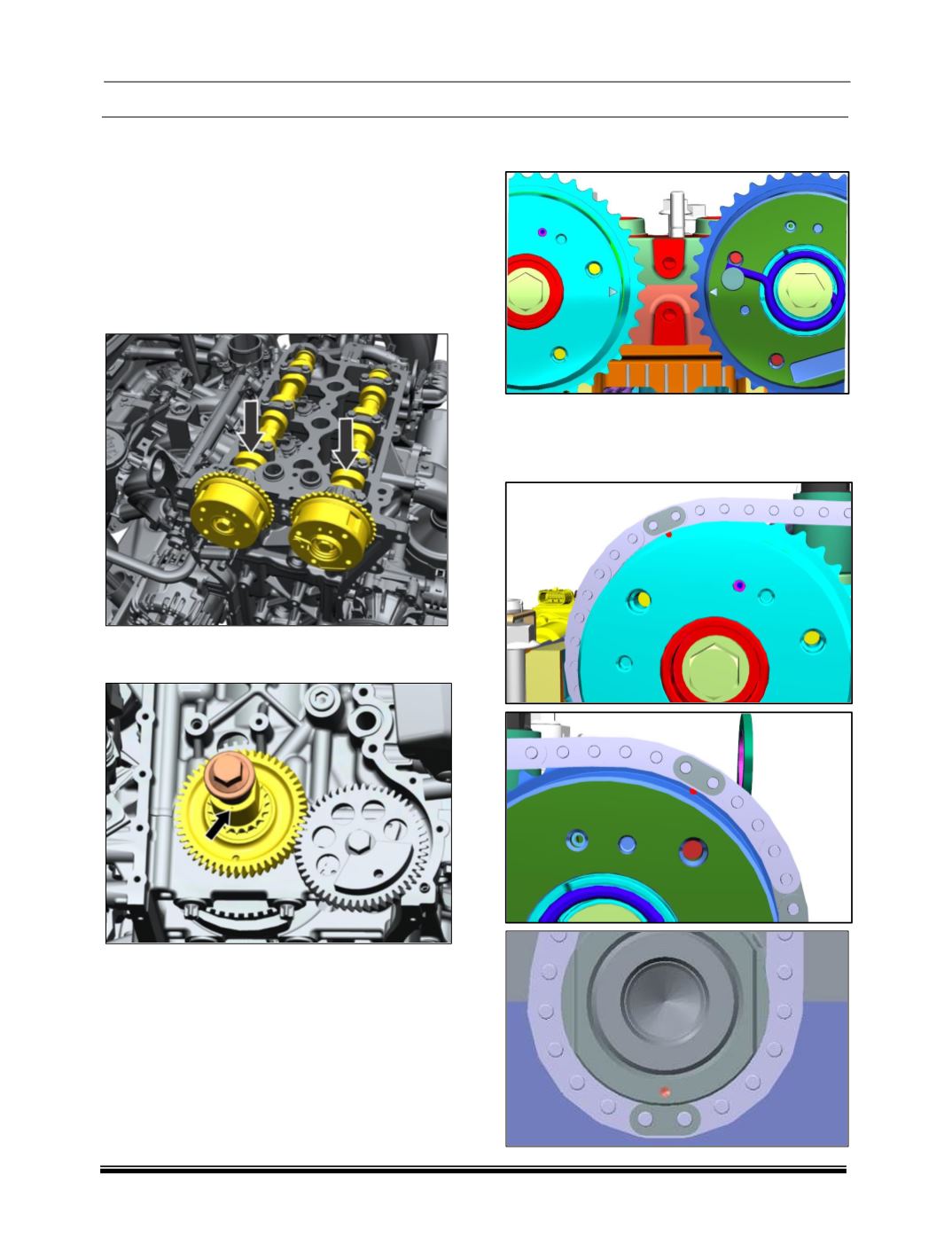

Place the chain over VCT, exhaust sprocket and
crankshaft sprocket in such a way that the 3 copper
color links of chain matches with the dimple marks
of all the 3 sprockets respectively
TIMING
CORRECTION
/
ADJUSTING
PROCEDURE
1. Rotate camshaft to face upward direction.
2. Tighten damper bolt and rotate crankshaft to
adjust the marking at bottom most position.
NOTE
Ensure the flywheel is not locked.
3. Rotate both camshafts to align. Ensure the
direction of the arrows opposite to each other
4. Now place the chain over on both VCT’s in
such a way that the 3 copper color links of
chain matches with the dimple marks of all the
3 sprockets respectively as shown.
