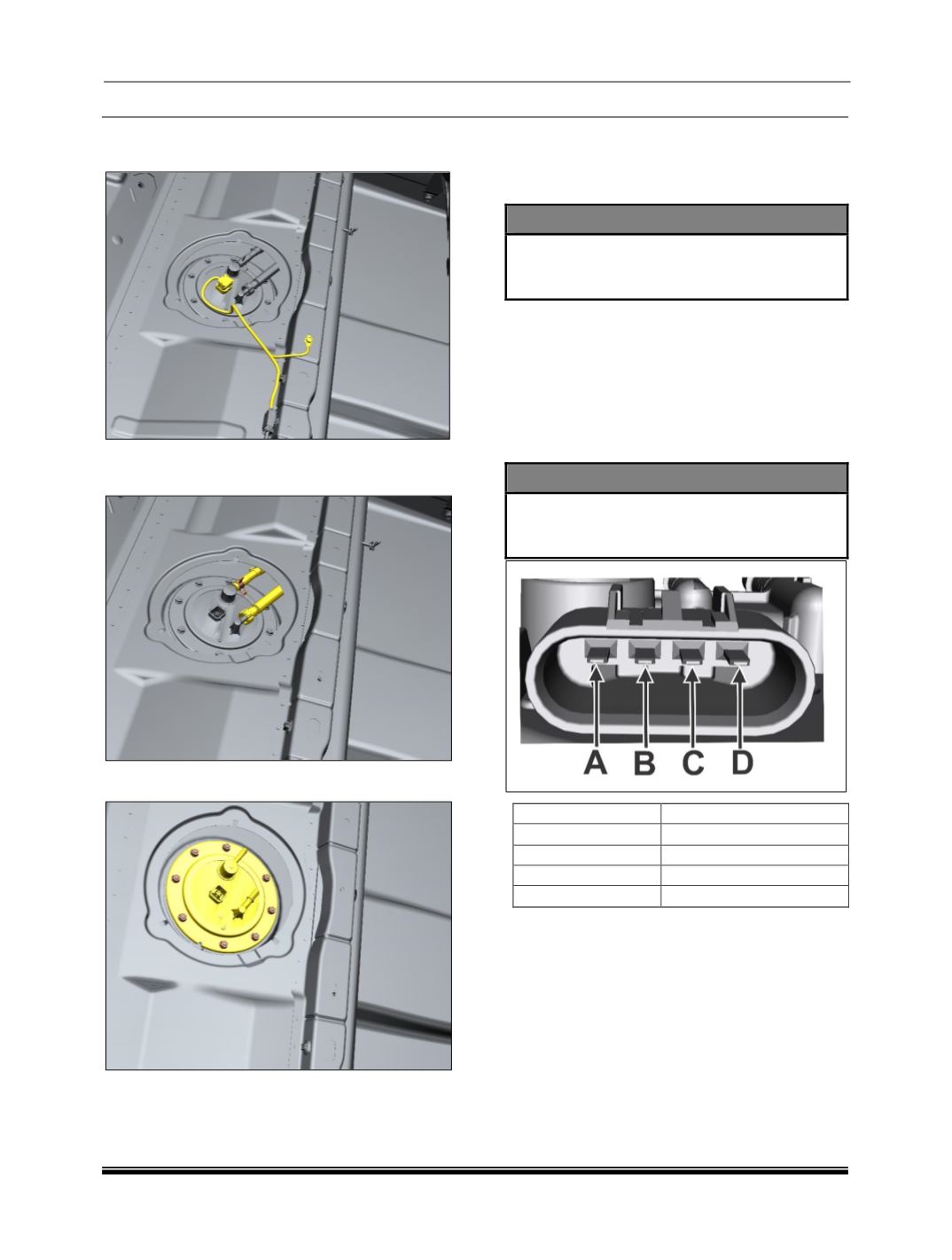

3. Disconnect the electrical connection of the fuel
pump module.
4. Disconnect the fuel delivery line and the hose
connecting fuel pump module to the canister.
5. Loosen and remove the mounting fasteners.
6. Lift the in-tank pump carefully out from the tank.
FITMENT
For fitment follow reverse procedure for removal.
INSPECTION
Use multi-meter to confirm that the resistance of
the fuel level sensor changes with the level of
float position.
FUEL LEVEL SENSOR
REMOVAL
1. Remove the tank unit.
(For Removal Refer
Tank Unit removal process).
2.
Disconnect the electrical connection and
remove the fuel level sensor by releasing the
snap.
INSPECTION
Use multimeter to confirm that the resistance of
the fuel level sensor changes with the level of
float position.
Pin No
Function
A
Fuel Pump (-)
B
Fuel Sensor (+)
C
Fuel Sensor Ground
D
Fuel Pump (+)
Measure the resistance in pins B and C. refer next
page for values at different heights of the float.
