1.2L REVOTRON ENGINE
133

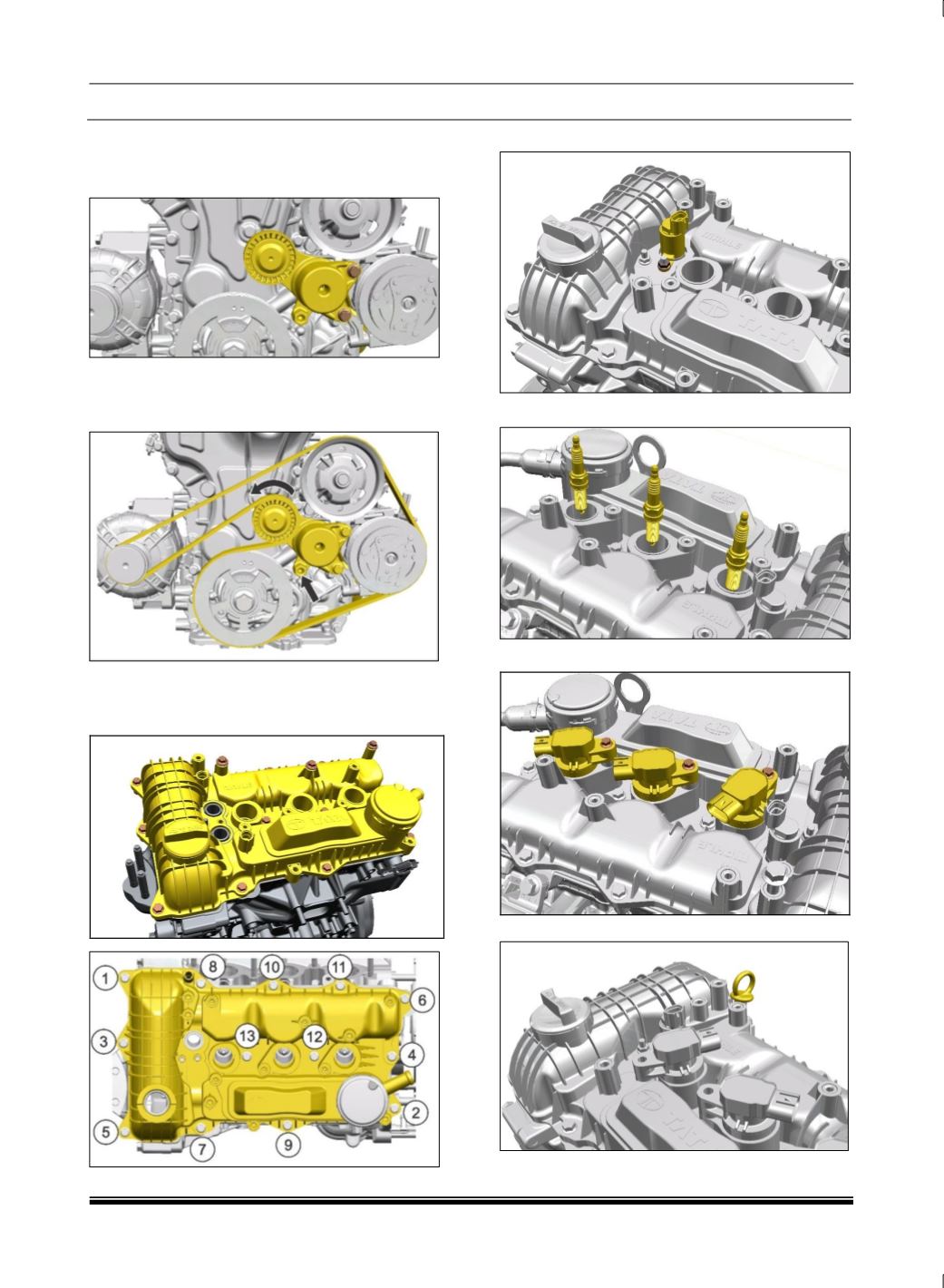

VI. Assembly of Engine Accessories driving
Belt
1. Assemble the Belt tensioner.
2. Rotate the tensioner point by using ring
spanner anticlockwise to assemble the
accessory driving belt easily.
3. Assemble the Cylinder Head Cover to the
engine & carefully placed the rubber gasket
apart. (Refer the tightening sequence)
4. Assemble the Solenoid valve of VCT.
5. Assemble the spark plugs.
6. Assemble ignition coil to head cover.
7. Assemble dipstick to head cover.
