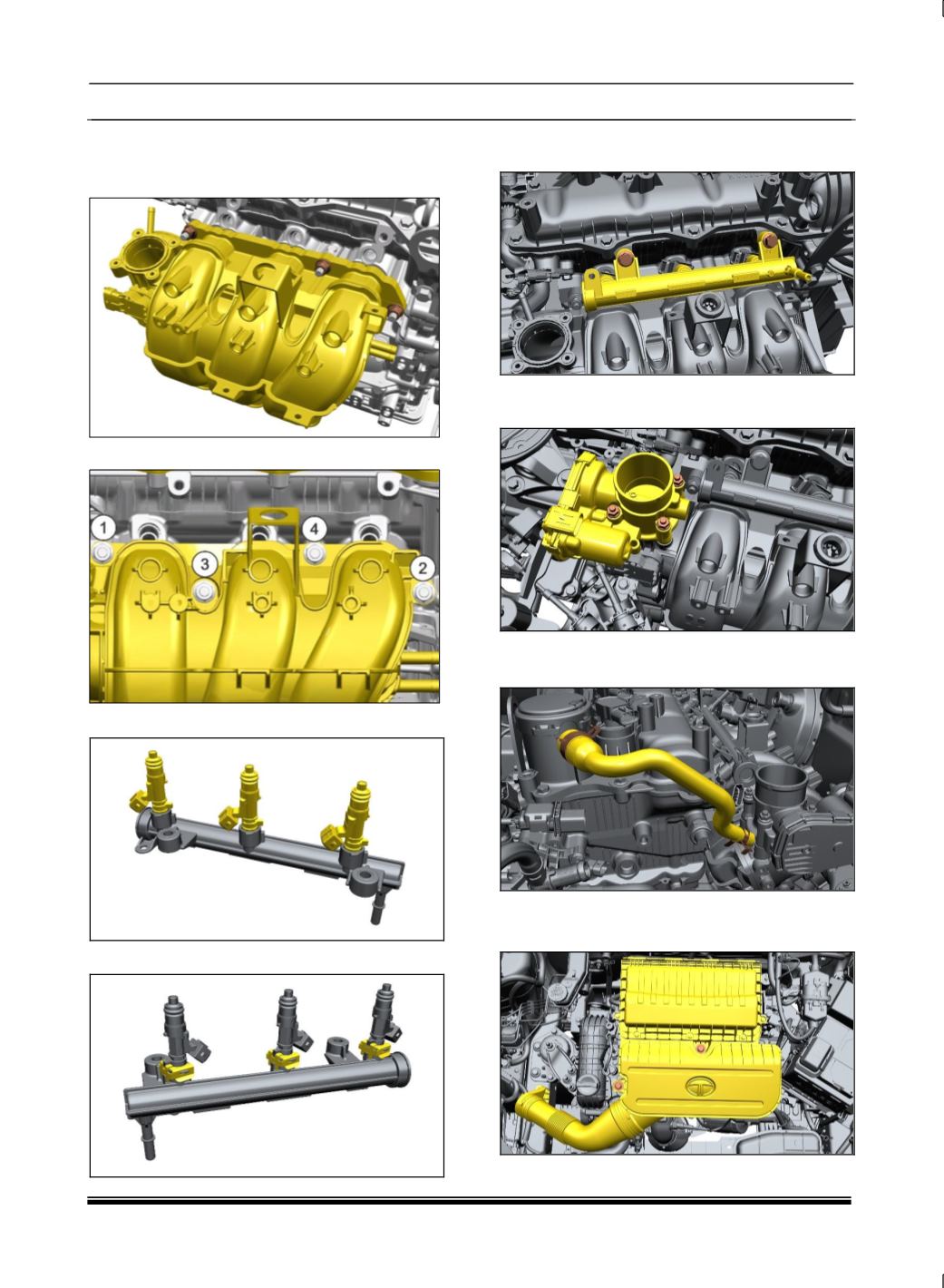

Assembly of Intake Manifold :
1. Refit the Intake Manifold by tightening the 5
no of fasteners.
2. Follow the tightening sequence.
3. Refit the Injectors.
4. Refit the Injector Retainer clip.
5. Assemble the Fuel Rail along with the
injectors.
6. Fit the Electronic Throttle Body by tightening
the 4 nuts.
7. Refit the Rubber hose from Head cover NRV
to Intake manifold.
8. Refit the Spring Band Clamp.
9. Refit the Filter along with snorkel on vehicle.
