1.2L REVOTRON ENGINE

135

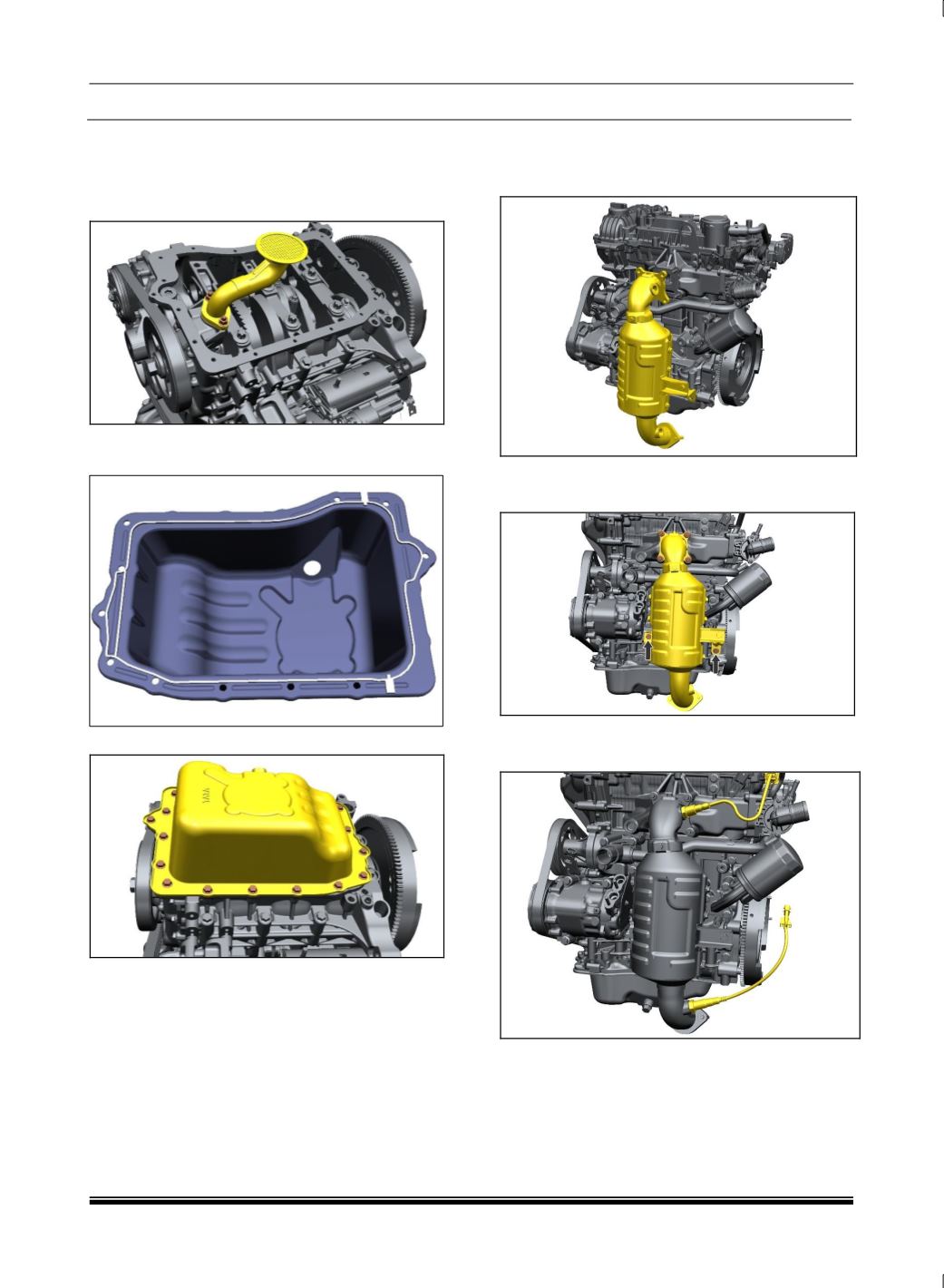

VIII. Assembly of Oil Sump

1. Rotate the engine at 180

0

for fitment of oil

sump.

2. Refit the Lube Oil Strainer along with O-Ring.

Spread the liquid sealant on oil sump without

spilling the sealant in holes.

3. Fit the oil sump and tighten it.

4. Refill the engine oil.

IX. Assembly of Exhaust Manifold

1. Refit the Closed Coupled Catalytic Convertor

(CCC) and Gasket.

2. Tighten mountings on coupled catalytic

converter (CCC).

3. Reconnect the Lambda Sensor Upper and

Lower to CCC.
