ELECTRICAL
130

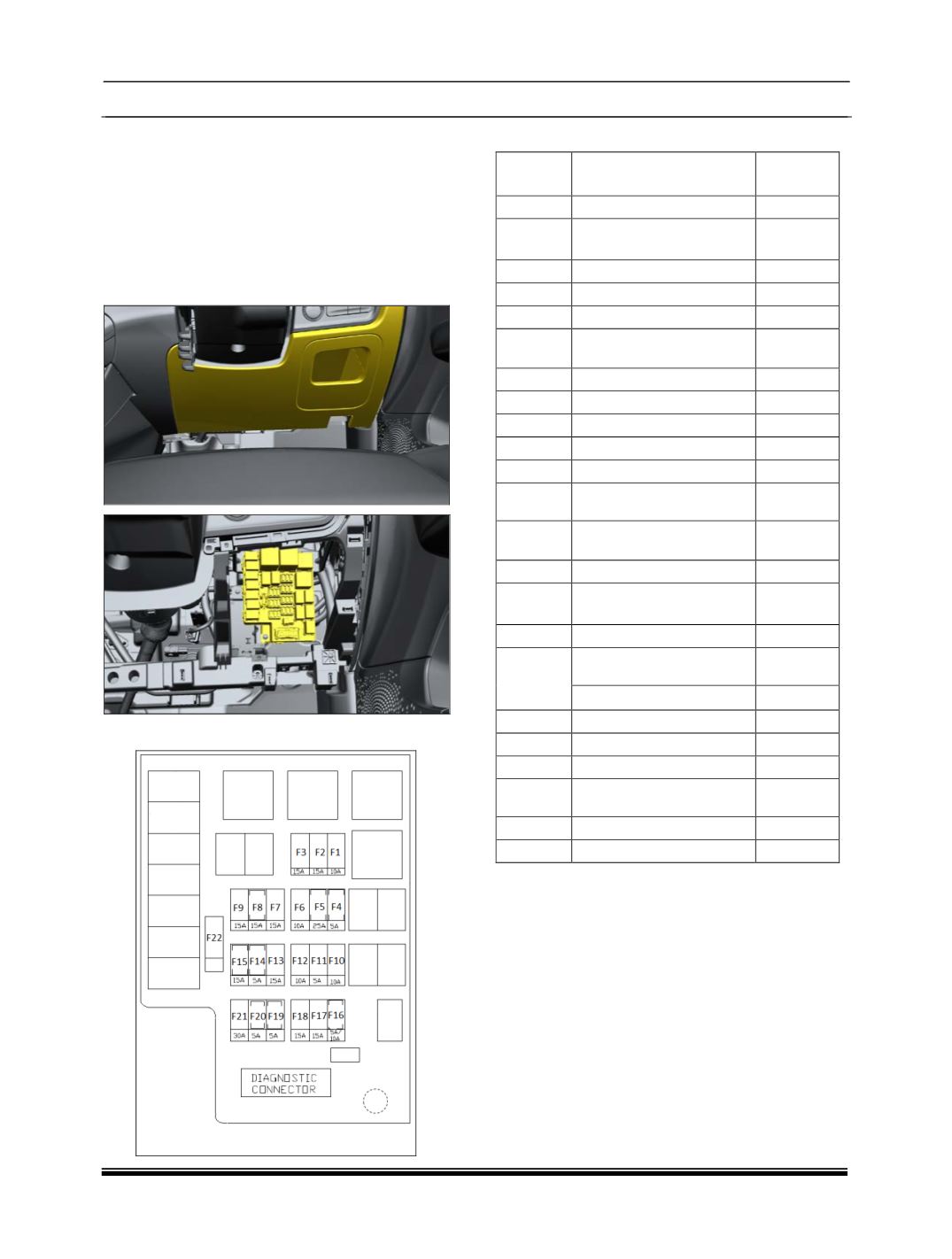

D. CABIN FUSE AND RELAY BOX
This fuse box is part of Cabin wiring harness. For
details refer the below fuse box sticker fitted on
dashboard inside the Cover Steering Column. For
other pin out details of fuse box refer the power
distribution II circuit schematics.
LOCATION
Behind Cover Steering Column
CABIN FUSE AND RELAY BOX DETAILS
Fuse
No.
Function
Fuse
Rating
F1 TAILGATE RELEASE
10A
F2 TRANSIST/INFOTAINM
ENT
20A
F3 ACC BATT
15A
*
F4 ACCESSORIES FUSE 5A
*
F4 PEPS/BLOWER RLY
5A
*
F5 HEATED REAR
SCREEN BCM
25A
F6 HVAC/ FATC BATT
10A
F7 BCM2- BASE/MID BCM 15A
*
F8 BCM3-MID BCM
15A
F9 BCM1-BASE/MID BCM 15A
F10 IGN FUSE-2
10A
F11 IMMOB/EPAS/PEPS-
IGN
5A
F12 RESTRAINTS
CONTROL MODULE
10A
F13 POWER SOCKET1
15A
*
F14 MIRROR ADJUST
MOTOR
5A
*
F15 POWER SKT
15A
*
F16
PEPS/ESCL ECU-
BATT
10A
RELAY COILS
5A
F17 CLUSTER / OBD/IMMO 15A
F18 CDL
15A
*
F19 KEY IN
5A
*
F20 AC BLOWER
POSITION
5A
F21 BLOWER MOTOR
30A
*
F22
RPAS
5A
