ELECTRICAL
128

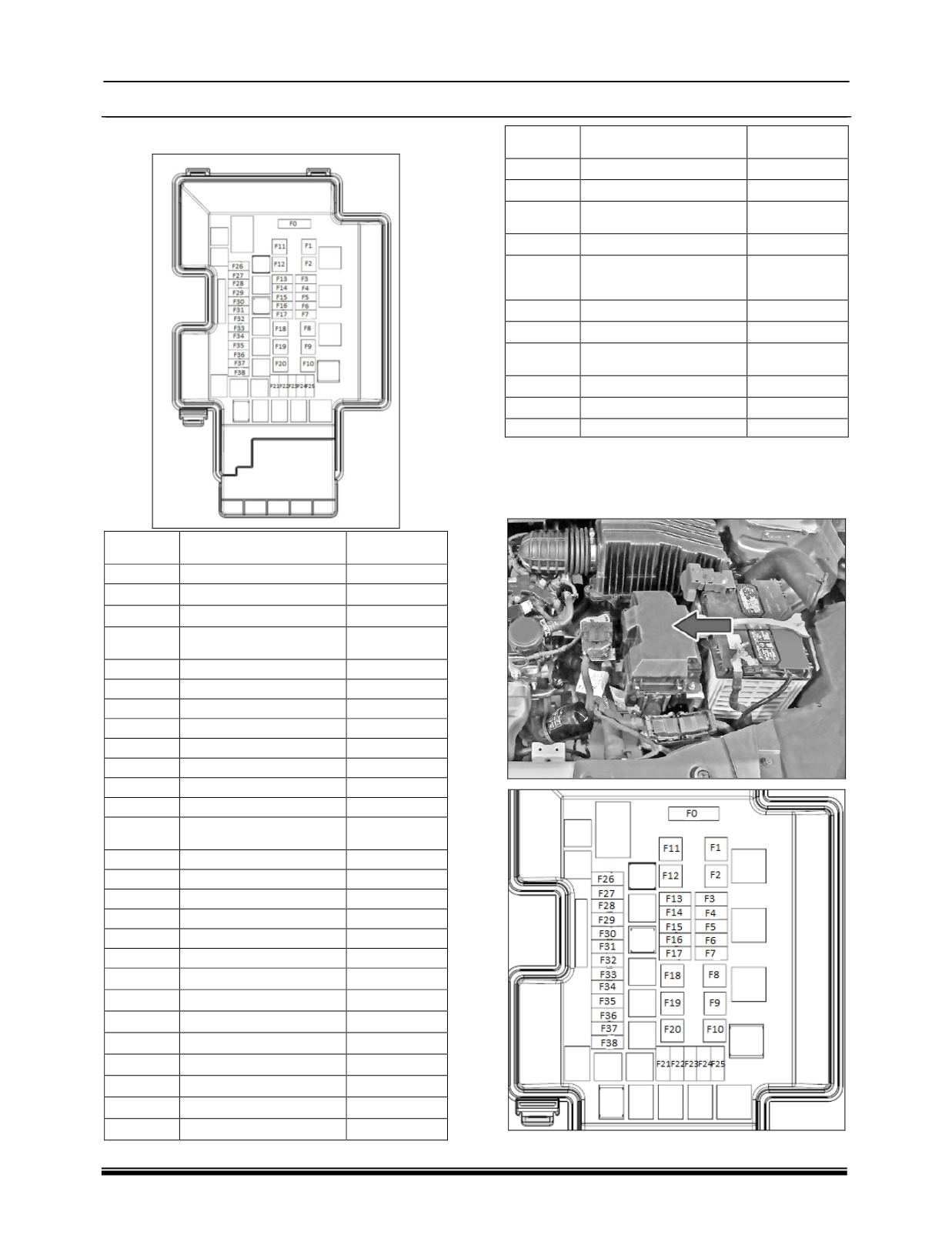

Fuses - Engine Compartment (Diesel)
Fuse
No.
Function
Fuse Rating
F0
-
-
F1
COCKPIT F/B SUPPLY
60A
F2
RADIATOR FAN-1
40A
F3
STARTER SOLENOID
BATT
25A
F4
-
-
F5
-
-
F6
-
-
F7
-
-
F8
HEAD LAMP/TCU
60A
*
F9 GLOW PLUG
60A
F10 EPAS
60A
*
F11 RADIATOR FAN-2
40A
F12 UNDER BONNET F/R
BOX
60A
F13 EMS BATT
10A
F14 COMPRESSOR
10A
F15 ABS ECU BATT
25A
F16 HORN BATT
15A
F17 BRAKE LAMP BATT
10A
F18 ABS PUMP
40A
F19 INTERIOR F/B BATT
60A
F20 IGNITION LOAD
60A
F21 -
-
F22 H/L HIGH RH
10A
F23 H/L HIGH LH
10A
F24 ABS ECU IGNITION
5A
*
F25 GLOW PLUG FB
5A
F26 -
-
F27 EMS RELAY COILS &
SENSORS
15A
F28 EMS ECU SUPPLY
20A
F29 -
-
F30 FRONT WIPER
MOTOR
20A
*
F31 RR WIPER
10A
*
F32 STARTER MOTOR
FEEDBACK
5A
F33 RELAY COILS*
5A
F34 -
-
F35 REVERSE
LAMPS/BRAKE SWITCH
10A
F36 H/L LOW LH
10A
F37 H/L LOW RH
10A
F38 -
-
Note:
*
- if equipped
Fuses - Engine Compartment (Petrol)
