ELECTRICAL
127

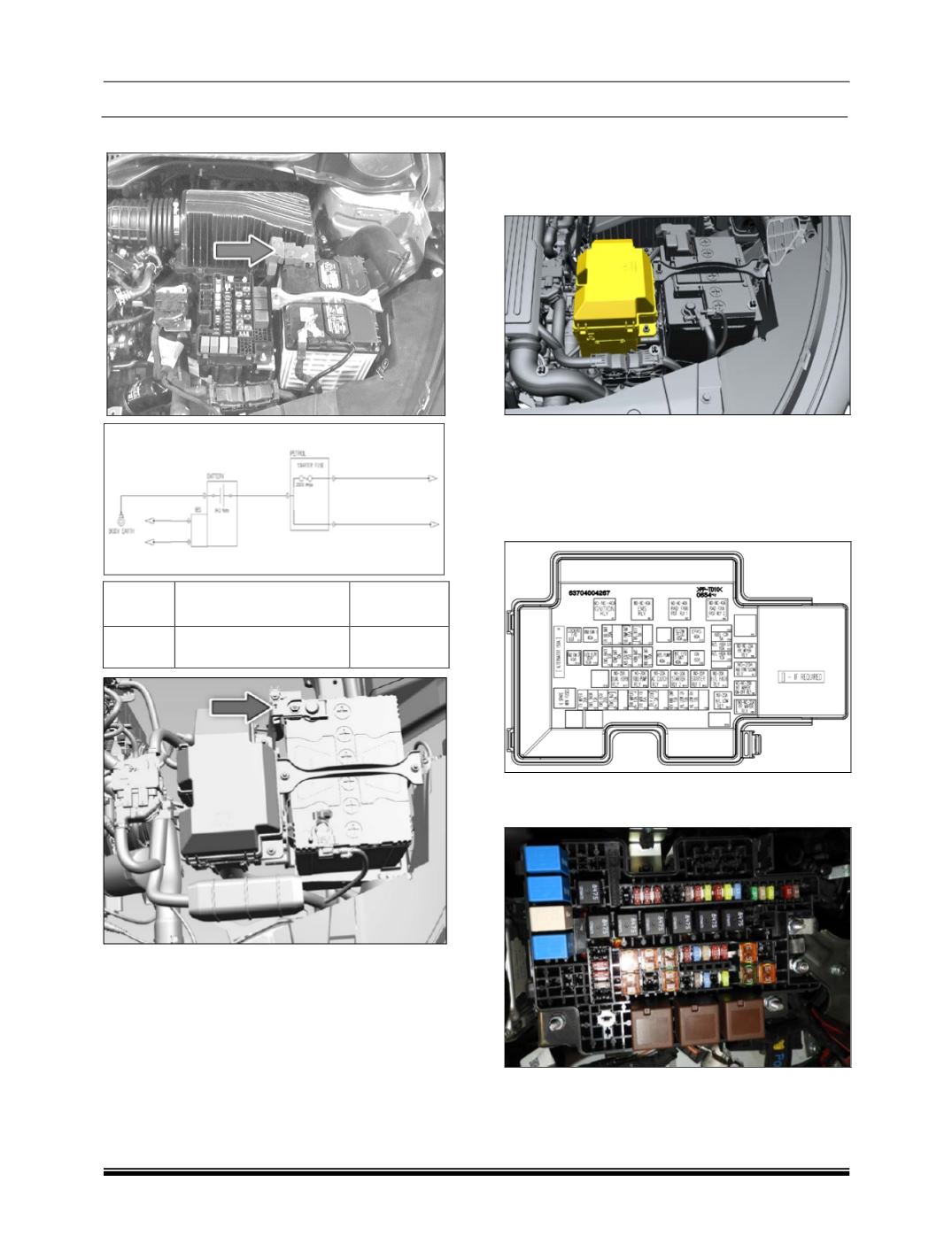

Battery mounted fuse box (Petrol)
Fuse
No.
Function
Fuse
Rating
PF1
STARTERMOTOR 200 A
PF1 STARTER MOTOR
WARNING:
If fuse box cover is removed for any reason, it
should be refitted properly in its original position.
C. ENGINE FUSE AND RELAY BOX
This fuse box is directly connected to Battery
Positive terminal through Battery Mounted Fuse
box and Bus-bar structure is used in this fuse box.
NOTE
The fuse box layout is for reference purpose only.
Please refer the sticker provided inside the fuse
box cover.
Fuse box Sticker layout
Fuse Puller and Spare Fuses location inside
Engine Compartment Fuse box:
