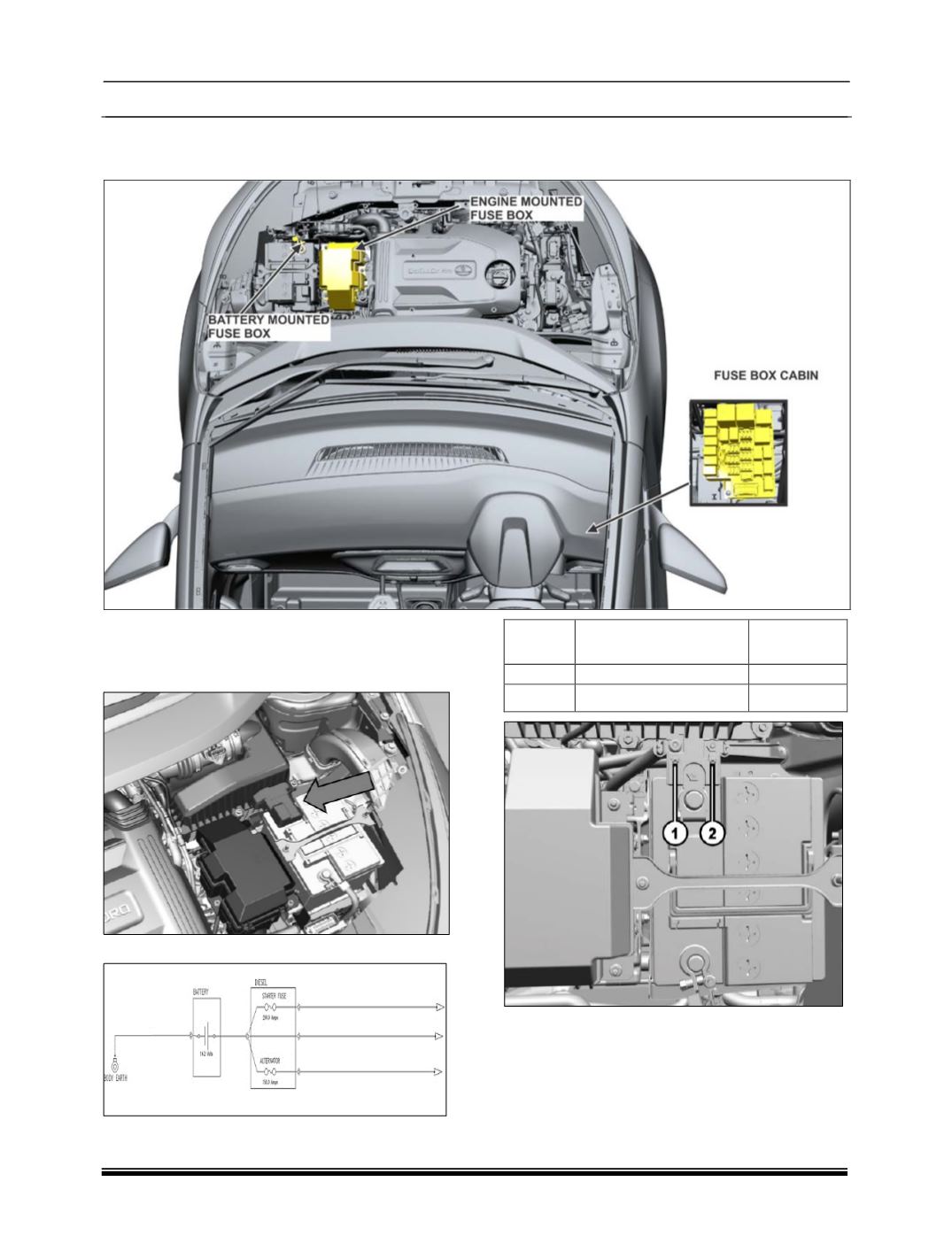

A. FUSE AND RELAY BOX: LAYOUT
LOCATIONS
B. BATTERY MOUNTED FUSE BOX
Battery mounted fuse box (Diesel)
Fuse
No.
Function
Fuse
Rating
PF1
STARTERMOTOR 200 A
PF2
ALTERNATOR
150 A
1. PF2 ALTERNATOR
2. PF1 STARTER MOTOR
WARNING:
If fuse box cover is removed for any reason, it
should be refitted properly in its original position.
