harness
3
Are there any pins backed out from the EMS ECU
Connector
Rectify/Replace
Connectors
Go to Next Step
4
Check whether any of the Outlet DPF Temperature sensor
(K047, K050) are short-circuited to Battery / Ground.
Rectify the wiring
Harness
Connections
Go to Next Step.
5
Dis-connect Outlet DPF temperature sensor from vehicle
and check as below. At 25 degrees of ambient
temperature, measure the resistance across the sensor, it
shall be ~ 220 Ohms.
Go to next step
Call Hotline for
assistance in
deciding whether
Outlet DPF Sensor
has to be replaced.
6
Fault Persists.
Call Hotline for
assistance in
deciding whether
Outlet DPF Sensor
has to be replaced.
Go to next step
7
Fault persists
Call Hotline
Repeat the above
steps for re-
confirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.

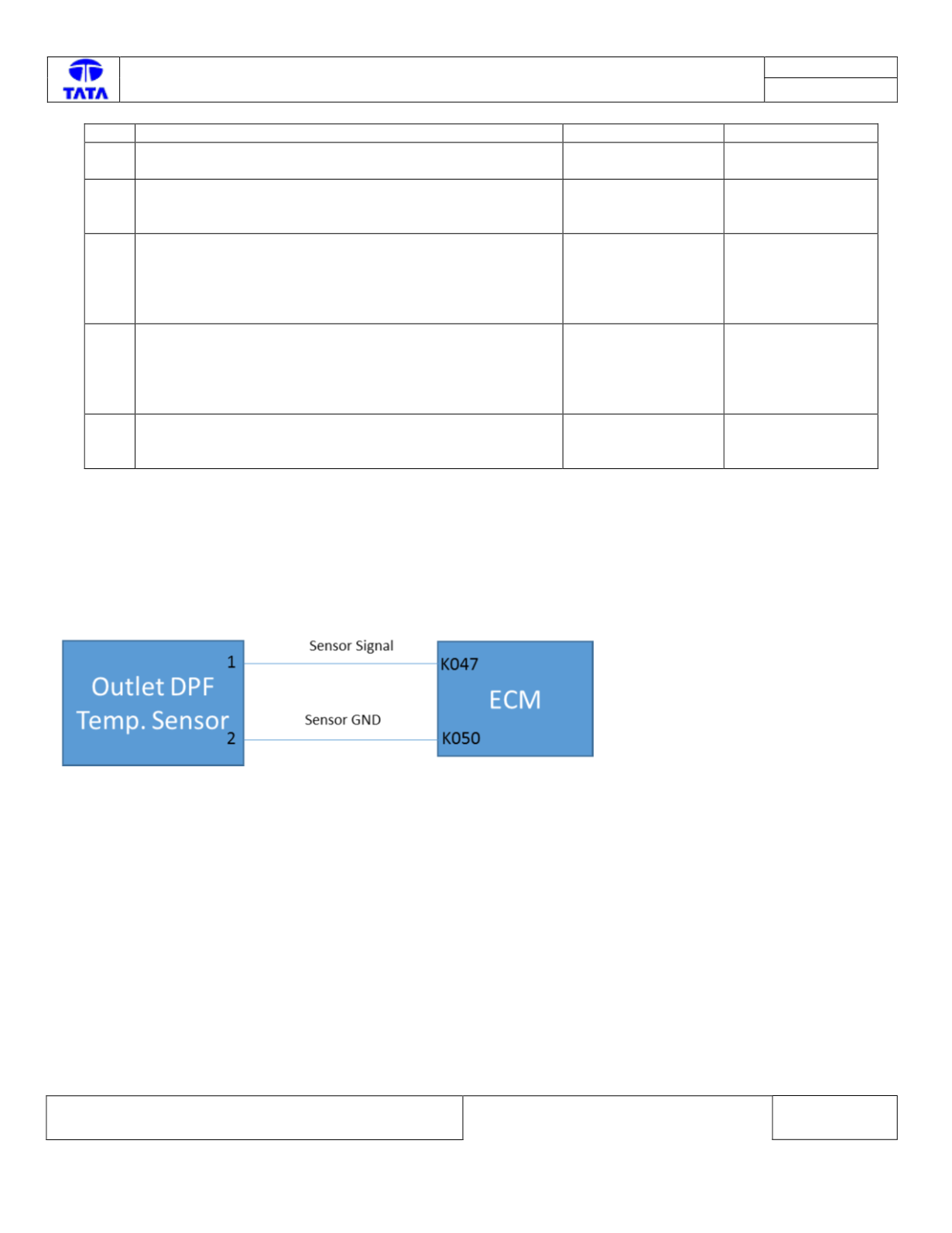

Circuit Schematic:
