Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 45 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
EMS ECU

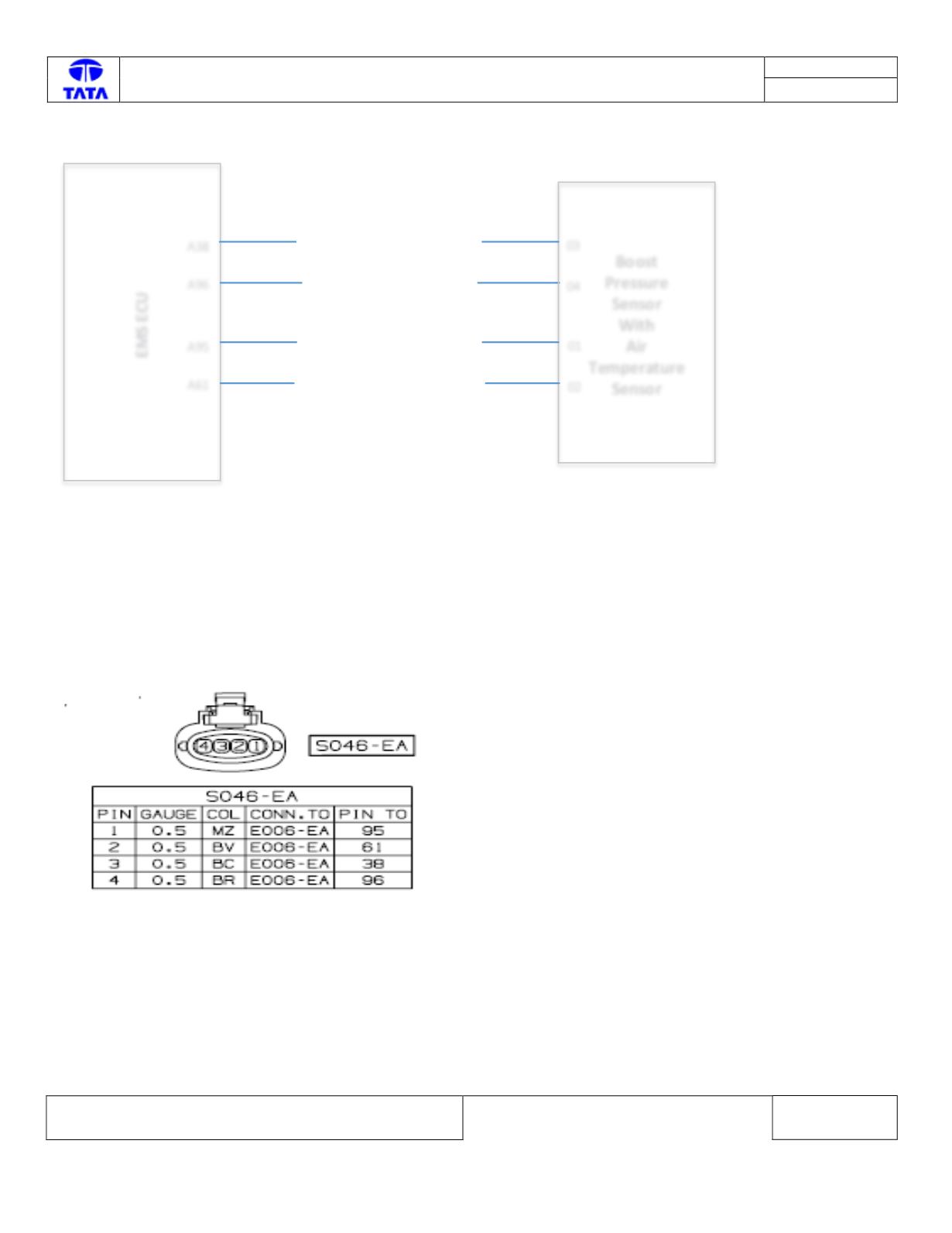

Boost Pressure Sensor 1 Signal
A96
Boost
Pressure
Sensor
With
Air
Temperature
Sensor
04
Boost Pressure Sensor 1 Supply/
Analog Swirl Sensor Supply
A38
03
Boost Temperature Sensor Signal
A61
02
Boost Pressure Sensor 1 Ground
01
A95
Component Location & Image:-
NA
Connector View & Information: -
