Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 715 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Step Checks
IF YES
IF NO
1
Check whether the EGR valve is leaking into intake
manifold
Rectify the leakage
Go to Next step
2
Check whether the intercooler is operating fine (with its
specified efficiency)
Rectify if possible.
Else call hotline for
assistance
Go to next step
3
Check if Engine overheat is observed.
Check coolant level
and if found low, fill
coolant
Check for cooling
fan related faults. If
found, rectify them.
Go to next step
4
Check whether any faults related to MAF sensor are found
Rectify them by
following their
rectification
procedure
Go to Next step
5
Check WH continuity between HP EGR valve and EMS
ECU as per the schematic. Any dis-continuity found?
Rectify the WH
connections
Go to Next step
6
Fault Persists.
Call Hotline
Repeat the above
steps for re-
confirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.

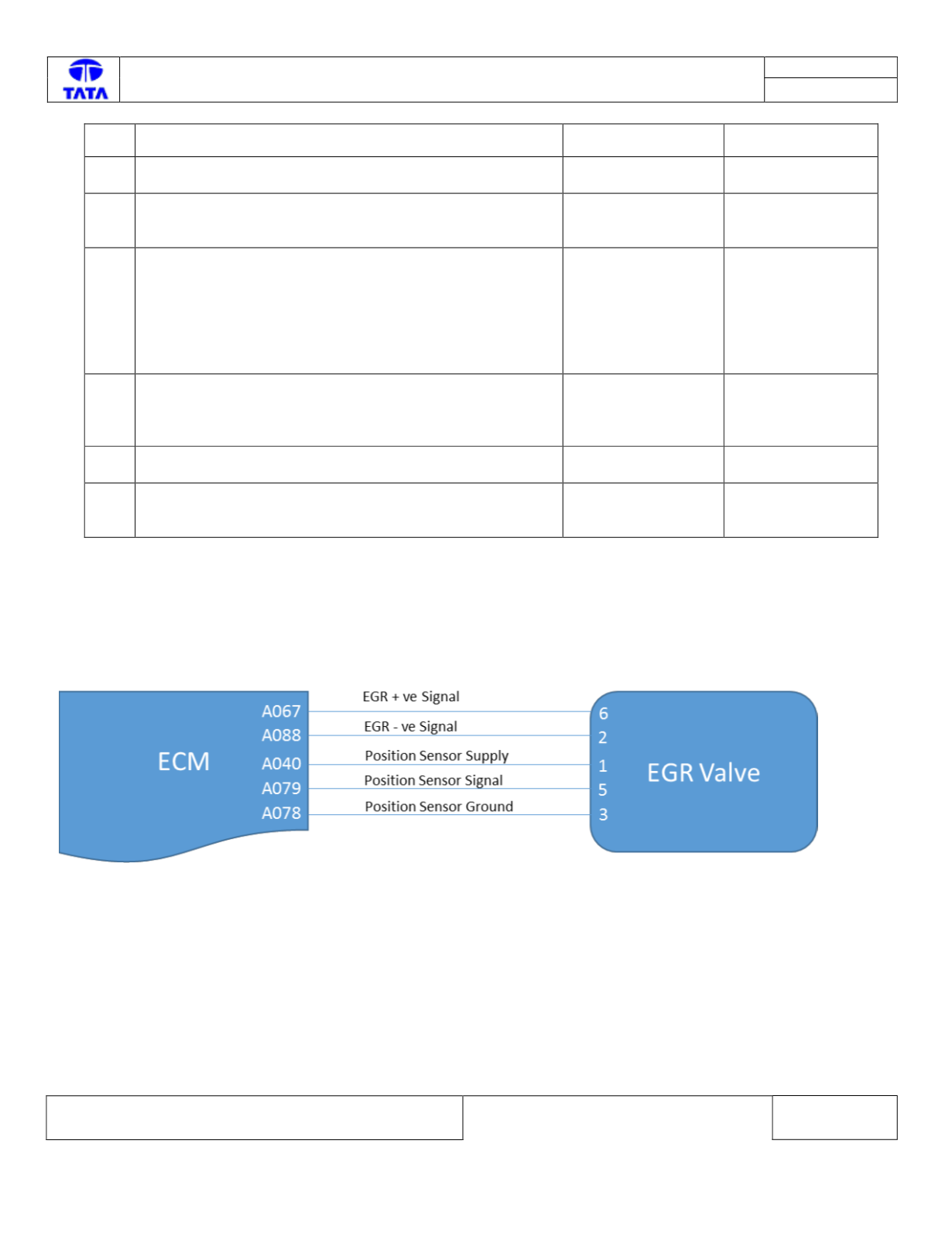

Circuit Schematic:
