connections as per
the circuit
schematic
3
Are there any pins damaged at EMS ECU Connector or
Accelerator Pedal Sensor connector?
Replace the
connector or wiring
harness
Go to next step
4
Are there any pins backed out from the EMS ECU
Connector or Accelerator Pedal sensor connector?
Rectify/Replace
Connectors
Go to next step
5
Accelerator Pedal moving freely?
Go to next step
Perform necessary
mechanical repairs
6
Fault Persists?
Call Hot line.
Follow the steps
again for
reconfirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.

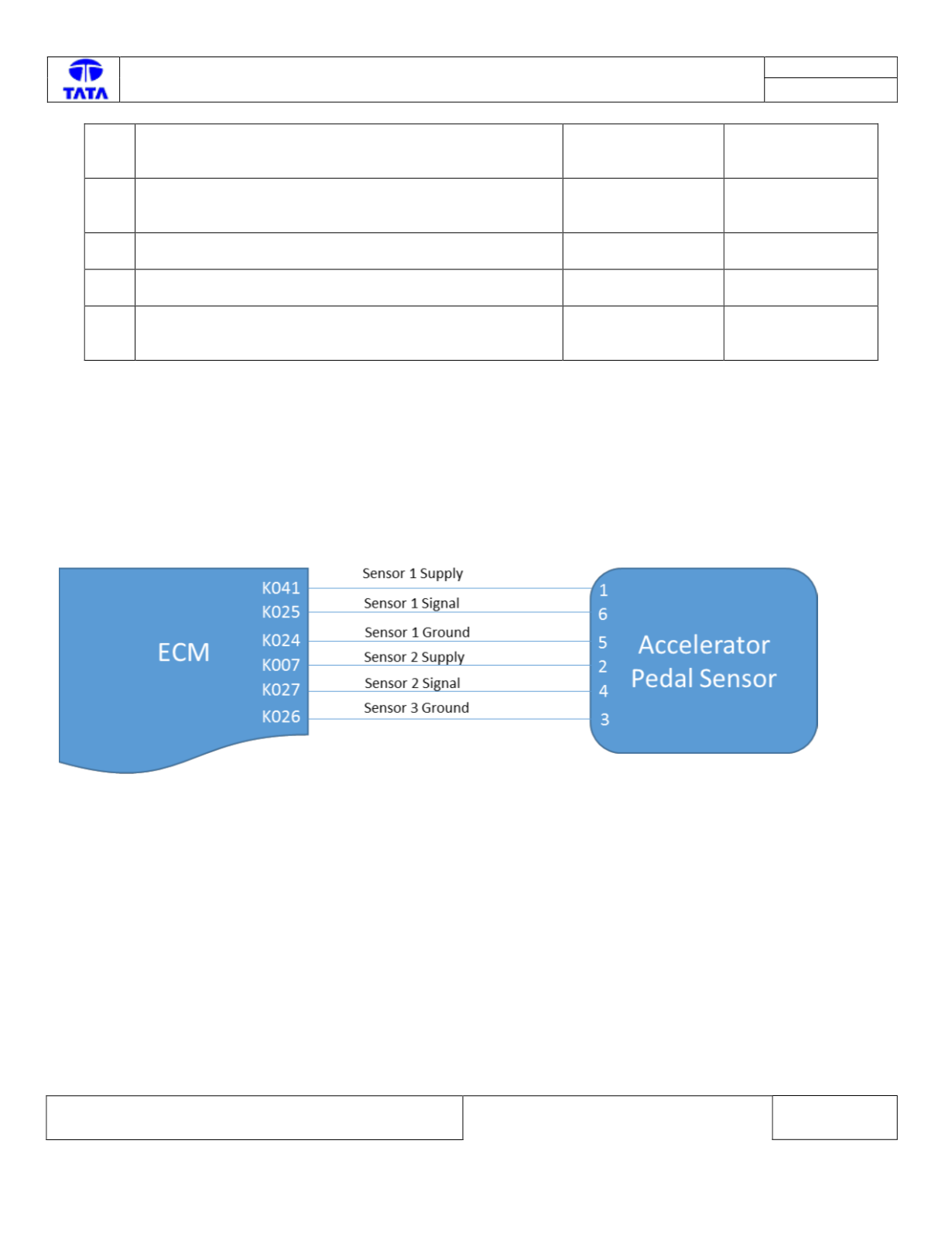

Circuit Schematic:
