SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 364 of 549
BCM ECU pin details:-
Description
BCM ECU pin No.
CAN_H chassis
A48
CAN_L chassis
A49
Battery
C1,C2 and E1
Ignition input
A9
Battery ground
A34, A47 and B26

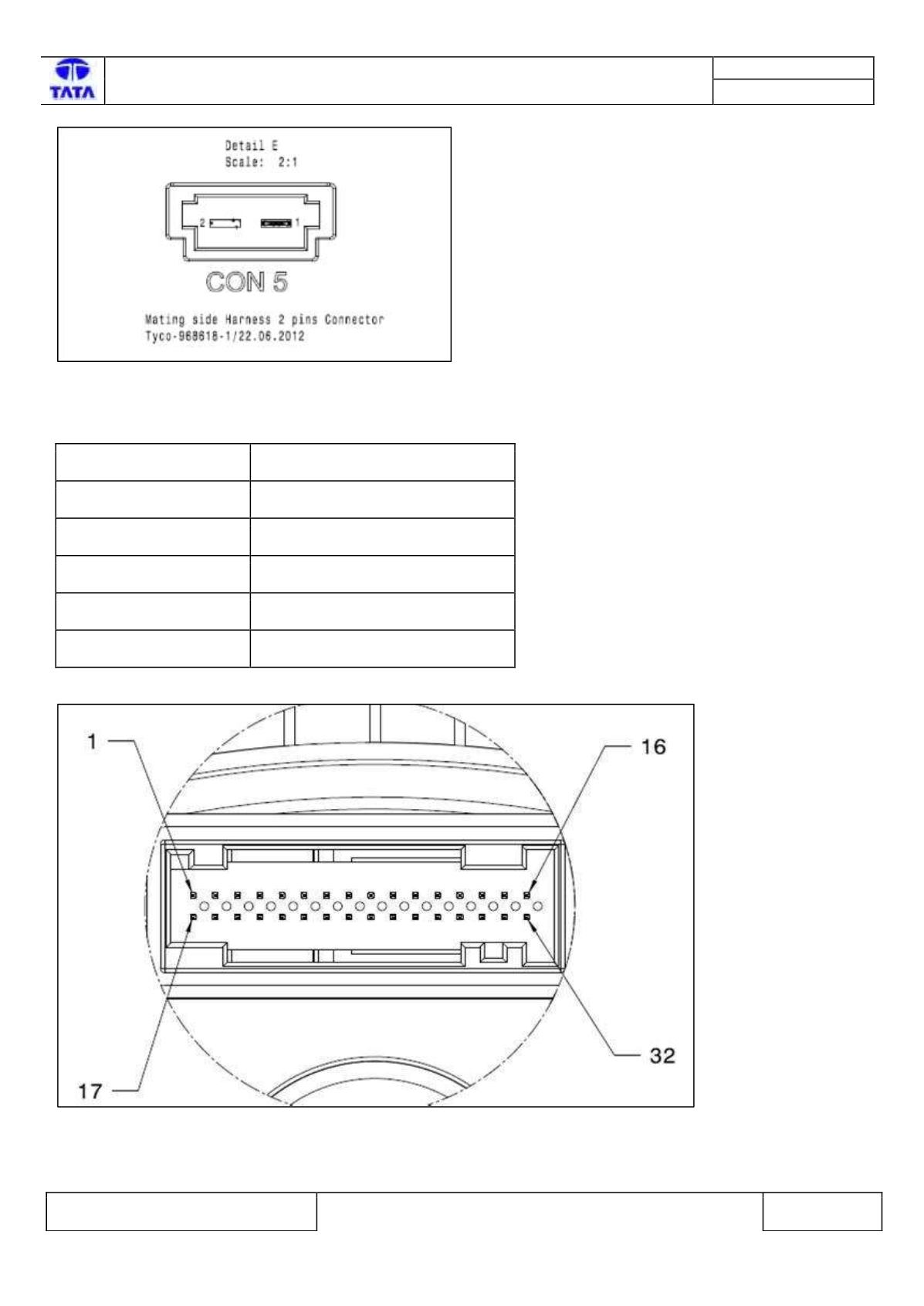

Fig :329 IPC ECU side connector diagram
-
Fig:-
328 BCM Connector E ECU side pin out
