SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 362 of 549

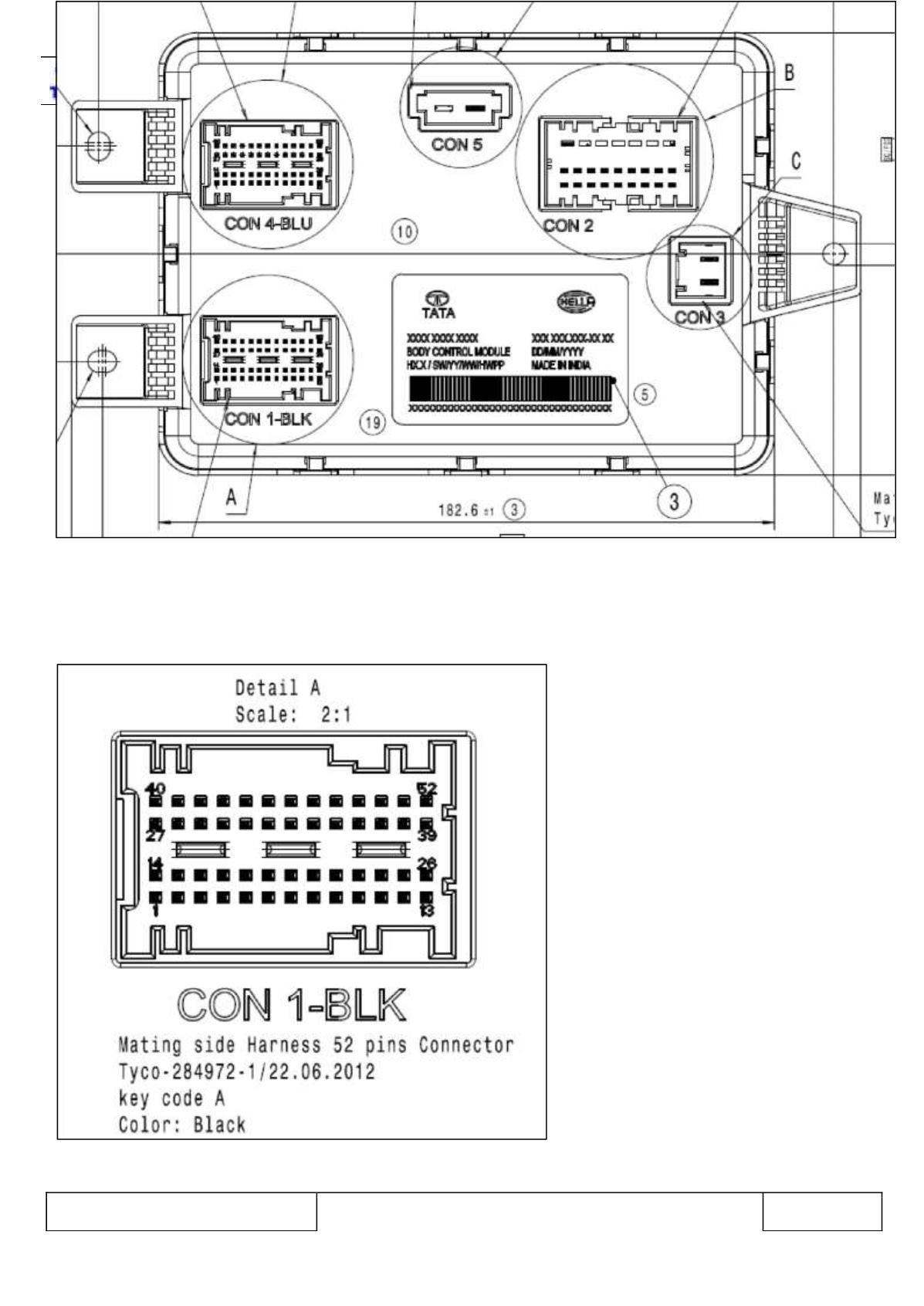

Fig324:- BCM connector ECU side layout

Fig:-

325 BCM Connector A ECU side pin out
