SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 365 of 549
IPC ECU Pin assignment:-
Description
IPC ECU Pin No.
CAN_H chassis
6
CAN_L chassis
5
Battery
1
Ignition input
22
Battery ground
24
SRS (Airbag/RCM) ECU Chamber Coding & color are:
Chamber
Coding
Color
Chamber A
D
Blue
Chamber B
C
Brown

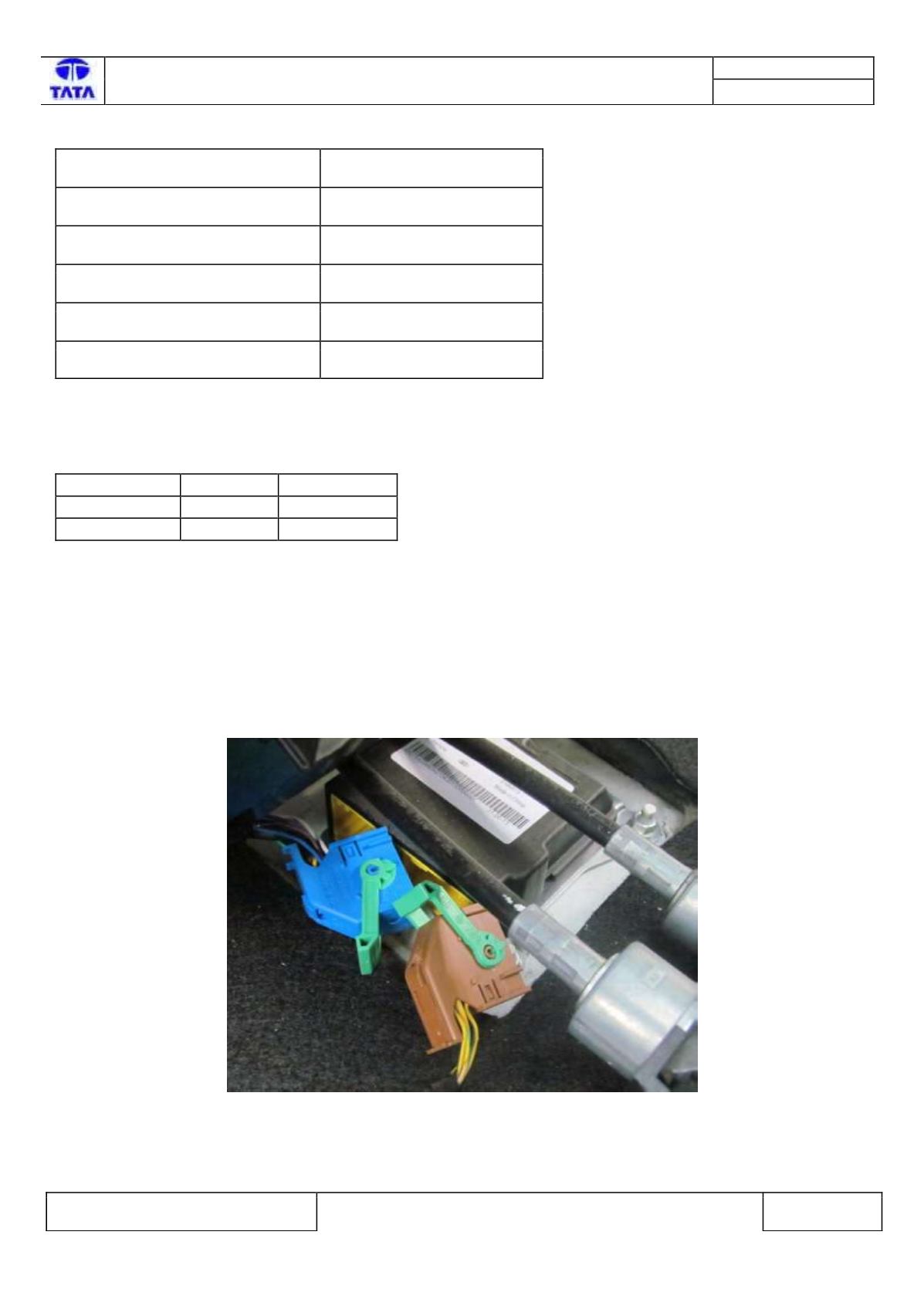

SRS ECU Connector View & Information:-
Fig330:- Airbag Wiring Harness connector view.
